RF 2.4GHz Spi LED Controller IP20 RGB Controller with 5 Warranty Years Ce RoHS

RF 2.4GHz Spi LED Controller IP20 RGB Controller with 5 Warranty Years Ce RoHS
Price: US $ 1-2/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: LC-0RGB-D4-19
Max. Current: 9A
Control Color Type: RGB
Max.Power: 45W/108W/216W(5V/12V/24V)
RF Frequency: 2.4 GHz
Receiving Sensitivity: -96dBm
Working Temperature Range: -30 ºC-55ºC
Waterproof Grade: IP20
Product Name: RGB Controller
Application: Control RGB LED Strip, RGB Luminaires....
Signal Transmission: RF Remote Control
Certification: CE
Universal: Universal
Transmission Distance: >100m
Type: Touch Slide Ring Control
Voltage: 5-24V DC

Product Description

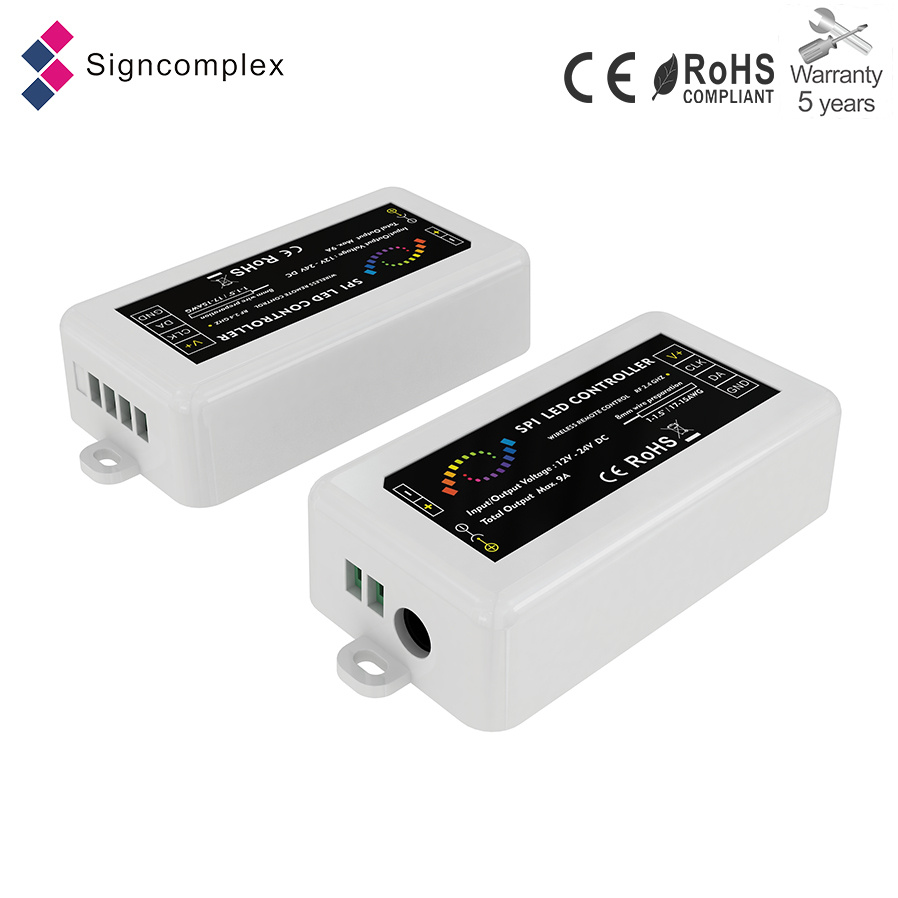

RF 2.4GHz SPI led controller IP20 rgb controller with 5 warranty years CE RoHS

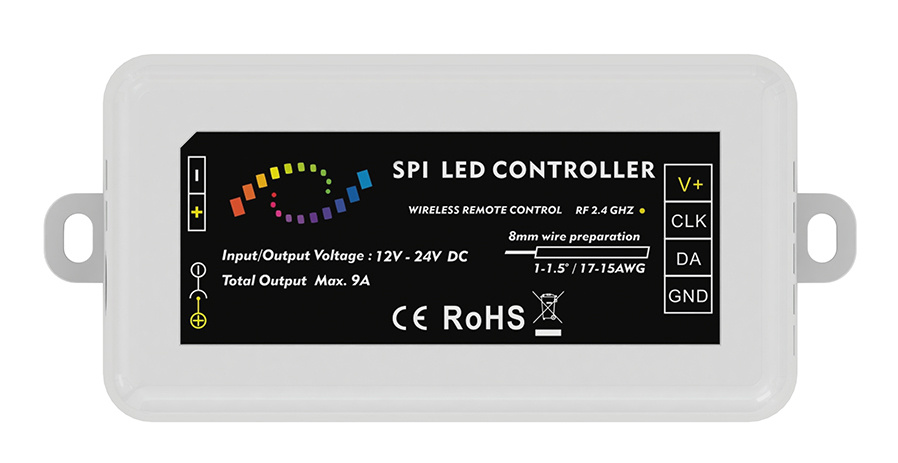

2.4G SPI LED Controller

LC-0RGB-D4-19


Description:

The MINI multicolor LED controller is suitable for RGB multicolor LED strip.Via the controller, color
change effect can be controlled;pixel quantity, can be set; speed and brightness can be adjusted.


 Features:

1.Max. control distance of control ler can be up to100m(in open condition);
2.Memory function after power off;
3.One remote control ler can control multiple controllers.


Technical parameters:

1.Working voltage:5-24V DC9. 60 Change modes
2.Max. current:9A10. Working environment:indoor
3.Max.power:45W/108W/216W(5V/12V/24V)11.Waterproof grade: IP20
4.Control type :RGB multicolor LED strip12.Working temperature range:-30 ºC-55ºC
5.RF frequency:2.4 GHz13.Product dimension:L99.5*W45*H22.5mm
6. Receiving sensitivity:-96dBm14.Packing dimension:L107*W52*H35mm
7.Transmitted power: 6dBM15.Weight(gross weight):about 105 gram
8. Remote-control led distance:100m(in open air )

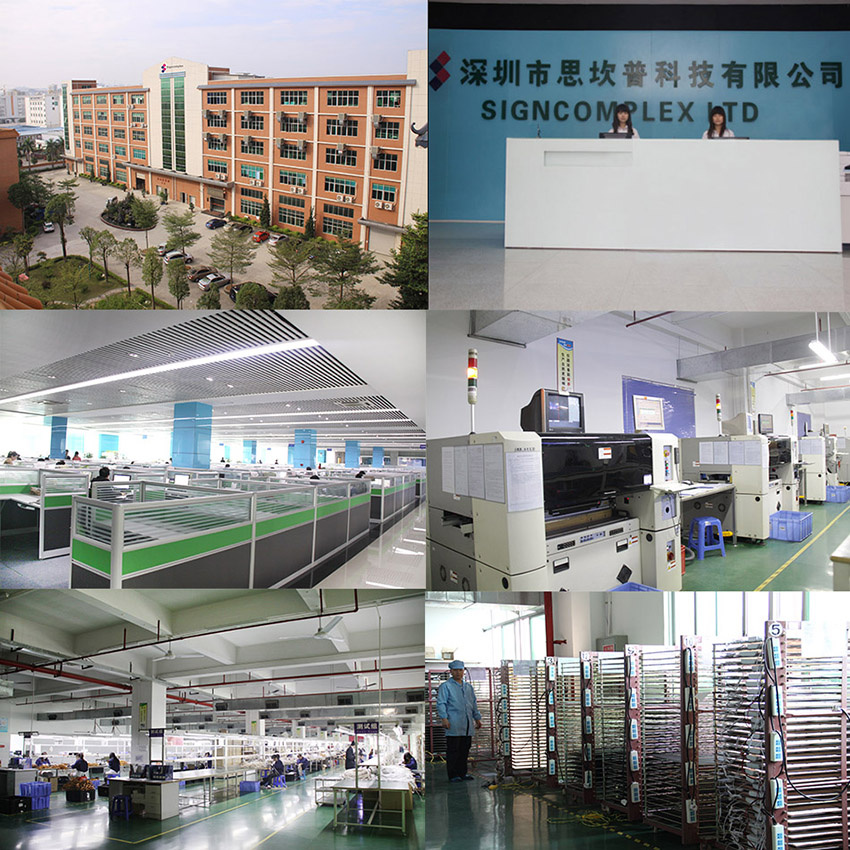

Company pictures:

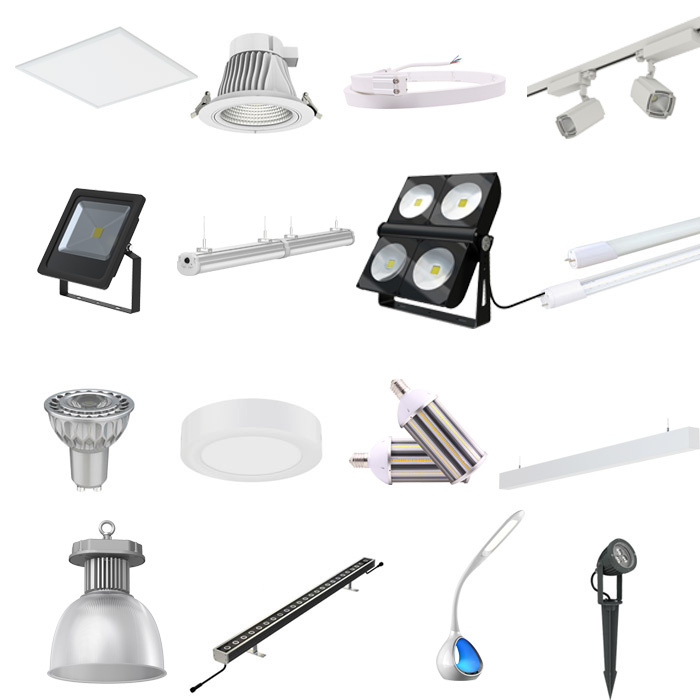

Main Products:


Trade shows:


Certification:
Signcomplex Ltd., founded in 2006, is a state-level high-tech enterprise and TUV ISO 9001: 2015 certified and registered company. Currently there are over 1000 employees, and a fabrication area of more than 40, 000 square meters. Our company has advanced LED luminaire manufacturing facilities such as auto soldering and SMT machines, electrical testing device such as integrating spheres and distribution photometer, and an independent EMI laboratory as well. We also have a professionally trained QC team to ensure the quality of all the products. And all the products are CE certified as well as RoHS compliant. Signcomplex enjoys a high reputation as a LED luminaire supplier throughout Europe and the US.

Signcomplex devotes itself to developing new products with state-of-the-art technologies. Our 50 people R&D team has abundant experience in industrial design, electronic driver, heat simulation analysis, optical lens design, light control system. Most of our products are self-designed with private moulds. We have more than 40 patents of shape design, utility model patents and software copyright. We monthly develop more than 2 new products and 10 customized products. All our designs fully follow UL and EU electrical safety standards. A customized design can be provided in 3 days tailored to customer's request.

Excellent Signcomplex LED luminaires have already provided inspiration for thousands of designers, architects and engineers all over the world. With our customer, we actively explore the ideas in architectural, residential, commercial, industrial lighting and special auxiliary lighting. We have already helped offering lots of LED lighting solutions to many famous brands, e. g., Marlboro, L'OREAL, Hilton, Four Seasons, Coca-Cola, McDonald's, Armani, The Body Shop, H&M, Cartier and Nissan, etc.

Our excellent sales and after-sales team are always at your service and will take good care of you, our valued customer.
