China 2.4G Synchronous Wireless RGB LED Controller Remote with Ce RoHS FC

Name: China 2.4G Synchronous Wireless RGB LED Controller Remote with Ce RoHS FC
Brand: all-electronics-online.com
SKU: 790022835
Availability: InStock
Rating: 4.6 (102 reviews)

Price:	US $ 28-35/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC-0RGB-D4-16
Max. Current:	3A(Single Channel) 9A in Total
Control Color Type:	RGB
Receiveing Sensitivity:	-96dBm
Color Mode:	52 Kinds
Waterproof Grade:	IP20
Working Temperature Range:	-30 ºC-55ºC
Product Name:	Wireless RGB LED Controller
Keyword:	2.4G Wireless Controller
Dimension:	L99.5W45H22.5mm
Gross Weight:	105 Gram
Application:	Control RGB LED Strip, RGB Luminaires....
Signal Transmission:	RF Remote Control
Certification:	FC
Universal:	Universal
Transmission Distance:	>100m
Type:	Touch Slide Ring Control
Voltage:	12-24V

Product Description

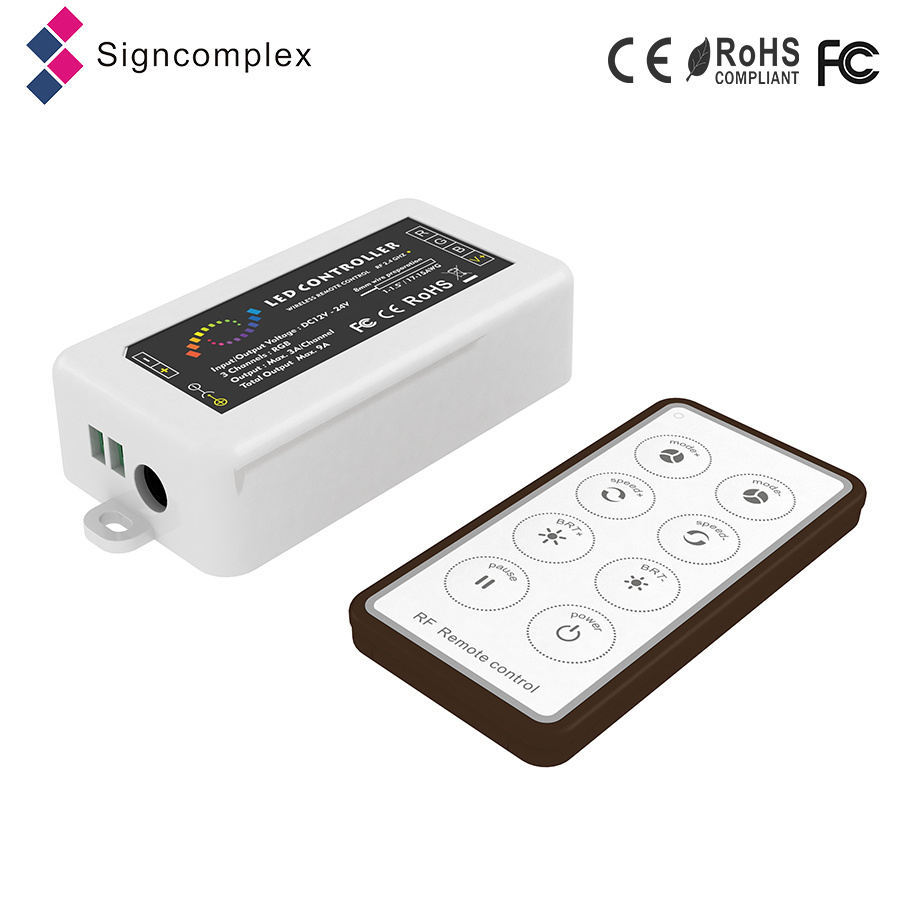

China 2.4G Synchronous Wireless RGB LED Controller Remote with Ce RoHS FC

2.4G RGB CONTROLLER
LC-0RGB-D4-16

Description:

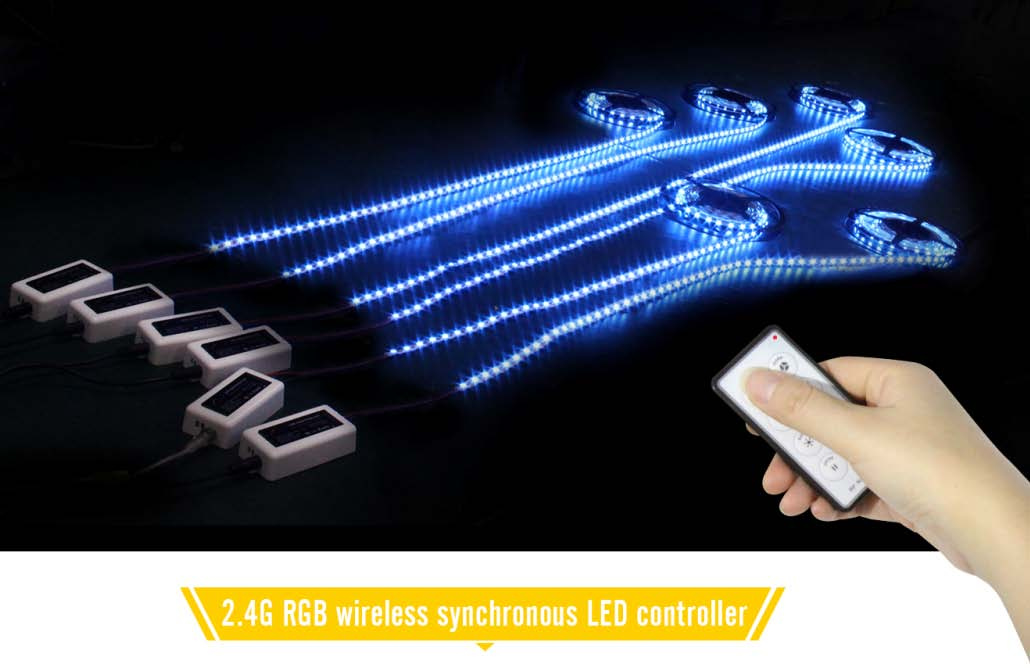

The controller adopt high performance processor,and control RGB LED strip,RGB luminaires via 2,4 G wireless remote controller. User can choose color, mode and change speed via 2,4G remote control ler. The control ler features dimming, pause when change, dimmable and other functions (52 color modes, touch slidering control), and it also has synchronizing function,the color effect between multiple units can be synchronous.

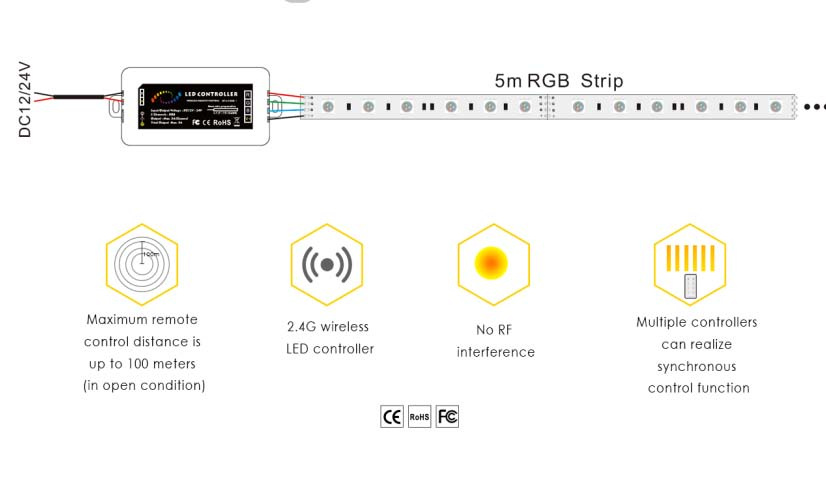

Features:
1.Max. control distance of control ler can be up to 100m(in open condition);
2.Each remote controller can control multiple control lers, and it has synchronous function.

Technical parameters:
1. Working voltage: 12~24V ±5%;
2. Max. current: 3A(single channel) 9A in total;
3.Control color type: RGB;
4. Receiveing sensitivity :-96dBm;
5.Transmitting power:6dBm;
6.Color mode:52 kinds;
7.Work environment:indoor;
8. Waterproof grade: IP20;
9.Working temperature range: -30 ºC-55ºC;
10.Product dimension: L99.5*W45*H22.5mm;
11.Packing dimension:L107*W52*H35mm
12.Weight(gross weight): about 105 gram.

Company pictures:

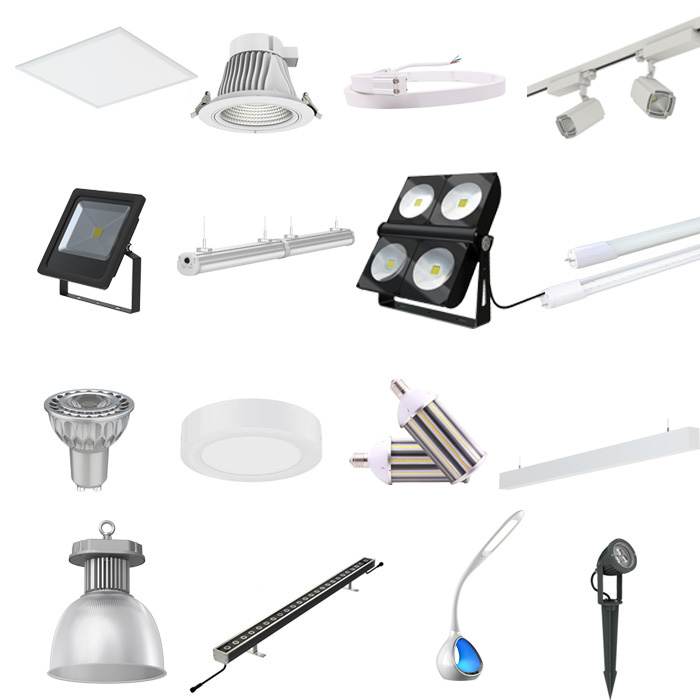

Main Products:

Trade shows:

Signcomplex Ltd., founded in 2006, is a state-level high-tech enterprise and TUV ISO 9001: 2015 certified and registered company. Currently there are over 1000 employees, and a fabrication area of more than 40, 000 square meters. Our company has advanced LED luminaire manufacturing facilities such as auto soldering and SMT machines, electrical testing device such as integrating spheres and distribution photometer, and an independent EMI laboratory as well. We also have a professionally trained QC team to ensure the quality of all the products. And all the products are CE certified as well as RoHS compliant. Signcomplex enjoys a high reputation as a LED luminaire supplier throughout Europe and the US.

Signcomplex devotes itself to developing new products with state-of-the-art technologies. Our 50 people R&D team has abundant experience in industrial design, electronic driver, heat simulation analysis, optical lens design, light control system. Most of our products are self-designed with private moulds. We have more than 40 patents of shape design, utility model patents and software copyright. We monthly develop more than 2 new products and 10 customized products. All our designs fully follow UL and EU electrical safety standards. A customized design can be provided in 3 days tailored to customer's request.

Excellent Signcomplex LED luminaires have already provided inspiration for thousands of designers, architects and engineers all over the world. With our customer, we actively explore the ideas in architectural, residential, commercial, industrial lighting and special auxiliary lighting. We have already helped offering lots of LED lighting solutions to many famous brands, e. g., Marlboro, L'OREAL, Hilton, Four Seasons, Coca-Cola, McDonald's, Armani, The Body Shop, H&M, Cartier and Nissan, etc.

Our excellent sales and after-sales team are always at your service and will take good care of you, our valued customer.
