Non-Contact Rotating Transformer Angular Sensor

Name: Non-Contact Rotating Transformer Angular Sensor
Brand: all-electronics-online.com
SKU: 734508502
Availability: InStock
Rating: 4.7 (113 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HB3809
Accuracy Grade:	0.2%F.S , 0.5%F.S

Product Description

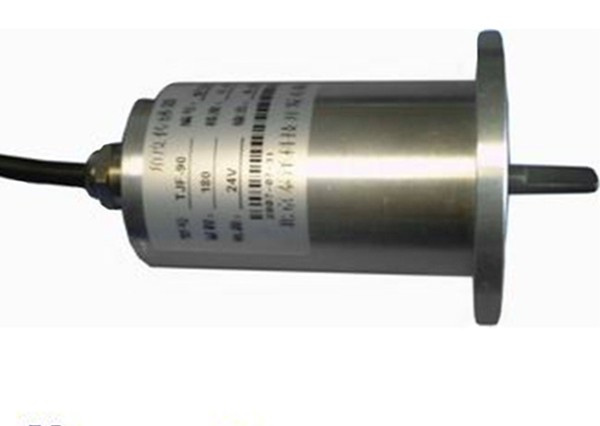

HB3809 angular sensor adopted the principle of non-contact rotating transformer, the sensing element composed with a magnetic core and a spiral tube coil, which can convert the mechanical rotation or the angular displacement into an electrical signal output, it's measurement range could up to 0-360°. This product could offer various of output such like voltage, current, computer interface signal, etc. It has the features of high accuracy, good stability, high reliability, wide application, easy installation and use, etc., could widely applied in automotive, robotics, aviation equipment, ships, machinery, agriculture, construction, and other fields that request angular measurement.

Specification

Range	0°-360°(±180°)
Linearity Error	0.2%F.S , 0.5%F.S
Power Supply	0-5V,0-12V,±12V-±15V
Output	1-5V, 4-20mA
Working Temperature	-20ºC - 80ºC, -55ºC - 125ºC
Anti Vibration	35 g (11ms)
Protection	IP67

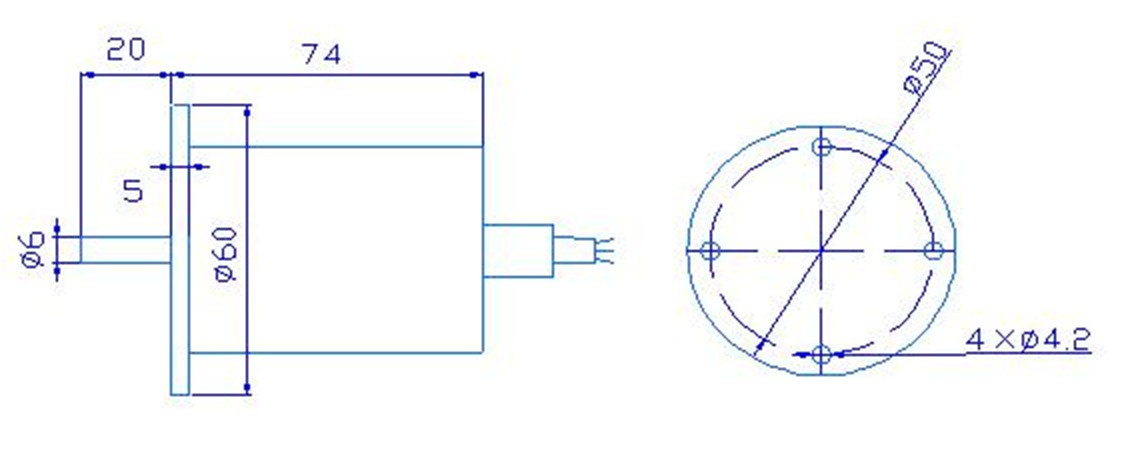

Dimension and Connection

Order Code

HB3809	Angular sensor
	Code	Range
	30A	±30°
	60B	60°
	45A	±45°
	90B	±90°
	60A	±60°
	120B	120°
	90A	±90°)
	180B	180°
	120A	±120°
	240B	240°
	180A	±180°
	360B	360°
		Code	Linearity
		A	0.05%
		B	0.1%
		C	0.2%
		D	0.3%
		E	0.5%
		F	1%
			Code	Power Supply
			05	5V
			10	10V
			12	12V
			24	24V
			12S	±12V
			15S	±15V
				Code	Signal Output
				V1	0.5~4.5V
				V2	1~8V
				A	4~20mA
					Code	Working Temperature
					T1	-20~85ºC
					T2	-50~125ºC

Order Code Sample

HB3809-120B-E-12-V2-T1

Introduction:HB3809-120B-E-12-V2 model, the range is 120°, linearity is 0.2%, power supply is 12V, output is 1~8V, working temperature -20~85ºC.
*Note:The dimension, power voltage, output signal, anti-vibration, anti-corrosion, salt spray resistance, steady state under heat and humidity, underwater immersion for customized.
