| Prod Model: |
DF-0002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Fiber Optical Media Converter |
| Fiber Type: |
Single or Multi |
| Video Interface: |
BNC |
| Case Color: |
Grey,Black or Customized |
| Sm Transmission: |
20/40/60/80/120 Km |
| Storage Temperature: |
Range From -40 to +85 |
| In/out Put Voltage: |
DC 5-12V or AC 6-12V 50/60Hz (Optional) |
| Samples: |
Availiable |
| Warranty: |
2 Years |
| Usage: |
Laptop |
| Certification: |
GS |
| Condition: |
New |
| Type: |
Integrated Wiring |
| Support Network: |
All |
| Information Content: |
Data+Voice |
Product Description

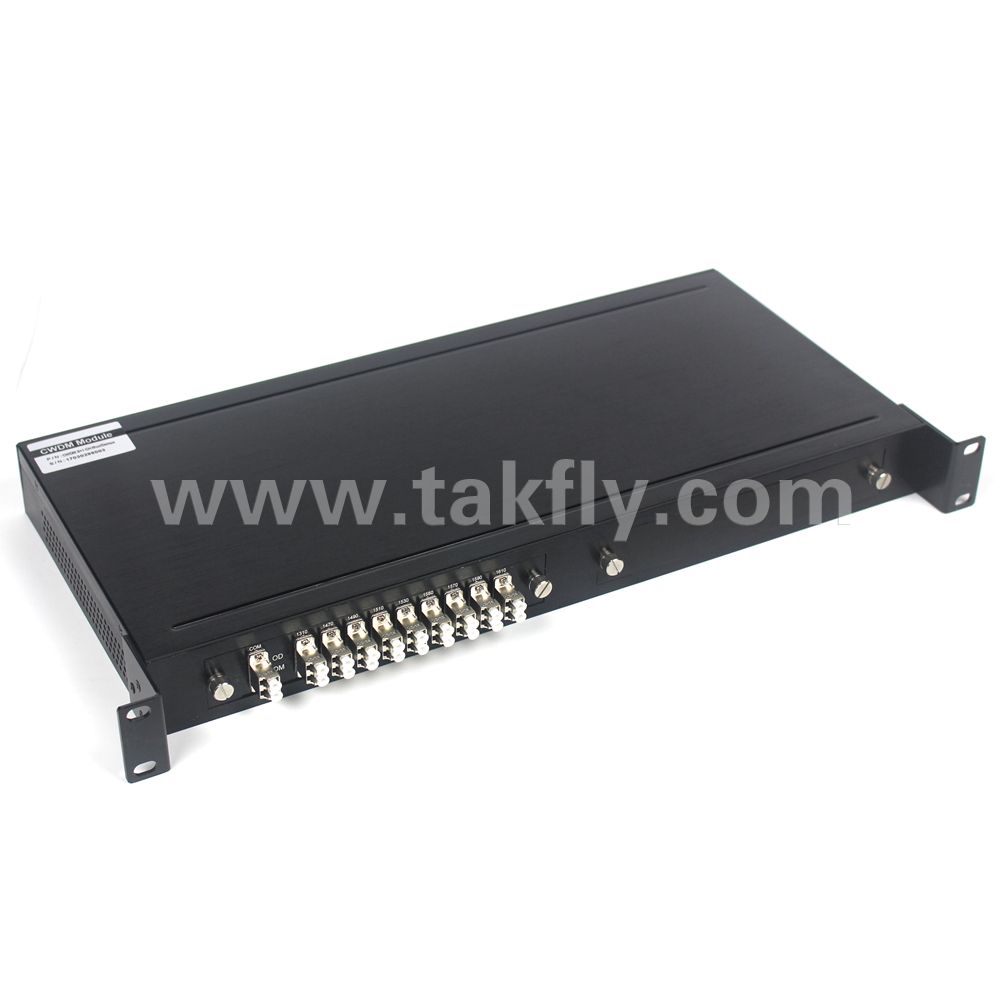

Optical Transceivers 10G CWDM SFP+ XFP X2 XENPAK 10G CWDM Module
Description:
Fiber Optical Converter is 10/100/1000Mbps fast Ethernet converter. The converter mediates between a 10/100/1000Base-TX segment and a 1000Base-FX segment. It is primarily designed for large, higher speed/bandwidth demanding work groups that require expansion of the Ethernet network. It can extend the conventional 100M Ethernet or 100/1000M Fast Ethernet to 20Km-120Km via the fast Ethernet Fiber-optical Line. It is high performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network.
Features:
. Provide one fiber connector and one UTP connector
· Fully complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.2ab 1000Base-TX, IEEE802.3z 1000Base-FX standard
· Auto-detection of half/full duplex transfer mode for TX port
· Auto-negotiation of 10/100/1000Mbpa rate and Auto-MDI/MDIX for TX port
· Provide switch configuration of half/full duplex transfer mode for FX port
· Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
· Indication light TP/ACT, FX/ACT, FDX, 1000, 100 POW
· Easy view LED indicators provides status to easily monitor network activity Internal power supply
Specification:
Band WidthRJ 45 Port: 10/100/100MbpsOptical Port: 1.25Gbps
Standard ProtocolIEEE802.3 1000 Base-T standard
IEEE802.3u 10/100/1000Base-SX/TX standard
IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
IEEE 802.3z standard.
IEEE 802.3ab standard.
ConnectorsUTP RJ-45SC/ST/FC Fiber connector
Operation ModeFull /Half duplex mode
Power SupplyExternal5V DC 2A
InternaAC 100-250V/50~60Hz
DC -36~-72V
Power Consumption≤ 5W
LED IndicatorsPOW, FDX, TXLink / ACT, SPD, FXLink / ACT, FDX
Environmental Work Temperature0° C~50° C
ParametersStorage Temperature-40° C~70° C
Humidity5%~90% non-condensing
TP CableCat5 UTP cable
Fiber-optic cable50 / 125μ M or 62.5 / 125μ M multi-mode fiber cable, up to 220 / 550m9 / 125μ M single-mode cable, provides long distance for 20 /40/ 60/ 80/120km
Dimensions(mm)External power supply94mm*70mm*25mm
Internal power supply140mm*110mm*30mm
Socket Card157mm*128mm*31mm
MTBF (Hours)Over 50000
Emission/SafetyFCC Part 15, Class A, Rhos and CE Mark
| Band Width | RJ 45 Port:10/100/100Mbps | Optical Port: 1.25Gbps |
| Standard Protocol | IEEE802.3 1000 Base-T standard |
| IEEE802.3u 10/100/1000Base-SX/TX standard |
| IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| IEEE 802.3z standard. |
| IEEE 802.3ab standard. |
| Connectors | UTP RJ-45 | SC/ST/FC Fiber connector |
| Operation Mode | Full /Half duplex mode |
| Power Supply | External | 5V DC 2A |
| Interna | AC 100-250V/50~60Hz |
| DC -36~-72V |
| Power Consumption | ≤5W |
| LED Indicators | POW, FDX, TXLink / ACT, SPD, FXLink / ACT, FDX |
| Environmental | Work Temperature | 0°C~50°C |
| Parameters | Storage Temperature | -40°C~70°C |
| | Humidity | 5%~90% non-condensing |
| TP Cable | Cat5 UTP cable |
| Fiber-optic cable | 50 / 125μm or 62.5 / 125μm multi-mode fiber cable, up to 220 / 550m | 9 / 125μm single-mode cable, provides long distance for 20 /40/ 60/ 80/120km |
| Dimensions(mm) | External power supply | 94mm*70mm*25mm |
| Internal power supply | 140mm*110mm*30mm |
| Socket Card | 157mm*128mm*31mm |
| MTBF (Hours) | Over 50000 |
| Emission/Safety | FCC Part 15 , Class A, Rhos and CE Mark |
