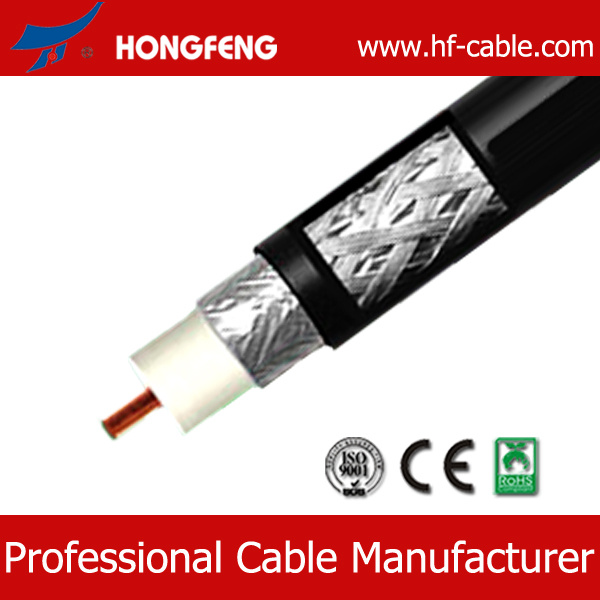

Outside 75 Ohm Trunk Cable Qr500 Tfc Coaxial Cable

Prod Model:	QR500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket:	12.6mm
Jacket Material:	PE
Impedance:	75 Ohm
Braid Shied Material:	Bc, Tc, CCA, CCS, Al-Mg(60%-95%)
Inner Conductor:	CCS, CCA, Cu
Inner Conductor Diameter:	1.63mm
Certificate:	ISO9001, Cl2/CATV/Cm UL
Dielectric:	7.11mm
Insulation Material:	Bonded/Non Bonded
Jacket Diameter:	10.03mm
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PE
Certification:	ETL
Type:	Coaxial Cable

Product Description

1. RG11 Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome

Such as: 1.63mm B. C Conductor; Foamed PE Dielectric; Bonded Al Foil& 64/0.12mm Al braid; 10.03PVC jacket white

2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request



Main products:
1) RG series Coaxial Cable: Rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg179, rg213, rg214, rg316, rg393, rg402, etc.;

2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, 3D-FB, 5D-FB, 8D-FB, 10D-FB, etc.;

3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;

4) TRUNK Cable: P3 412, 500, 540, 625, 750, 850;

5) LMR SERIES: LMR200, LMR400, LMR600;

6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;

7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable, RGB5CRG59, BT3002.

Coaxial Cable	Conductor	No. and  Nominal Diameter  of Strands#/mm	Sheathed	Nominal Overall Diameter(mm)
RG6	TCW(Tinned Copper Wire)	1/1.02	PVC	6.5
RG11	TCW	7/0.40	PVC	10.30
RG58	TCW	19/0.18	PVC	4.90
RG59	TCW	1/0.58	PVC	6.15



Attenuation Performance [@68 ° F. (20 ° C)]
Frequency(MHz)	Maximum (dB/100ft)	Maximum (dB/100m)
5	0.38	1.25
55	0.96	3.15
211	1.81	5.93
250	1.95	6.39
300	2.15	7.05
350	2.32	7.61
400	2.47	8.10
450	2.65	8.69
500	2.85	9.34
550	2.94	9.64
600	3.10	10.16
750	3.50	11.48
865	3.95	12.95
1000	4.23	13.87
