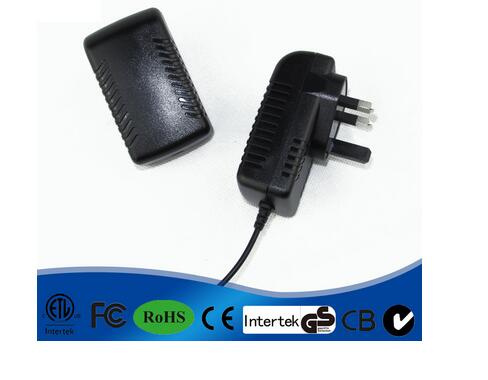

Plastic Case Power Supply DC12 Adapter

Prod Model:	HLT-PW24D12W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item No:	Hlt-Pw24D12W
Power:	24W
Input:	AC96-265V
Output:	DC12V
Size:	36*35.2*25cm
Quality Warranty:	2years
Input Rated Frequency:	50/60Hz
Operating Temperature Range:	0oc-40oc
Storage Temperature Range:	-20oc-85oc
Built-in Protection:	Short-Circuit, Over-Voltage, Over-Current
Usage:	Switching
Output Type:	DC
Connection:	Plug In
Type:	OEM ODM
Brand:	Honglet

Product Description

Product Description

Technical Data

Name	Plastic case power supply dc12 adapter
Type	wall mount
Color	Customizable
Input Rated Voltage	100VAC-240VAC
Input Voltage Range	90VAC-264VAC
Input Rated Frequency	50/60Hz
Input Current	2A
Output voltage range	5V-24V DC
Output current range	0.1A-4A
Output Voltage tolerance	±5%
Output power	36w max.
Efficiency Level	Comply with CEC efficiency level VI and ERP Stage II
No load power consumption	0.1W Max
Burn in	85-95% load, 40±5ºC,4hours
Leakage current	0.25mA max 254VAC
DC Plug Specification	Customizable
Operating Temperature Range	0ºC-40ºC
Storage Temperature Range	-20ºC-85ºC
MTBF	50,000 hours above

Terms of conditions:
1. Quotation based on FOB,CIF,CRF,EXW (Port of loading: Shenzhen or HK)
2. Payment term: T/T, L/C at sight, Western union, Money-gram. We can provide better payment term with our business growing.
3. Lead time: 25 days after all artwork confirmed

Our service:
OEM /ODM Service
With professional R&D and sales team, we provide OEM /ODM service with user-defined logo, packaging, tooling or other technical requirement.

After-sales Service
All products have at least 1 year warranty. Free replacement can be provided if there is no man-made defect.
Our team will give quick response and seek for satisfying solutions for any complains received.

Why Choose us:

1.Over 5 years of professional experience in product designing and manufacturer.
2. Professional R&D and sales team; Quick and efficient to inquiry or complaint.
3. Advance equipment for reliability test; 100% raw material testing; PCBA testing ;Aging testing;
4. High power efficiency which complies with CEC efficiency level VI and ERP Stage II, more energy saving and environmental protection.
