PLC Splitter Module for FTTH 1*2 PLC FC/Upc
| Price: |
US $ 5-6/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
PLC Splitter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connector: |
LC-LC,Sc-Sc,FC-FC |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
LC |
| Certification: |
CCC |
Product Description
PLC SplitterDescriptionPlanar lightwave circuit(PLC) splitter is a type of optical power management device that is fabricated using sillca optical wave-guide technology . It features small size, high reliablity, wide operating wavelength range and good channel-to-channel uniformity,and is widely used in PON networks to realize optical signal power splitting. Our company provides whole series of 1XN and 2XN splitter products that are tailored for specific applications. Features- Low Insertion Loss
- Low PDL
- Hgh Reliability and Stability
- Meet GR-1221 and GR-1209 standard
- Meet ROSH standard
Applications- FTTH
- Passive Optical Network
- Mobile, Telecom Network
- LAN & MAN
- CATV Links
- Test equipment
Performance Specifications:1×N PLC Splitter| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating Wavelength (nm) | 1260~1650 |
| Fiber Type | G657A1 or customer specified |
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.2/7.4 | 10.3/10.7 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 |
| Loss Uniformity (dB) | ≤0.4 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.5 |
| PDLdB) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.20 | ≤0.25 | ≤0.3 | ≤0.4 |
| Return Loss (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| Directivity (dB) Min | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.5 | ≤0.5 |
| Fiber Length (m) | 1.5(±0.1)or customer specified |
Temperature Stability
(-40~85 ºC)(dB) | ≤0.5 |
| Operating Temperature (ºC) | -40~80 |
| Storage Temperature (ºC) | -40~85 |
| Maximum Power Handling (mW) | 500 |
Performance Specifications:2×N PLC Splitter| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 |
| Operating Wavelength (nm) | 1260~1650 |
| Fiber Type | G657A1 or customer specified |
| Insertion Loss (dB)(P/S Grade) | 3.9/4/2 | 7.3/7.6 | 10.5/11 | 14.4/14.6 | 17.4/17.9 | 21.0/21.5 | 24.5/25.0 |
| Loss Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.2 | ≤2.5 |
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 |
| Return Loss (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| Directivity (dB) Min | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| Fiber Length (m) | 1.5(±0.1)or customer specified |
Temperature Stability
(-40~85 ºC)(dB) | ≤0.5 |
| Operating Temperature (ºC) | -40~80 |
| Storage Temperature (ºC) | -40~85 |
| Maximum Power Handling (mW) | 500 |
1.The above parameters were measured at room temperature, but not including connectors data.
2.Add an additional 0.2dB loss per connector,Return Loss≥55dB(APC),≥50dB(UPC). Ordering Information:| Port | Input Pigtail Style | Input Connector | Output Pigtail Style | Fiber Length | Output Connector | Package type |
0102=1x2
0104=1x4
0108=1x8
0116=1x16
0132=1x32
0164=1x64
1128=1x128
0204=2x4
0208=2x8
0216=2x16
0232=2x32
0264=2x64
2128=2x128 | 0=bare fiber
1=900um Loose tube
2=900um Jacket
3=2.0mm cable
4=3.0mm cable | 0=none
1=SC/PC
2=SC/APC
3=FC/PC
4=FC/APC
5=ST
6=LC
7=LC/APC
8=E2000
S=Special | 0=bare fiber
1=900um Loose tube
2=900um Jacket
3=2.0mm cable
4=3.0mm cable | 0=0.5m
1=1m
2=1.5m
3=2m
4=3m
5=4m
S=special | 0=none
1=SC/PC
2=SC/APC
3=FC/PC
4=FC/APC
5=ST/PC
6=LC/PC
7=LC/APC
8=E2000
S=Special | A=Bare

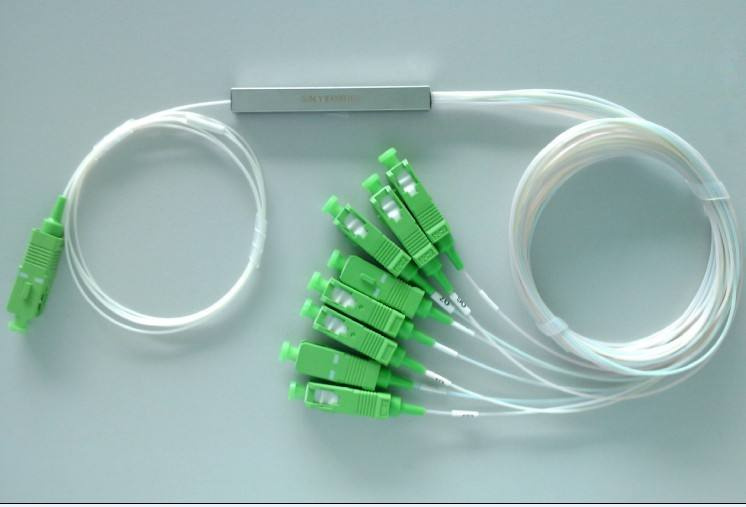

B=Minitype

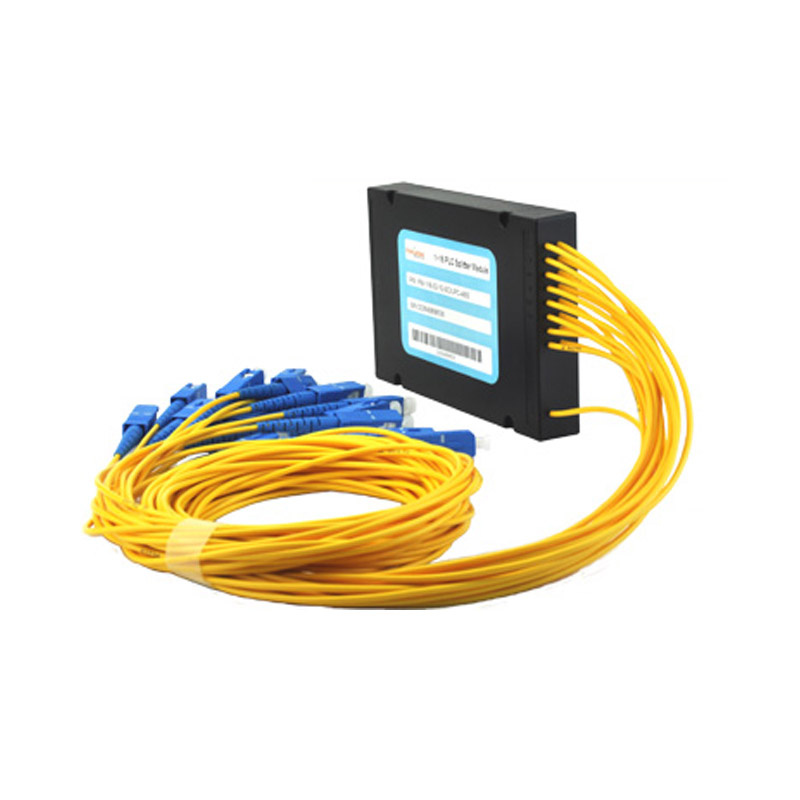

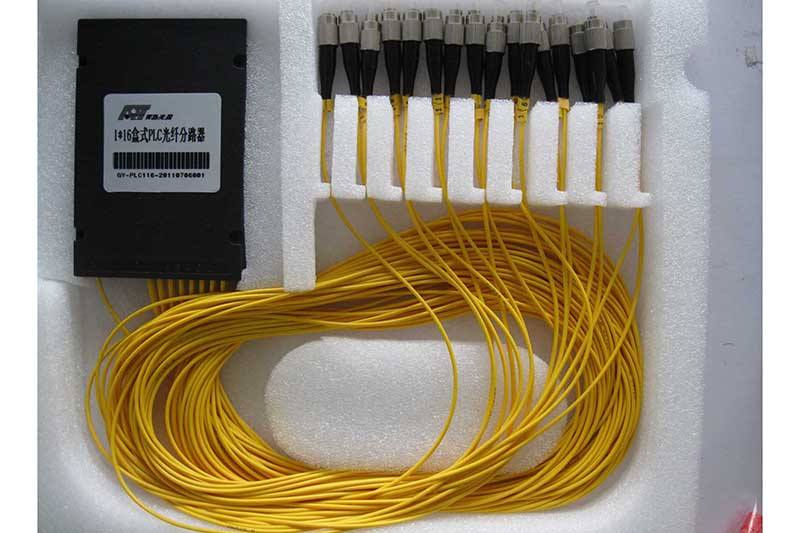

C=ABS box
D=Insert type
E=Pallet type

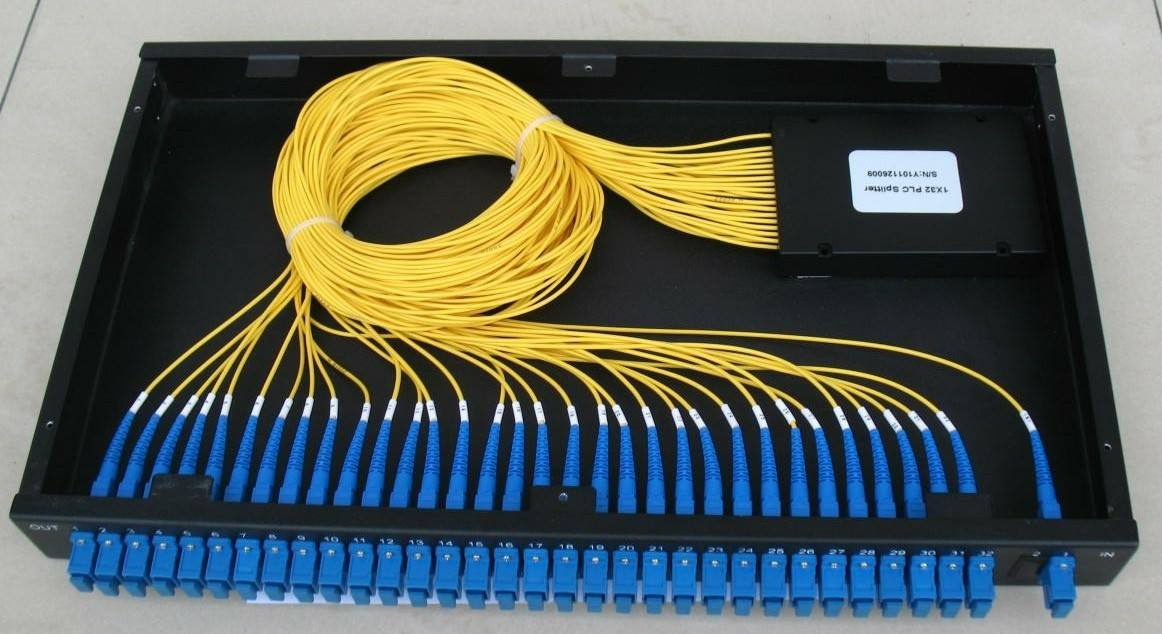

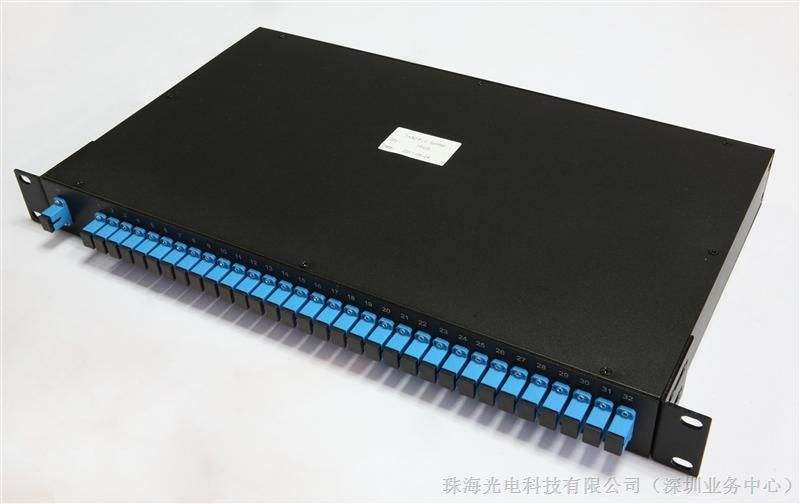

F=19'' 1U Rack
S=Special |
