| Prod Model: |
PLC Splitter |
| Model No: |
Tk-PLC-004 |
| Products Name: |
1X8 Sc/APC Card Insertion Type PLC Splitter |
| Connector: |
Sc/LC/FC/St |
| Cable Diameter: |
0.9/2.0/3.0mm |
| Operating Temperature: |
-40 ~ 85 |
| Applications: |
Gpon Epon FTTH |
| Mode Type: |
Sm G657 A1 or Customer Specified |
| Operation Wavelength: |
1260--1650nm |
| Package Type: |
Steel Tube/ABS Box /Cassette/Rackmount |
| Pigtail Length (M): |
1m, 1.5m or Customized |
| Transmission Medium: |
Single-Mode |
| Structure: |
LC |
| Number Of Cores: |
Multi-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description

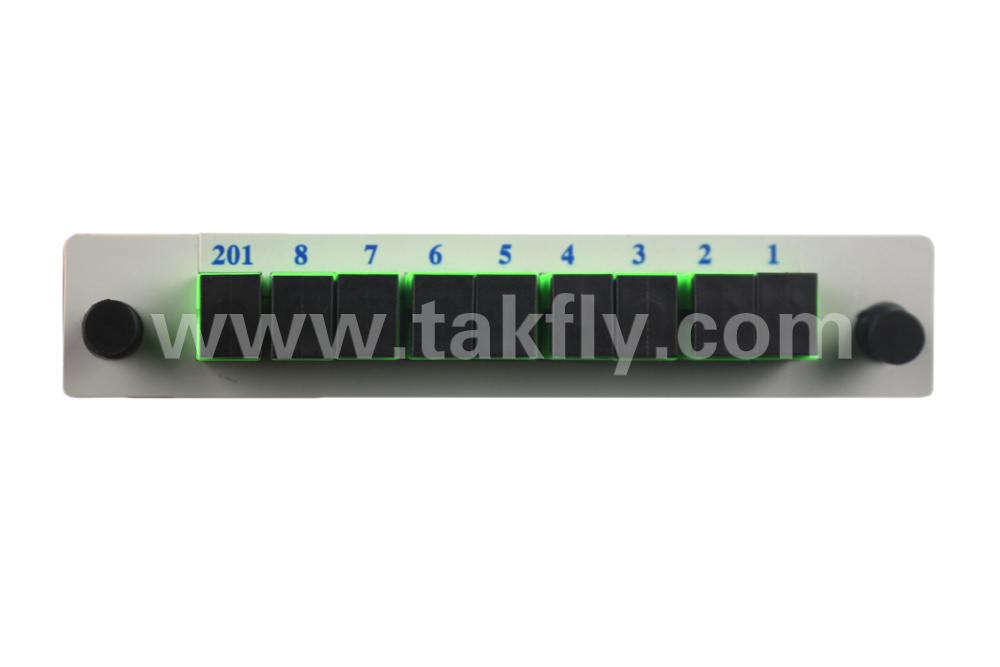

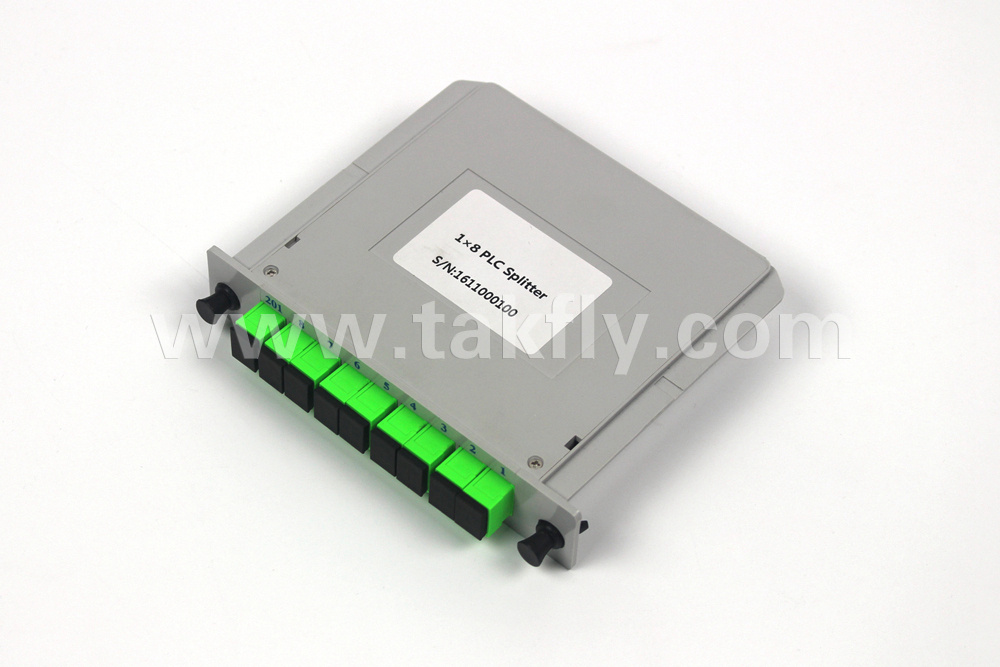

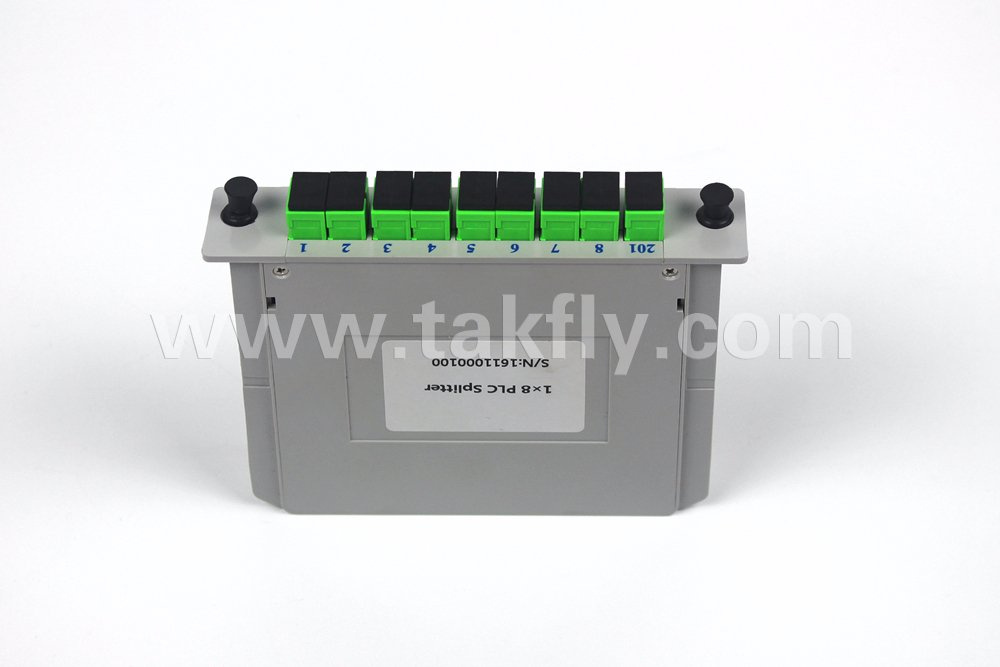

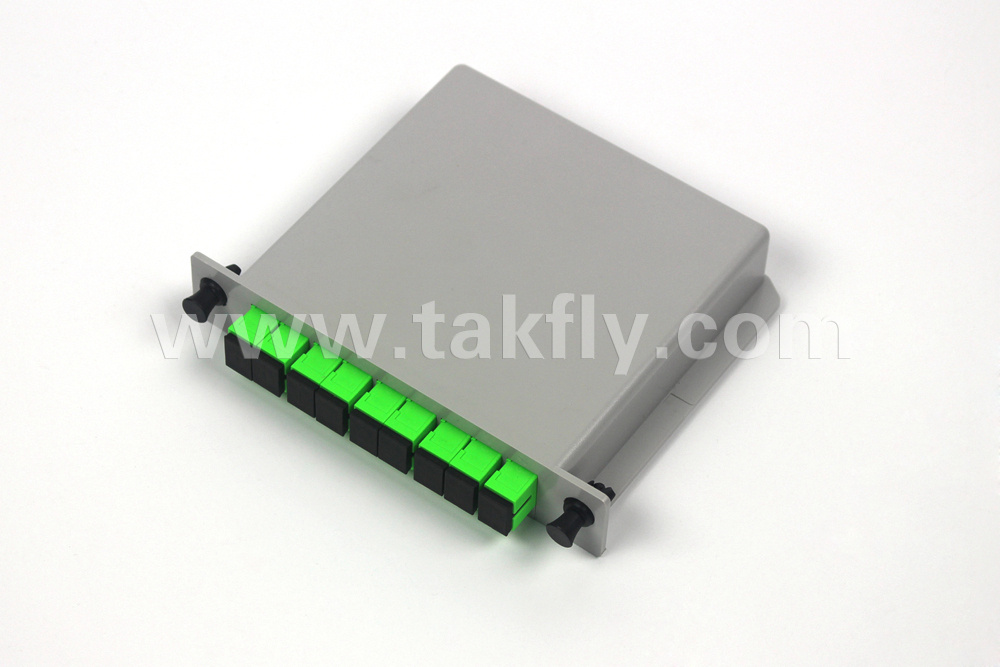

PON 1x8 LGX Card Insertion Fiber Optic PLC Splitter CassetteGeneral DetailsPlanar Lightwave Circuit (PLC) Splitter is fabricated using silica optical wave guide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and it is widely used in PON EPON, GPON, and future PON networks to realize optical signal power management. Takfly provides a whole series of 1xN and 2xN splitters from 1×2, to 1×64, 1×128 that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements.
Compared with FBT Coupler, the PLC splitters with more advantage, The PLC splitter with wide transmission wavelenghts, the loss to different wavelength transmission is not sensitive, so it with wide application for different fiber network, High spectral uniformity, It can splitter the signals equally, compact size in many splitting channels and the cost advantage is very obvious on many splitter channels
This series PLC splitter with multiple package type: Bare fiber type, Blockless type, Cassette Type, LGX type, as well as Rack Chassis Type. Moreover, Takfly PLC splitters are available in various fan-out configurations, with pre-terminated fiber optic connectors (SC/PC, SC/APC, FC/PC, FC/APC etc.).
Standard1) Telcordia GR-1209-CORE-2001
2) Telcordia GR-1221-CORE-1999
3) YD/T1117-2001
FeaturesLow Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: from 1260nm to 1650nm
Wide Operating Temperature: from -40ºC to 85ºC
High Reliability and Stability
ApplicationFTTH Systems
PON GPON, EPON, BPON etc Networks
CATV Links
Optical Signal Distribution
Specification| Type | 1×2 | 1 x 4 | 1 x 8 | 1 x 16 | 1 x 32 | 1 x 64 |
| Operating Wavelength (nm) | 1260-1650 |
| InsertionLoss (dB) | Typical | 3.7 | 7.0 | 10.2 | 13.2 | 16.2 | 19.7 |
| Max. | 4.0 | 7.3 | 10.5 | 13.7 | 16.8 | 20.4 |
| Loss Uniformity (dB) Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| PDL (dB) Max | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| TDL (dB) Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| ReturnLoss (dB) Min | UPC Connector | 50 |
| APC Connector | 55 |
| Directivity (dB) | 55 |
| Power Handling (mW) | 300 |
| Pigtail Length (m) | 1.0 (±0.1) or customer specified |
| Fiber Type | SM G657 A1 or customer specified |
| Operating Temperature (°C) | -40 ~ 85 |
| Storage Temperature (°C) | -40 ~ 85 |
Note: 1. All measurement at room temperature and excluding connector loss;
2. For devices with connectors, insertion loss will be 0.3dB higher, Return Loss >55dB (APC), >50dB (UPC).
Pic about Takfly
What we can provide for you??Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantages:
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service
Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Payment:
Acceptable by T/T, West Union, PayPal and L/C according to your requirement
Shipping
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
Contact
1.Our working time:8:30am~5:30pm
2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.
3.When our trade manager is off line, please feel free to leave a message, and tell us the products you need, our model number, and your E-mail address, we will reply to you within 24hours too.
Any question about this Lgx card insertion type of PLC splitter,please leave me an inquiry or contact me directly.
