Pressure Gauge Pressure Switch

Name: Pressure Gauge Pressure Switch
Brand: all-electronics-online.com
SKU: 831422575
Availability: InStock
Rating: 4.4 (112 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	IP19

Product Description

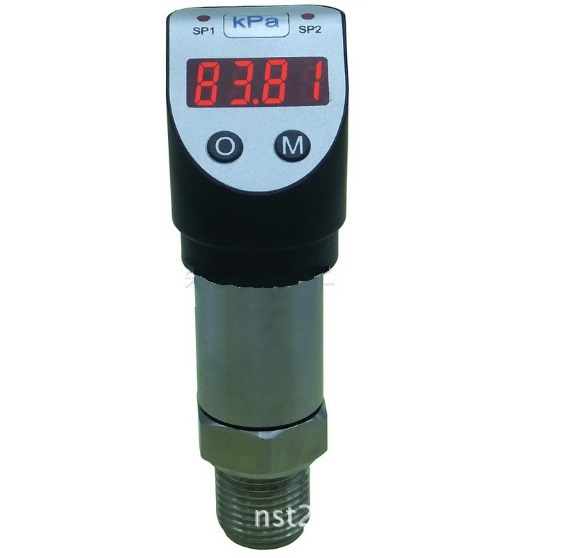

IP19 Digital Pressure Switch

Outline:

It is an intelligent digital pressure switch setting pressure measurement, pressure display, control in one professional unit. It has followed features: easy operation, good shock resistance, high precision, long-term stability.
It can realize the control function: low pressure to stop, the high pressure to start or the high pressure to stop, the low pressure to start. The control pressure can be set up in the whole range. It also has the followed functions: delay control, reverse control, three pressure units to change, one key to error clearing, leakage pressure protection, password protection, pressure detection automatically.
It is widely used in building water supply, hydraulic pressure control, supporting equipment of automated machine.

Feature:

Wide range, Full stainless steel.
Various pressure point.
Two supply power mode 24VDC or 220VAC,with RS485 communication interface.
Can provide Max. 4 way relay control contact point.
value of contact point and status of contact point can be set freely

Typical Applications:

Can be widely used in building water supply, machinery and equipment, pharmaceutical chemicals, automation machinery and other control areas.

Parameters
	Pressure Range	0-0.2...0.6...1...1.6...2.5...5...10...25...40...60Mpa
	Overload Pressure	150%
	Acc.	0.5%FS
	Supply	24VDC, 220VAC, 380VAC (Selectable)
	Alarm Point Set	Any point can be set within the range.
	Output Signal	Relay signal
	Load Capacity	380V 3A 220V 5A 24V 5A
	Sampling Frequency	5 Times/sec
	Operation Temperature	-20ºC~80ºC
	Measurement Medium	Liquid, gas compatible with 316L stainless steel.
	Connection Protection	Reverse protection, short-circuit protection
	Connector	M20*1.5, G1/2, G1/4 (selectable)
	Outlet Line	Power: red blue Output: black white

Dimension:

Electric Connection:

Working Method: When the pressure increases to the set upper limit of pressure, the black and white lines are disconnected; when the pressure decreases to the lower limit pressure, the black and white lines are connected.
Reverse control function(t000) can be opened in system function to achieve: high pressure to start, low pressure to stop.

Selection Guide:

*IP19*	*IPS Pressure Switchrschmann Connector***
	1	Radial direction single relay output
	4	Radial direction double relay output
	5	4-20mA
	6	Normally Open
	7	Normally Open+Normally Close
	9	Output type according the customer request
		M	M20X1.5
		N	1/4-18NPT
		O	M12X1.5
		P	M10X1.0
		Q	1/8NPT
		R	G1/4
		Z	According the customer request
				xxxK	0~xxx KPa
				xxxM	0~xxx MPa
				xxxB	0~xxx Bar
				xxxP	0~xxx Psi
					1	AC220V
					2	AC380V
					3	DC24V
IP19	1	R	-	016B	3
