RF Coaxial Cable (12D-FB)

Name: RF Coaxial Cable (12D-FB)
Brand: all-electronics-online.com
SKU: 641070995
Availability: InStock
Rating: 4.3 (59 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	15000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	12D-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	RoHS
Cover Material:	PVC
Application:	RF Cable

Product Description

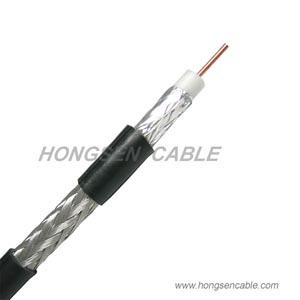

12D-FB Low Loss 50 Ohm Coaxial Cable

SPECIFICATION:
Conductor: 4.40mm Bare copper/ CCA
Dielectric: 12.4mm Foam polyethylene
Fist Shield: Bonded AL/ P Foil
Second Shield: Tinned Copper or Aluminum wire braid 70% coverage
Jacket: 15.60 mm black PVC

APPLICATION:
Used as a connection cable in the high signal sequences of the wireless and data communication systems where lower attenuation required.

Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.

Our Mission

We are dedicated to providing our customers competitive price and excellent service.
