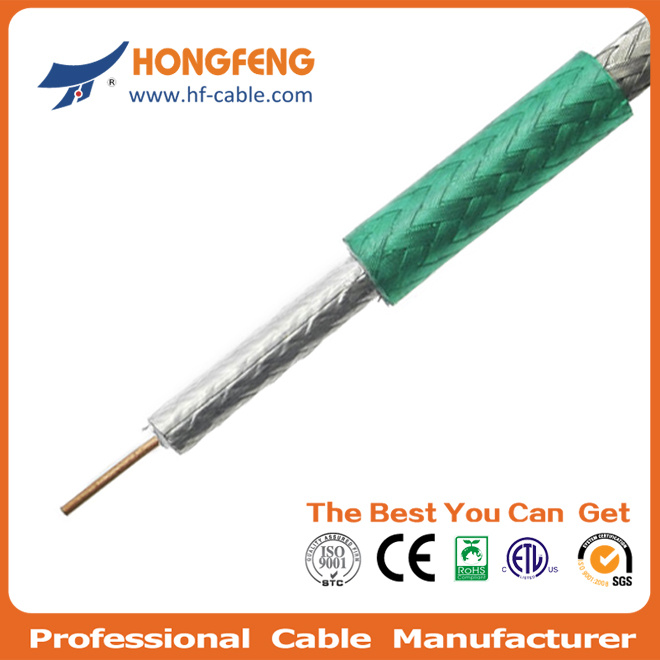

Rg6u Coaxial Cable

Prod Model:	rg6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable
Model:	RG6
Brand:	Hf

Product Description

LMR240 coaxial cable
1.42Cu+3.81FPE+Bonded AL-Foil+6*16/0.12TC+6.1 PVC
Note:
1) Center Conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil are available;
3) Braiding Wire: AL-Mg, Bare Copper and Tinned Copper available;
4) Braiding Wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15mm available;
5) Braiding Coverage: Between 30- 95% available
6) Jacket Color: White, black, etc.

Packaging:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's requirement;
2) Inner Packing: Wooden reel, Plastic reel, and Paper reel available;
3) Outer Packing: Carton Box, Pull out Box, Pallet available;
4) Other packing available according to client's requirement.

Product Origin: China
Brand Name: RuiFeng or OEM
Productivity: 300, 000Km/Year
Price Terms: FOB, CIF, CFR
Payment Terms: L/C, T/T, Western Union
Shipping Date: Generally within 15days

#Coaxial Cables:
1) RG Series Coaxial Cable: RG58, RG59, RG6, RG7, RG11, etc;
2) Network Cables: LAN Cable CAT3, LAN Cable CAT5;
3) Combined Cable: Siamese Cables: RG59+2C, RG6+2C, etc.

#Applications:
1) CATV-community antenna television;
2) CCTV-closed-circuit television;
3) DBS-direct broadcasting satellite.

RF Coaxial Cable LMR240
Construction
Item		Material			Diameter(Inch/mm)
Inner Conductor		BC/CCS			0.056	1.42
Dielectric		Foam PE			0.150	3.81
First Shield		Bonded Aluminum Foil			0.155	3.94
Second Shield		Tinned Copper Wire Braid 85% Coverage			0.178	4.52
Jacket		PVC/PE			0.240	6.10
Electrical Characteristics
Impedance(Ω )					50± 3
Impedance(Ω )					79.4
Velocity of Propagation(%)					84.0
Return Loss					≥ 20
Screening Effectiveness					≥ 90
Application
Mainly be used in 3G, GSM, and CDMA telecommunication system, digital microwave communication system, aeronautics and space industry, precise instrument.
