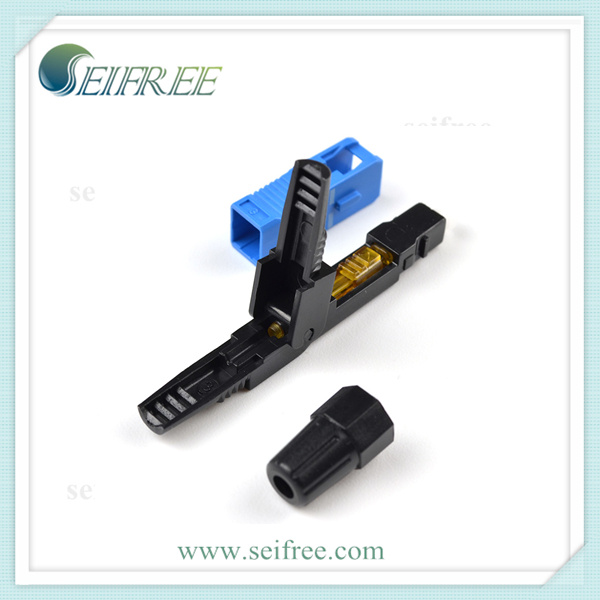

Sc Fiber Optic Fast Connector, Quick Field Assembly Sc/Upc Drop Cable Connector

Name: Sc Fiber Optic Fast Connector, Quick Field Assembly Sc/Upc Drop Cable Connector
Brand: all-electronics-online.com
SKU: 814205415
Availability: InStock
Rating: 4.4 (33 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SADP-A-S-S-X-SC-FPC-SC-MPC
Fiber Type:	G652D
Feature:	Quick Field Assembly
Insertion Loss:	<0.3dB
Return Loss:	>45dB
Application 1:	Telecom
Application 2:	FTTH
Application 3:	CATV
Application 4:	Drop Cable
Application 5:	Fiber Optic Distribution Box
Application 6:	Access Network
Transmission Medium:	Single-Mode
Structure:	LC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)

Product Description

Description:
1. Fast connector is designed to make connection simple without fusion splicing machine.
2. Fast connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver.
3. Fast connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and preset optical fiber at V-grooves, and ferrule pre-grinding.
4. It could be applied to drop cable and indoor cable.

Specifications:

Applicable for	3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable
Optical fiber diameter	φ125um (G657A&G657B)
Tight buffer diameter	φ250um
Fiber mode	Single mode
Operation time	About 10s (exclude fiber cut)
Insert loss	≤0.3dB (1310nm & 1550nm)
Return loss	≥45dB
Fastening strength of naked fiber	≥ 5N
Tight clamping force cladding	≥ 8N
Tensile strength	≥ 50N
Using temperature	-45°C~+80°C

Features:
1. Quick and easy to install without special tools
2. Power-save, as it does not need hot melting
3. Without any gluing and polishing process
4. Reusable and repeat operation times are up to 500
5. Integrated protection of the casing to prevent the connector form impact
6. Can be installed in two minutes
7. The total length of plug ≤45mm

Why us?
♥ Your inquiry will be replied within 24h. All your enquires will be answered by our well-trained and experienced staffs
♥ Prompt Production and Delivery time
♥ The quality is guaranted 100% and client can fully trust us
♥ Sample order & small quantity is accepted
♥ Factory direct price must be competitive
♥ Guarantee of good after-sales service, build our long term business relationship

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
