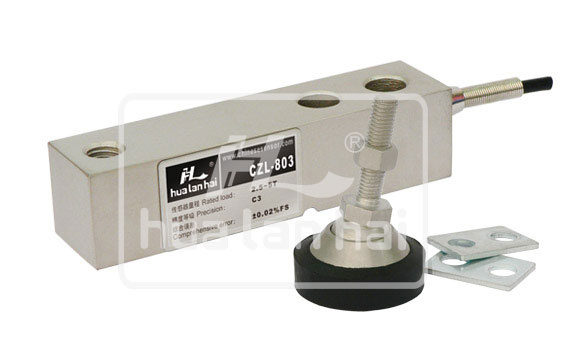

Shear Beam Load Cell

Name: Shear Beam Load Cell
Brand: all-electronics-online.com
SKU: 773557955
Availability: InStock
Rating: 4.7 (41 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL803
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pattern:	Shear Beam Style

Product Description

Rated load:500kg~10000kg

Main features: Alloy steel & stainless structure; Bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; Suitable for electronic platform scales, hopper scales, and other electronic weighing devies.

Parameters :
Precison : C2&C3		Temp. effect on span (%F.S/10 deg C): ± 0.017&± 0.011
Comprehensive error (%F.S) : ± 0.03&± 0.02		Temp. effect on zero (%F.S/10 deg C): ± 0.023&± 0.015
Rated output (mv/v) : 3.0 ± 0.003		Compensated temp. range ( deg C ) : -10~+40
Creep (%F.S/30min) : ± 0.024&± 0.016		Use temp. range ( deg C) : -20~+55
Zero balance (%F.S) : ± 1 .0		Excitation voltage( V) : 9~12( DC)
Input resistance (ohm) : 350 ±5		Safe overload (%F.S) : 1 5 0
Output resistance ( ohm) : 350 ±3		Ultimate overload (%F.S) : 200
Insulation resistance (M ohm) : ≥ 5000(100VDC)		Defend grade : IP66

Installation size (mm):

Rated Load(kg)	L	L1	L2	L3	L4	d	B	M
500-2000	130	56.5	15.8	25.4	76.2	13.5	31.8	M16x2
2500-5000	171.5	77.2	19.1	38.1	95.3	20.5	38.1	M20x2.5
10000	222.3	101.6	25.4	50.8	120.7	26.2	50.8	M24x2

Wiring schematic diagram:
Red: Input ( + ) White: Output ( - )
Black: Input ( - ) Green: Output ( + )

Notes:It used 4-core shielded cable(φ5×10000mm)

Load instruction:

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
