Simplex Sc/APC Fiber Patch Cord 2.0mm LSZH Jacket 1//2/3/5/10 Meter Available
| Price: |
US $ 0.5-0.6/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
SC fiber patch cord |
| Connector: |
LC-LC, Sc-Sc, FC-FC |
| Type: |
Single-Mode Fiber |
| Connection Structure: |
LC |
| Material Shape: |
Round Wire |
| Allowed Tensile Strength: |
1000n<10000n |
| Core: |
Single Core |
| Certification: |
VDE, Ce, RoHS, CCC, UL |
| Sheath Material: |
PVC |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description

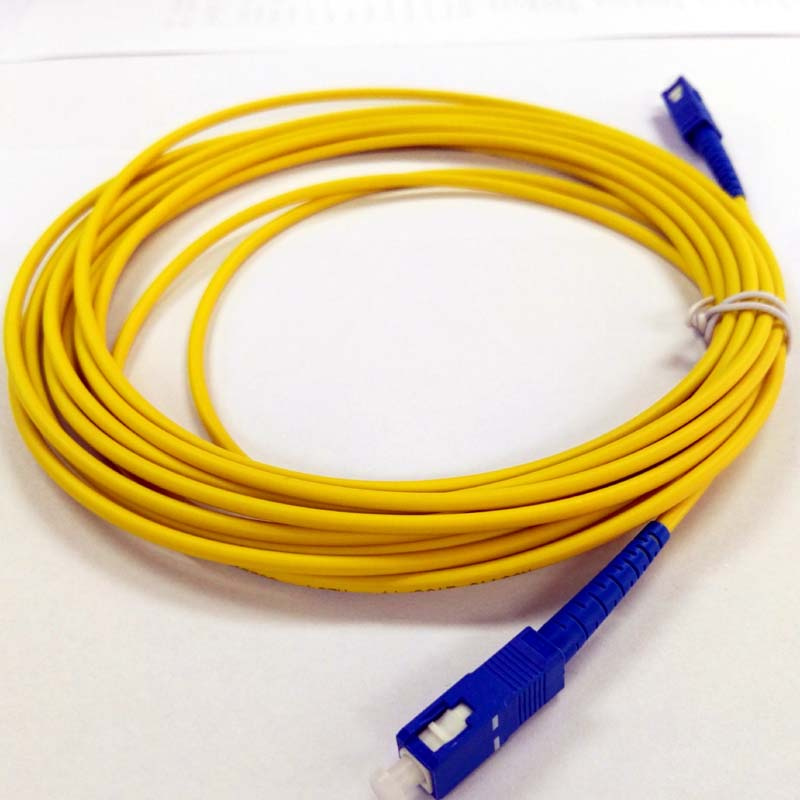

SC-SC simplex fiber patch cordApplication: Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
TelecommunicationCharacteristics:Low insertion loss, high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeabilitySpecification:| Parameter | Unit | SC-SC fiber patch cord |
| SM | MM |
| PC | UPC | APC | PC |
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Operating wavelength | nm | 1310, 1510 |
| Exchangeability | dB | ≤0.2 |
| Vibration | dB | ≤0.2 |
| Operating temperature | °C | -40~75 |
| Storage temperature | °C | -45~85 |
| Cable diameter | mm | Φ3.0, Φ2.0, Φ0.9 |

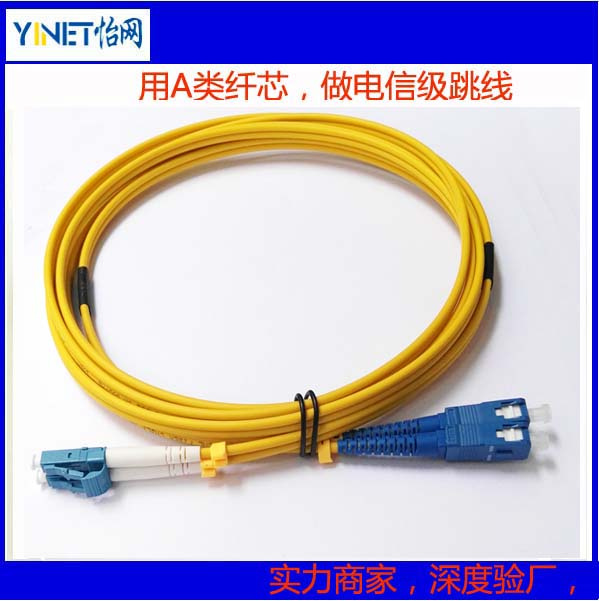

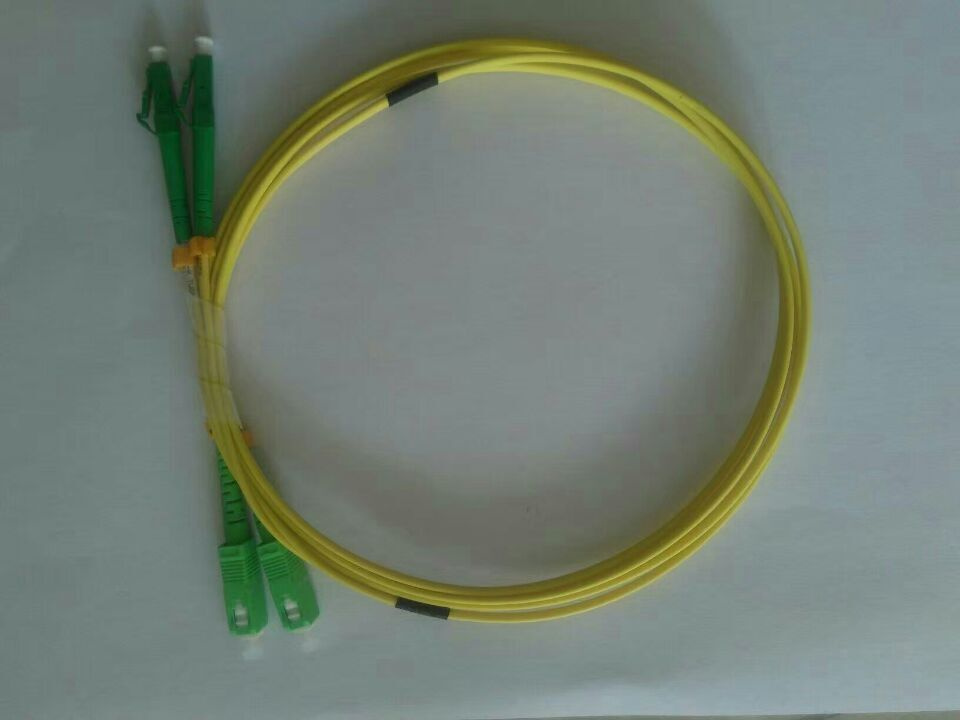

SC-LC SM duplex fiber patch cordApplicationLocal Area Networks, including FTTH and FTTD
CATV System Telecommunication Networks Data processing networks Characteristics: Low insertion loss, high return loss Good compatibility High precision of mechanical dimensions High reliability & stability Meet Telcordia-GR-326 and IEC standards PC,APC,UPC optional, cable length optional Specification: Insertion loss: ≤0.2dBReturn loss: ≥50dB(PC)Repeatable: 0.1dB (1000)Temperature range: -40°~80°
LC-LC MM 62.5/125um 3mm Duplex Fiber optic patch cord ApplicationLocal Area Networks, including FTTH and FTTD
CATV System Telecommunication Networks Data processing networks Specification:Standard: IEC, Telcordia GR-326-COREOur optical fiber patch cord is high return loss and low insertion loss ,Insertion loss is less than 0.3dB,Return loss UPC is more than 55dB ,APC is more than 60dBPC/UPC/APC polishingFiber cable diameter: 1.6mm, 2.0mm, 3.0mm fiber is availableFiber jacket PVC or LSZH cable is availableFiber optic patch cord with excellent changeability and repeatabilityOperating temperature range: -40°C-80°CStorage temperature range: -40°C-80°CTensile strength: 10N Parameter:| Spec. | fiber optic patch cord |
| Insertion loss | Less than 0.3dB |
| Return loss | MM more than 35dB |
| SM more than 55dB |
| APC more than 60dB |
| Repeatability | Less than 0.2dB |
| Changeability | Less than 0.1dB |
| Operting termperature | -40°C~80°C |
| Storage temperature | -40°C~80°C |
| Tensile strength | 100N |
| Min.bending radius | 35mm |
| Length | Customized |

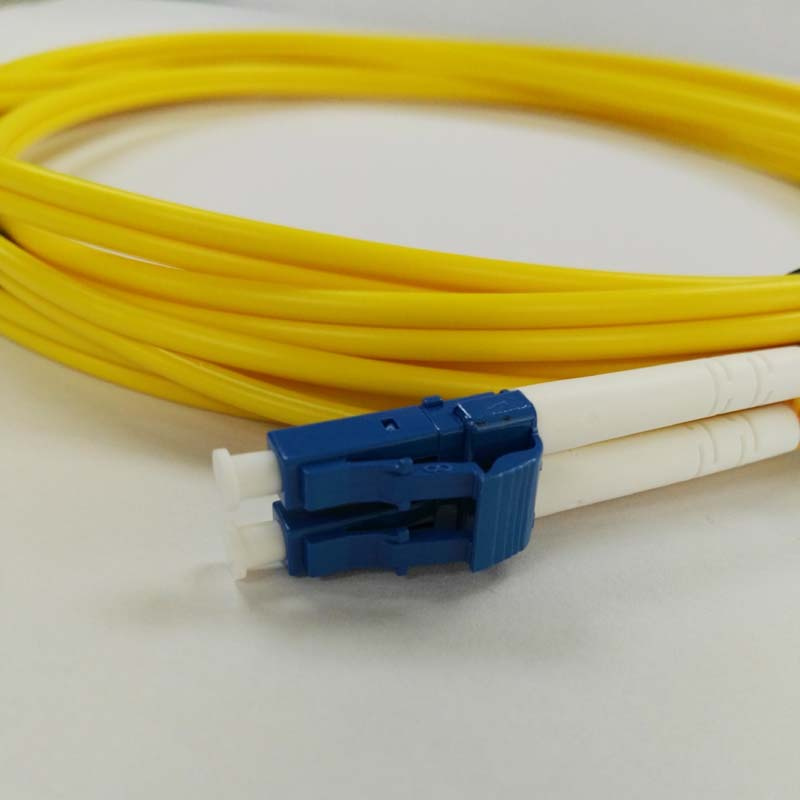

LC-LC SM Optical Fiber Patch Cord
1. Features of LC-LC Optical Fiber Patch Cord-Low insertion loss-High return loss -Excellent Repeatability,exchangebility,wearability and stability-Environmentally Stable2. Applications of LC-LC Optical Fiber Patch Cord-Optical fiber communications system-Optical fiber access networks-Optical fiber CATV-Optical fiber test equipments-Optical fiber data communication3.Technical Specs for LC-LC Optical Fiber Patch Cord| Item | PC | UPC | APC |
| Testing Wavelength(nm) | 1310nm&1550nm |
| Insertion Loss Max(dB) | 0.3 |
| Return Loss(dB) | 45 | 50 | 55 |
4.3D Specs for LC-LC Optical Fiber Patch Cord| Item | UPC | APC |
| Φ0.125mm | Φ0.25mm | Φ0.125mm | Φ0.25mm |
| Redius of Curve(mm) | 7~25 | 10~25 | 5~12 |
| Apex Offset(um) | ≤50 |
| Fiber Height(nm) | +50/-100 |
| Polishing Angle(°C) | 8±0.3 |
Our team has many years of experience in the field of communication. Especially in Ethernet and wireless networking products. Our engineers from companies such as tp-link and enhances our R & D capabilities and product quality. At the same time we are also microsemi and Realtek's strategic partners.
Our main products include power over Ethernet switch, wireless access point, wireless router, outdoor CPE and fiber optical transceiver. Also we supply fiber switch and media converter, Stable performance and competitive price.
Phynam communications adhering to "create bring convenience to the life", with innovative products and reliable product quality to win customer trust. Phynam communication based on customer demand, supply PoE to the terminal (PTTT), optical fiber to the desktop (FTTD), and wireless products, provide the perfect solution.
Fhynam communication PoE to the terminal product mainly includes PoE 10/100M/1000M series PoE (power over Ethernet) switches, PD and PoE injector. My company POE switches are widely used in video monitoring, wireless city, the communication between IP telephone, data acquisition etc. Phynam forward the concept of POE to terminal, provides many kinds of POE products in a reliable way.
Phenam communication wireless cover products such as wireless router, wireless AP, mainly used in public buildings, shopping malls hotels, office buildings and other occasions, to provide users with stable and reliable, fast and convenient wireless network.
Phynam communication FTTD products mainly include fiber optic router, fiber optic Ethernet switches, fiber optic network adapter, optical transceiver and fiber patchcord. FTTD is the final solution to solve broadband highway "last 1 meter" transmission bottleneck. Phynam communication was originally proposed the concept of optical communication field "last 1 meter", and make unremitting efforts to solve it.
Phynam adhering to the idea of "Create benefits to the public life", with innovative products and reliable quality to win customer's trust. Phynam believe that to create is the soul of the products and the quality is the body of the products. Let's creative work can benefit the public life.
