Name: Switch Power Supply Adapter, 220V 12V Power Supply, Uninterruptible Power Supply 12V
Brand: all-electronics-online.com
SKU: 823654495
Availability: InStock
Rating: 4.5 (146 reviews)

Price:	US $ 7-19/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

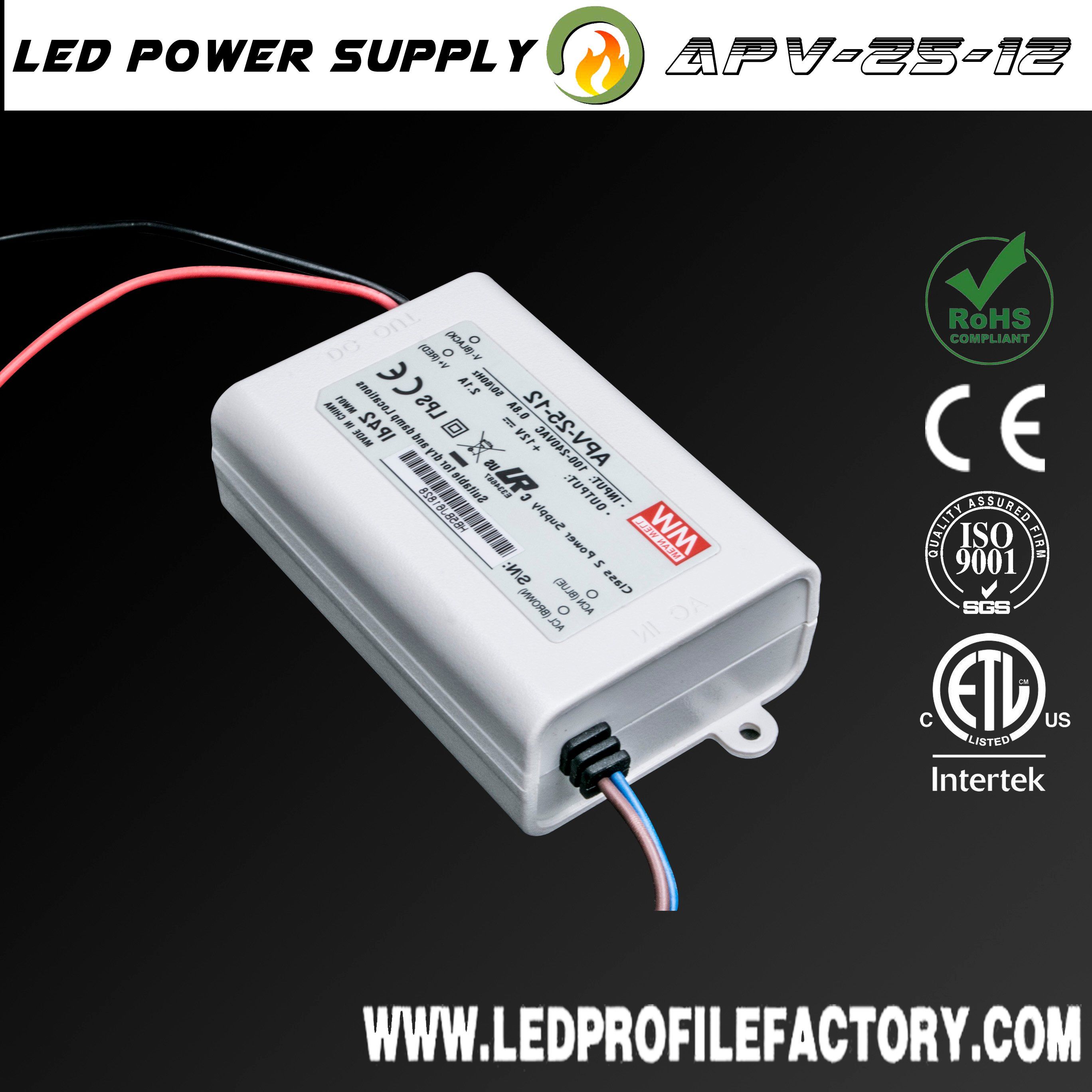

Prod Model:	APV-25-12
In Put Voltage:	90 ~ 264vact127 ~ 370VDC
Output Voltage:	5/12/15/24/36V
Power:	35W
Warranty:	2 Years
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Brand:	Meanwell

Product Description

feature
Withstand 300VAC Surge input for 5 seconds
Universal AC input I Full range
Cooling by free air convection
Protections: Short circuit I Over load I Over voltage
Fully isolated plastic case
100% full load burn-in test
Small and compact size
Class 2 power unit
IP 42 design
Pass LPS
Specification

MODEL		APV-25-5	APV-25-12	APV-25-15	APV-25-24	APV-25-36
OUTPUT	DC VOLTAGE	5V	12V	15V	24V	36V
	RATED CURRENT	3.5A	2.1A	1.68A	1.05A	0.7A
	CURRENT RANGE	0 ~ 3.5A	0 ~ 2.1A	0 ~ 1.68A	0 ~ 1.05A	0 ~ 0.7A
	RATED POWER	17.5W	25.2W	25.2W	25.2W	25.2W
	RIPPLE & NOISE (max.) Note.2	120mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p
	VOLTAGE TOLERANCE Note.3	±5.0%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	SETUP, RISE TIME Note.6	1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load
	HOLD UP TIME (Typ.)	20ms/230VAC 12ms/115VAC at full load
INPUT	VOLTAGE RANGE Note.4	90 ~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	75.50%	82%	83%	83%	84%
	AC CURRENT	0.4A/230VAC 0.8A/115VAC
	INRUSH CURRENT(Typ.)	COLD START 45A(twidth=310μs measured at 50% Ipeak) at 230VAC
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	9 units (circuit breaker of type B) / 15 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	0.25mA / 240VAC

Hot sale:

Other products:

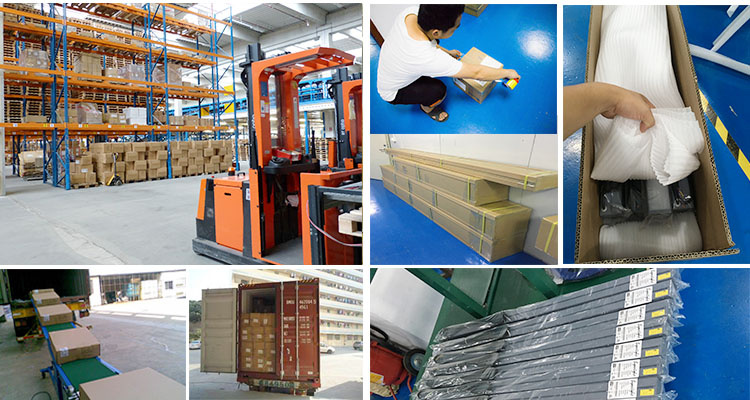

Packaging&transportation:

FAQ:

Q:How will I know whether to use a Constant Voltage or Constant Current driver with my LED's?
A:Usually the manufacturer of the LED load will specify whether the LED module is for use with either a Constant Voltage or Constant Current driver.

Q:What is input voltage range of LED Driver?
A:85-264VAC,120-373VDC

Q:What is output DC voltage of LED Driver?
A:3.3/5/12/15/24/36/48V

Q:What is the working temperature?
A:-30~+70ºC

Q:What is the warranty for an LED Driver?
A:Our LED drivers have a 5 year limited warranty
