Teflon Coaxial Cable RG393

Name: Teflon Coaxial Cable RG393
Brand: all-electronics-online.com
SKU: 639458255
Availability: InStock
Rating: 4.7 (130 reviews)

Price:	US $ 8.94-9.63/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	300/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG393
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Conductor:	double shield
Insulation:	PTFE
Application:	Wireless Communication, Military Equ
Certification:	RoHS
Conductor Material:	Silver Plated Copper
Cover Material:	FEP
Type:	Coaxial Cable

Product Description

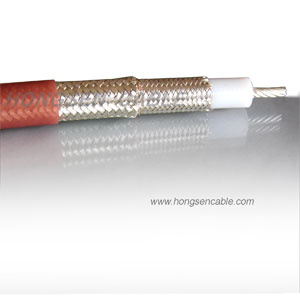

RG393 Coaxial Cable, Microwave Coaxial Cable, Double Shielded, 9.91mm FEP Jacket

Description:
Inner conductor: 7/0.79 stranded silver plated copper
Insulation: 7.24mm PTFE
Outer conductor: 8.71mm double shield, silver plated copper
Jacket: 9.91mm FEP

Capacitance (pF/m): 96.5
Impedance (Ω ): 50.0
Velocity of Propagation (%): 70.0
Max Operating Frequency (MHz): 11000.0
Max Operating Voltage (RMS): 2500.0
Operating Temp Range: -55 to 200

Typical Attenuation ( @ 20 ºC)

Frequency (MHz)	Max Attenuation (dB/100ft)	Max Attenuation (dB/100m)
50	1.7	5.6
100	2.0	6.6
400	4.4	14.3
1000	7.3	24.0
3000	14.3	47.0
5000	19.5	64.0
11000	33.2	108.9

Application: RG393 Coaxial cable are used in wireless communication, broadcast and military equipments for transmission of radio frequency signals. Silver Plated Copper covered steel as inner conductor, PTFE dielectric, Silver Plated copper as braid wire, double shield, and FEP as jacket.

Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.

Our Mission

We are dedicated to providing our customers competitive price and excellent service.
