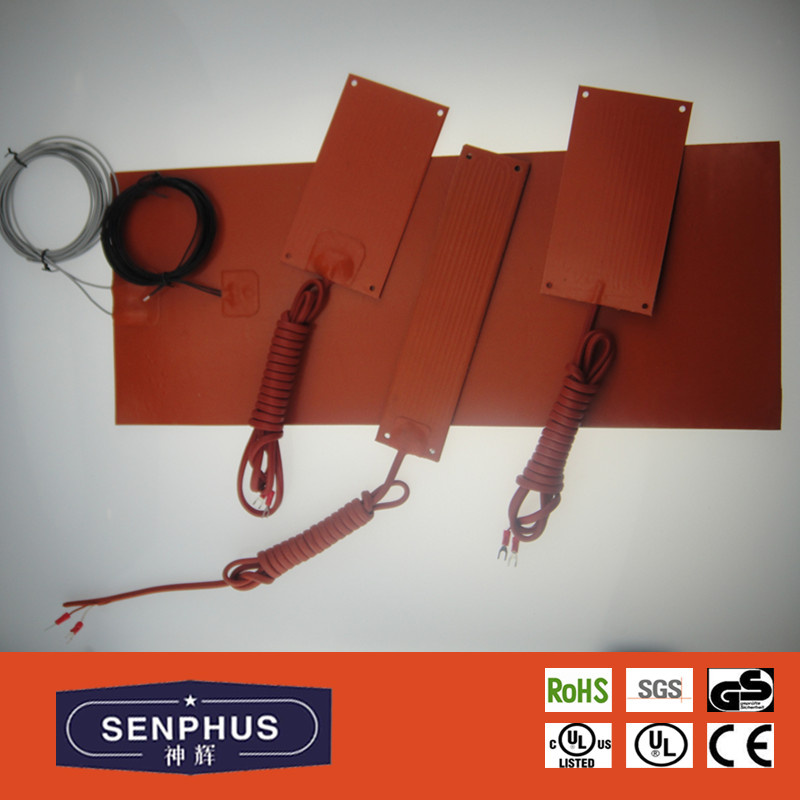

UL Approved High Safety Silicone Heater

Name: UL Approved High Safety Silicone Heater
Brand: all-electronics-online.com
SKU: 681780485
Availability: InStock
Rating: 4.8 (65 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SHRH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Silicone Rubber Heater Voltage:	12V, 24V, 36V, 48V, 110V, 220V, 240V, etc
Power:	Customized According to Your Use
Thickness:	1.5mm
Dimension:	Customzied
Certification:	UL
Control Type:	Mechanical
Brand:	Senphus
Operating Principle:	Electric Heater
Type:	Silicone Rubber Heater
Usage:	Heater
Material:	Silicone Rubber
Control Method:	Power or Thermoswitch

Product Description

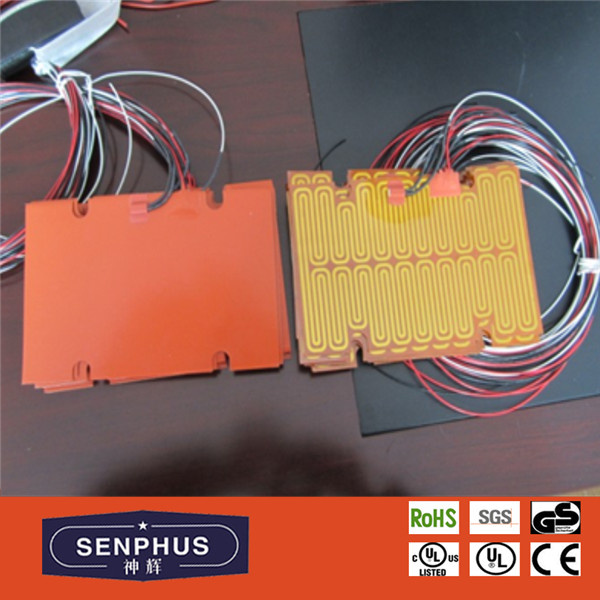

silicone rubber heater:

Features:
1) according to actual requirements, design different shape and dimension
2) Moisture-proof and non-slip silicone rubber material offers longer working life of heaters
3) Simply sticking to your components through sulfuration, adhesive or fixer

Application:
1. Industrial equipment, pipelines, barrels, tanks, etc.
2. Outdoors telecommunication equipment
3. Medical equipment and devices
4. Outdoors electronic devices
5. Thermal imaging of imaging equipment
6. Case protection under cold and moist environment
7. Industrial ovens and thermal processing equipment
8. Ventilator supports
9. Laminating equipment
10. Vessels

Technical Data:
1. Temperature range: -60.00~250.00degreeC(-76~+482Deg F)
2. Electric resistance precision: ± 10%( bigger value selected)
3. Power density: 0.10~1.50W/cm²
4. Mechanical pressure: 100.00kg/cm²
5. Minimum bending radius: 3.20mm
6 thickness: Standard 1.5mm Minimum 0.5mm;
7 Voltage From 2 to 600 volts with either AC or DC voltage sources.;
8 Watt Density: Max 10 W/cm2;

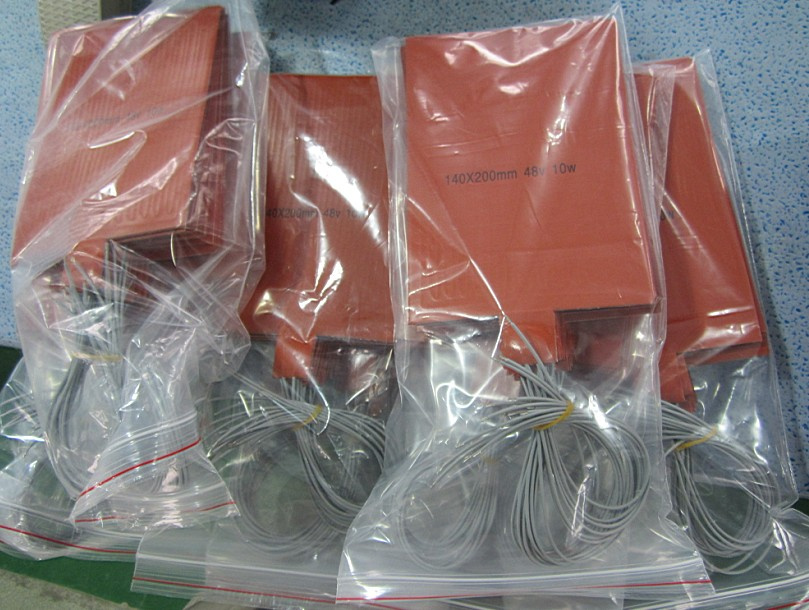

Packaging: Carton boxe and plastic bag
Delivery: About 10 days after advance payment
Trade terms: FOBShanghai, CIF, C&F, and others
Min. Order: 1 piece

Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.

We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.

Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.

Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.

Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!

OEM is welcome! !
