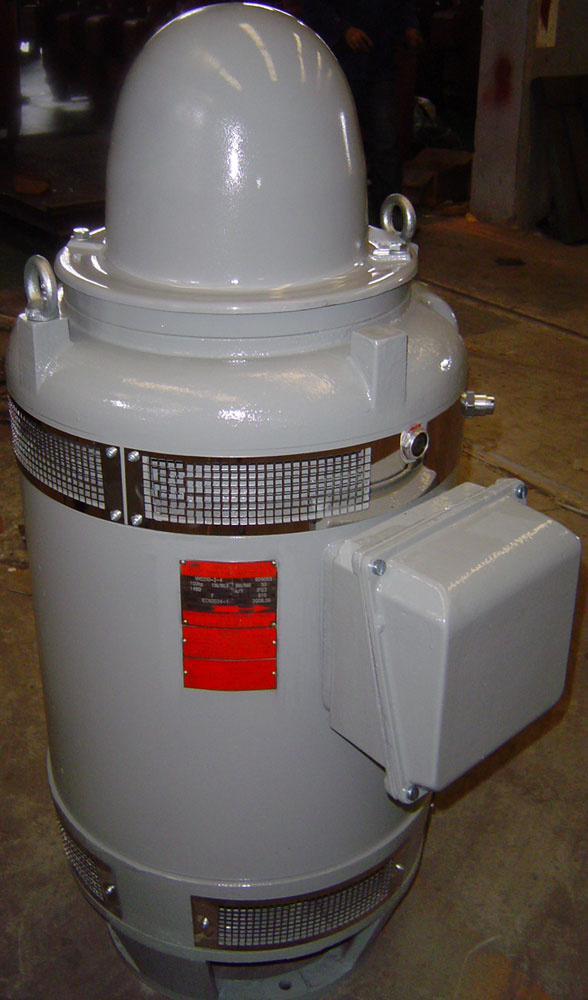

Vertical Hollow Shaft Vhs Motor
| Price: |
US $ 1000-10000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
VHS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Type: |
Vertical Hollow Shaft Motor |
| Motor Series: |
Vhs Series Motor |
| Power Range: |
7.5 ~500 HP or as Buyer's Request |
| Frame Size Range: |
132 ~ 355 mm |
| Mounting: |
Vertical Flange Mounted |
| Insulation Class: |
F or H |
| Cooling Type: |
IC01 Odp, IC411 Tefc |
| Design: |
IEC or NEMA Standard |
| Duty: |
S1 Continuous |
| Bearing Brand: |
Tmb, NSK, SKF or as Buyer's Request |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Protection Type |
| Starting Mode: |
Direct on-line Starting |
| Species: |
Vhs Series Vertical Hollow Shaft Motor |
| Brand: |
China Electric |
Product Description
IEC standard Vertical Hollow Shaft VHS Motor
NEMA standard Vertical Hollow Shaft VHS Motor
1) Type: VHS series vertical hollow shaft motor (WP-1)
2) Technical standards:
A) Rated output grade: The IEC standard
B) Protection degree: Weather-protected type1 (drip-proof)
2) High efficiency, large starting torque, low noise or vibration, small temperature increasing range
3) Can sustain heavy axial thrust load
4) Compact and reliable structure
5) Easy maintenance
6) Usage: Suitable for vertical pumps, especially for deep well vertical turbine pumps, Widely used for pumping underground water in mines, factories, farms and cities
7) Enquiry information required: Output (HP or kW), speed, voltage, frequency, insulation class, ambient temperature, non-reverse backstop (if required), starting Method (if not specified, the downthrust load would be standard)
8) Motors with rated voltage below 500V, frequency of 60Hz, class B or F insulation available
9) We also supply vertical hollow shaft motors for special purposes
Data sheet for IEC standard Vertical Hollow Shaft VHS Motors
| Type | Rated Output | Rated Current | Rated Voltage | Rated Frequency | Synchronous Speed | Efficiency | Power Factor |
| hp/kw | A | V | Hz | r/min | % |
|
| VHS132-1-2 | 7.5/5.5 | 11/10.8 | 380 | 50/60 | 3000/3600 | 83.8 | 0.88 |
| VHS132-2-2 | 10/7.5 | 14.4/14.5 | 380 | 50/60 | 3000/3600 | 84.8 | 0.88 |
| VHS160-1-2 | 15/11 | 22.5/22 | 380 | 50/60 | 3000/3600 | 84.5 | 0.88 |
| VHS160-2-2 | 20/15 | 30 | 380 | 50/60 | 3000/3600 | 85.5 | 0.88 |
| VHS160-1-4 | 15/11 | 23/22.5 | 380 | 50/60 | 1500/1800 | 86.5 | 0.85 |
| VHS160-2-4 | 20/15 | 30 | 380 | 50/60 | 1500/1800 | 87.5 | 0.86 |
| VHS180-1-2 | 25/18.5 | 36 | 380 | 50/60 | 3000/3600 | 87 | 0.88 |
| VHS180-2-2 | 30/22 | 43/42.5 | 380 | 50/60 | 3000/3600 | 87.5 | 0.88 |
| VHS180-1-4 | 25/18.5 | 37 | 380 | 50/60 | 1500/1800 | 88 | 0.86 |
| VHS180-2-4 | 30/22 | 43.5/43 | 380 | 50/60 | 1500/1800 | 88.5 | 0.86 |
| VHS200-1-2 | 40/30 | 58 | 380 | 50/60 | 3000/3600 | 88 | 0.88 |
| VHS200-2-2 | 50/37 | 70.5/70 | 380 | 50/60 | 3000/3600 | 88.5 | 0.88 |
| VHS200-1-4 | 40/30 | 58/58.5 | 380 | 50/60 | 1500/1800 | 89.5 | 0.87 |
| VHS200-2-4 | 50/37 | 72/71 | 380 | 50/60 | 1500/1800 | 90 | 0.87 |
| VHS200-3-4 | 60/45 | 85/85.5 | 380 | 50/60 | 1500/1800 | 90.5 | 0.87 |
| VHS250-1-4 | 75/55 | 105.5/103.5 | 380 | 50/60 | 1500/1800 | 91 | 0.88 |
| VHS250-2-4 | 100/75 | 139.5/140 | 380 | 50/60 | 1500/1800 | 91.5 | 0.88 |
| VHS250-3-4 | 125/90 | 173/167.5 | 380 | 50/60 | 1500/1800 | 91.5 | 0.88 |
| VHS280-1-4 | 150/110 | 205.5/202 | 380 | 50/60 | 1500/1800 | 92 | 0.88 |
| VHS280-2-4 | 175/132 | 238/241 | 380 | 50/60 | 1500/1800 | 92.5 | 0.88 |
| VHS280-3-4 | 200/150 | 275/276 | 380 | 50/60 | 1500/1800 | 92.5 | 0.88 |
| VHS280-4-4 | 250/185 | 348/345 | 380 | 50/60 | 1500/1800 | 92.5 | 0.88 |
| VHS280-5-4 | 270/200 | 374/371 | 380 | 50/60 | 1500/1800 | 93 | 0.88 |
| VHS280-6-4 | 300/220 | 415/408 | 380 | 50/60 | 1500/1800 | 93 | 0.88 |
| VHS315-1-4 | 250/185 | 348/345 | 380 | 50/60 | 1500/1800 | 93 | 0.88 |
| VHS315-2-4 | 270/200 | 374/371 | 380 | 50/60 | 1500/1800 | 93 | 0.88 |
| VHS315-3-4 | 300/220 | 415/408 | 380 | 50/60 | 1500/1800 | 93 | 0.88 |
| VHS315-4-4 | 350/260 | 484.5/480 | 380 | 50/60 | 1500/1800 | 93.5 | 0.88 |
| VHS355-1-4 | 400/300 | 554 | 380 | 50/60 | 1500/1800 | 93.5 | 0.88 |
| VHS355-2-4 | 450/335 | 623/618 | 380 | 50/60 | 1500/1800 | 93.5 | 0.88 |
| VHS355-3-4 | 500/375 | 689 | 380 | 50/60 | 1500/1800 | 94 | 0.88 |
| VHS355-4-4 | 600/450 | 826 | 380 | 50/60 | 1500/1800 | 94 | 0.88 |
