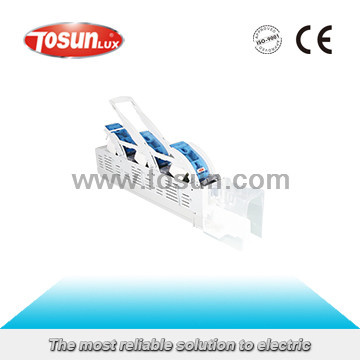

Vertical Type Hg2b Fuse Disconnector

Name: Vertical Type Hg2b Fuse Disconnector
Brand: all-electronics-online.com
SKU: 755097495
Availability: InStock
Rating: 5 (50 reviews)

Price:	US $ 22-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HG2B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conventional Heat Current:	160-630A
Assorted Fuse:	Nt00, Nt3
Mechanical Life:	1000-3000 Times
Electrical Life:	200-600 Times
Fuse Loss Power:	12-38W
Brand:	Tosunlux

Product Description

Specification
Specification of HG2B Fuse Disconnector

Conventional Heat Current (A)		160A	250A	400A	630A
Rated Working Current le	400VAC-23B	160A	250A	400A	630A
Rated Working Current le	660VAC-22B	100A	200A	315A	425A
Rated Making Capacity (A r.m.s)		10le
Rated Breaking Capacity (A r.m.s)		8le
Rated Limited Short Circuit Current (r.m.s)		50kA
Mechanical Life (times)		3000	2000	1000	1000
Electrical Life (times)		600	400	200	200
Fuse Loss Power		12W	24W	34W	48W

Model	Assorted Fuse	Switch Rating Heat Current (A)	Rated Current (A)
HG2B-160A	NT00	160	4, 6, 10, 16, 20, 25, 32, 35, 40, 50, 63, 80, 100, 125, 160
HG2B-250A	NT3	250	80, 100, 125, 160, 200, 224, 250
HG2B-400A	NT3	400	125, 160, 200, 224, 250, 300, 315, 355, 400
HG2B-630A	NT3	630	315, 335, 400, 425, 500, 630
