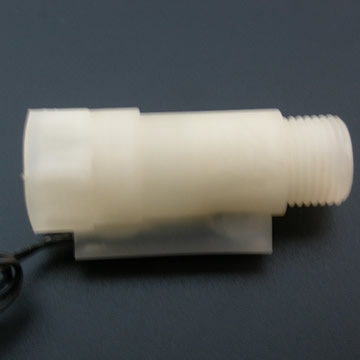

Water Flow Switches for Water Control (FS-900-60)

Name: Water Flow Switches for Water Control (FS-900-60)
Brand: all-electronics-online.com
SKU: 400129860
Availability: InStock
Rating: 4.7 (144 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	200/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FS-900-60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

The operating principle bases on a free-floating magnetic piston, which Responds only to the motion of fluid within the pipeline, not to static or system pressure. In the presence of fluid flow, controlled movement of the piston actuates an external hermetically sealed reed switch, thus producing the required signal which can be used to actuate audible or visual alarms as well as relays or other. Features: 1) Housing material: PBT. 2) Spring material: Stainless steel SUS304 or SUS316. 3) Retaining rings material: Stainless steel SUS304. 4) Operating pressure: 300 PSI max. 5) Temperature range: -40 - 125 degree C 6) Reed switch carry current: 1.5A. 7) Reed switch current: 1.0A max. 8) Reed switch voltage: 300V AC, 250V DC. 9) Reed switch power rating: 70A. 10) Lead wire: AWG 22, to 18, 300mm length, UL1430, or as required. 11) Flow range: 0.75L~2.0L min. 12) Set point accuracy: 10% max. 13) Set point difference: 15%. 15) Repeatability: 2% max. 16) Mounting orientation (horizontal or vertical): As signal of flow direction.

Our Corp.Specializes in studying and manufacturing magnetoelectric sensors, of the ability producing the following series with large scale.

Temperature Switches, PT100, PT1000 sensor, transmitter, and preventing cooling switches, pressure switches and sensors, liquid level switches, flow switches and turbin flow sensor, level Transmitter, position switches, proximity switches, gear tooth speed sensor, magnetic encoder, rotary sensors are marching to market.Our products can be widely applied to automobile engine, automobile-conditioner, household conditioner refrigerator, Electro-heater for appliance, solar boiler, for watching out and controlling temperature, liquid level, pressure and fluid flow parameters.

Products are matched with these famous domestic enterprises, such as Shanghai Carrier.A.O.Smith, Pentair, XinFei (Henan) Guangzhou refrigerator, Midea, , Meiling, Roshita, Hitachi of Japen etc.At the same time, we provide the OEM service.

Our products are CCC, VDE, ETL, CE, CQC, EX approved and have passed through the ISO 9001-2000 certified.

Our whole staff carries out the following operations and managing ideal:Credit, honest and meeting customer's demand.All employees are working hard on your and our business with highly attitude!
