| Prod Model: |
LC fiber patch cord |
| Connector: |
LC-LC, Sc-Sc, FC-FC |
| Type: |
Single-Mode Fiber |
| Connection Structure: |
LC |
| Material Shape: |
Round Wire |
| Allowed Tensile Strength: |
1000n<10000n |
| Core: |
Single Core |
| Certification: |
VDE, Ce, RoHS, CCC, UL |
| Sheath Material: |
PVC |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description

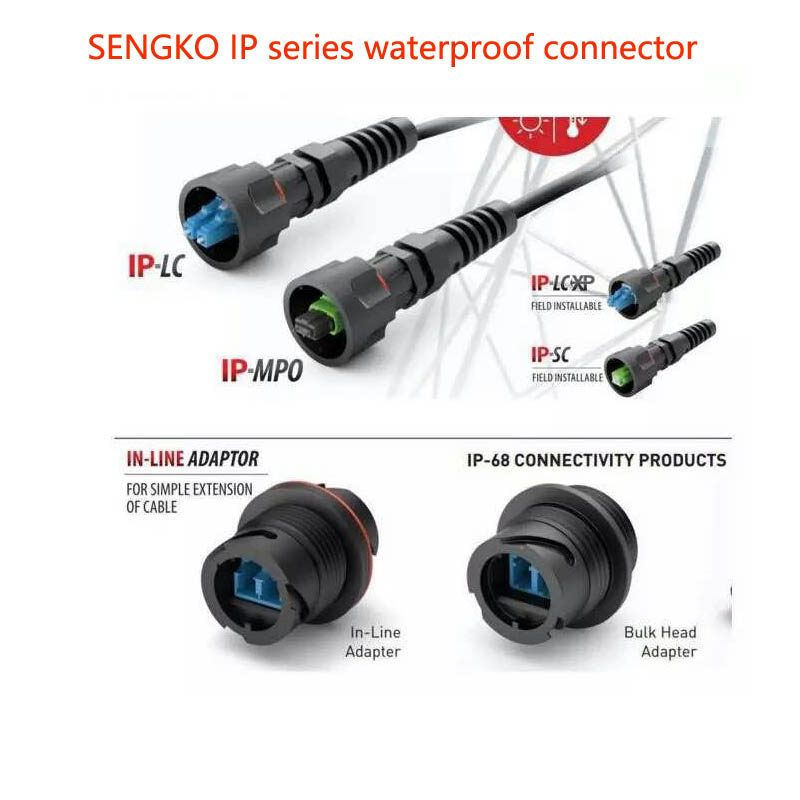

Waterproof fiber patch cord high quality factory sell directly duplex sengko IP LC connectorDescription:

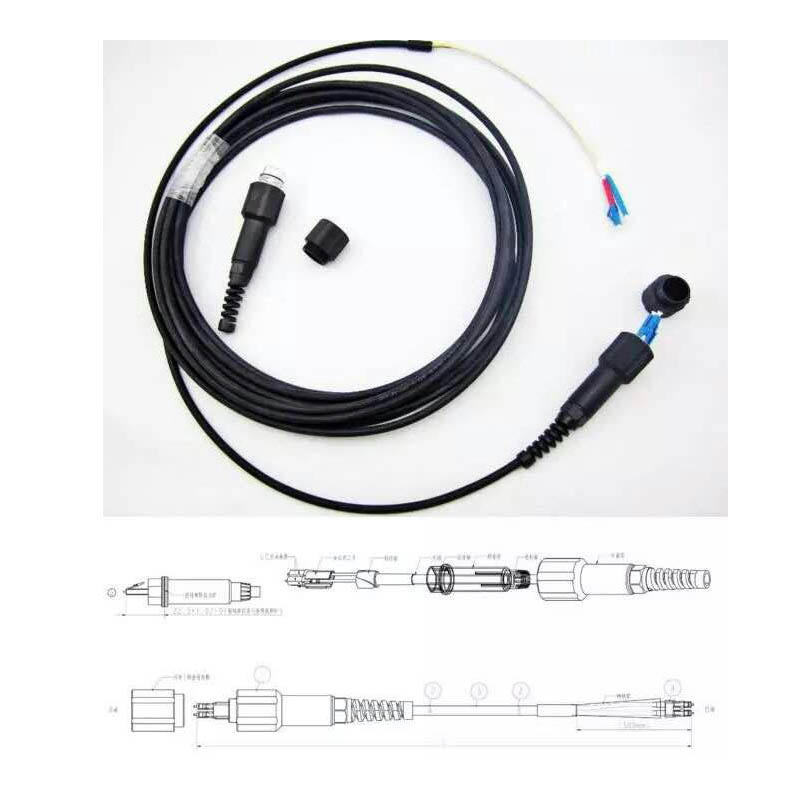

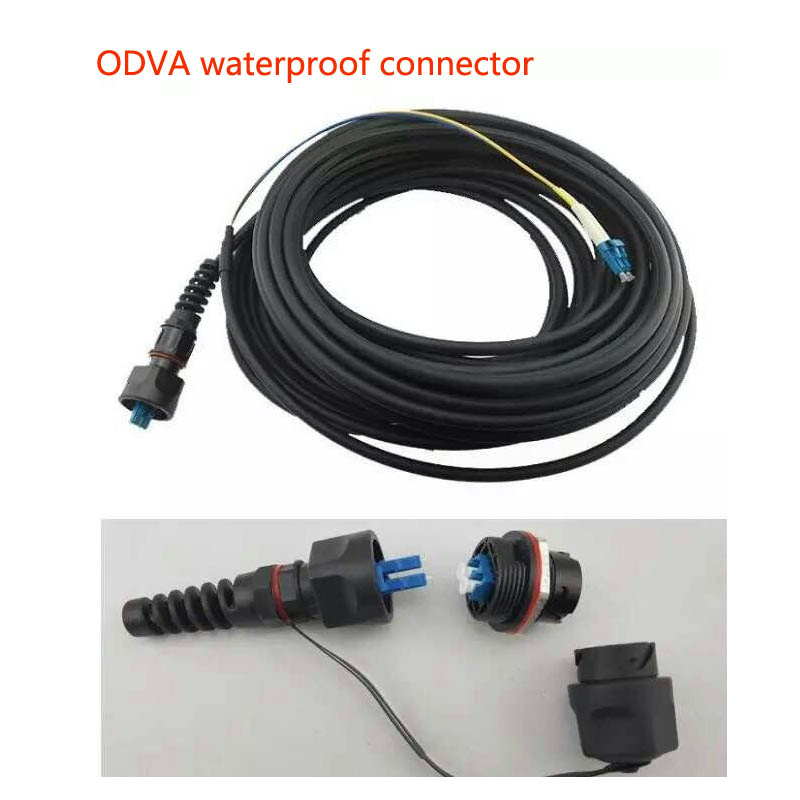

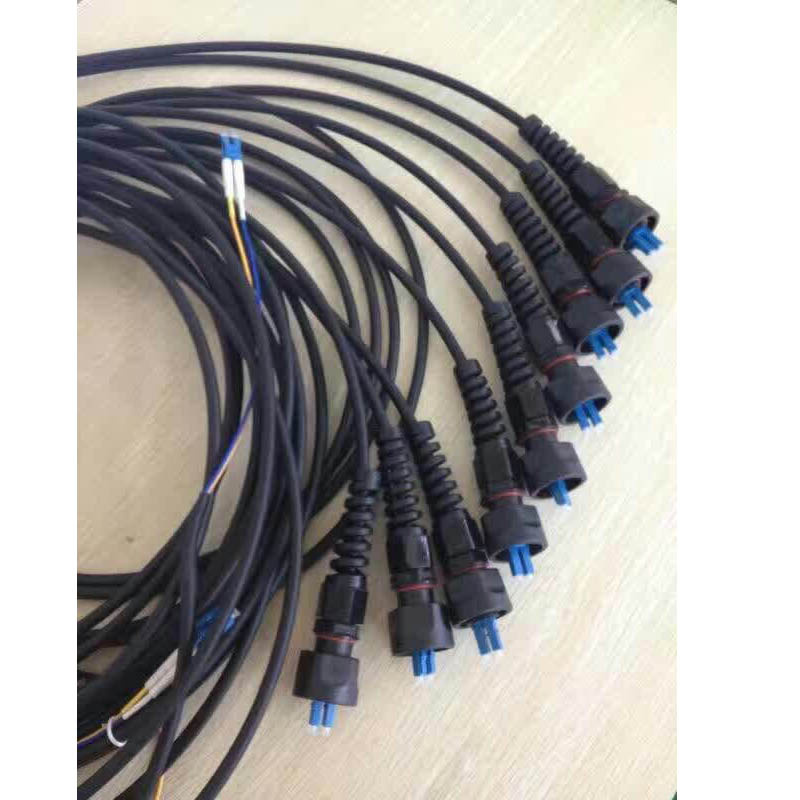

Outdoor waterproof fiber optic patch cord provides the remote wireless radio between the SFP connection and the base station, used for Telecom
applications. This new product to adapt the SFP transceiver provides the most widely in the market,
so that end users can choose to meet the specific requirements of the transceiver system.
Use the cable assembly firmly establish themselves through the bulk headis directly inserted into the
optical fiber transceiver is directly connected to the WiMax and LTE in FTTA application. Connectors
of the connection request, can accommodate a larger tolerance in Z direction.
Feature:
- Open bulkhead for easy access to SFP
- Positive feedback to operator when fully mated
- One-hand mating
- Duplex LC interface ulkhead cutouts allow for removal of transceiver through the bulkhead
- (no need to open RRH for transceiver replacement)
- Robust bayonet locking for easy, fast, and secure mating
- Multimode and singlemode
- Water proof, dust proof and corrosion resistant
- Expansion to RJ45, etc
- Plug has tolerance free design, fully free floating in Z-axis
- No Cable buckling at any time during or after installation
- Cost effective glass-filled polymer or metal die casted bulkhead
- Field installable version available
Specifications
Item | Standard |
150 N pull force | IEC61300-2-4 |
Vibration | GR3115(3.26.3) |
Salt mist | IEC61300-2-26 |
Vibration | IEC61300-2-1 |
Shock | IEC 61300-2-9 |
Impact | IEC 61300-2-12 |
Temperature /humidity | IEC 61300-2-22 |
Locking style | Bayonet |
Temperature | -40 ~+85°C |
Cycles | 50 mating |
Protection class/Rating | IP67 |
Mechanical retention | 150 N cable retention |
Interface | LC interface |
Adapter footprint | 36*36mm |
Duplex LC interconnect | MM or SM |
Tools | No need |
