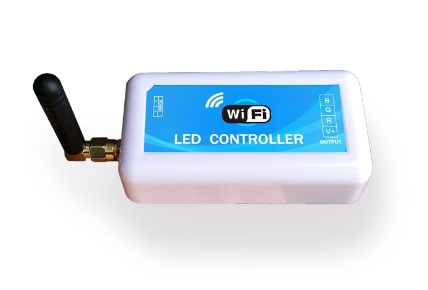

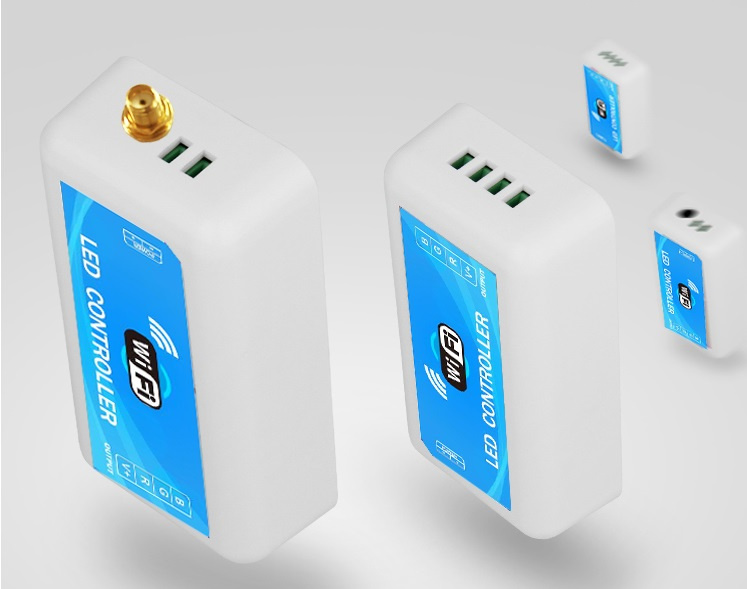

WiFi RGB LED Controller 100m Distance

Power:	288W
CCT:	Ww/ Wh/ R/ G/B/Y/RGB/RGBW Ect Available
CRI:	Ra 80 / Ra 90
Distance:	100m
Lead Time:	3 Working Days
Warranty:	3years
Application:	Building
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	RoHS
Universal:	Universal
Transmission Distance:	>100m
Material:	Plastic
Voltage:	12V-24V
Battery Type:	Power Supplier

Product Description

Description:

 WiFi Led controller is a new way to use your Smart lighting system.As a member of the jee-lite series, it is manipulated by connect to wireless router. Jee-lite is designed to make using your smart lighting system much easier and more convenient. No matter where you are, when it is, you can always control them. Functions like 16 million colors, 20 dynamic modes, music, and picture color recognize.

Function:
1. WiFi Cloud control
2. One by one or Group control.
3. 16 million colors,100 levels brightness.
4. 20dynamic modes,100levels speed.

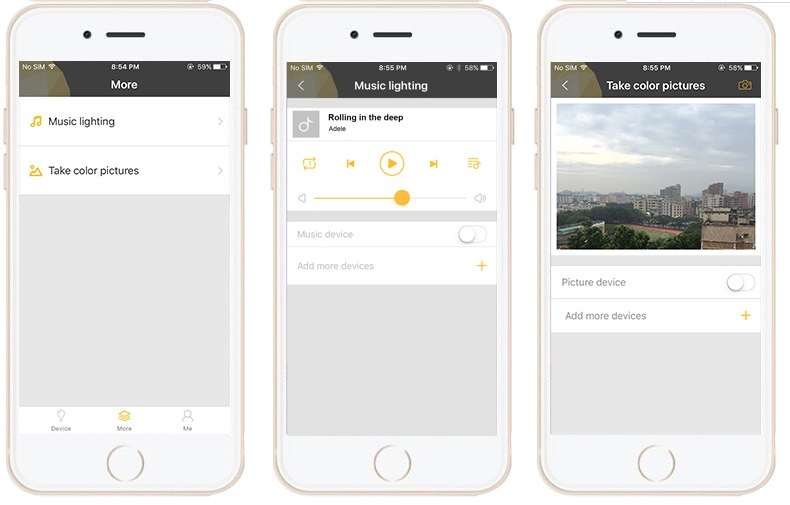

5. Music mode*! listen to your music through your microphone and change the lights to the beat!
6. Picture color recognize, and change the lights color.

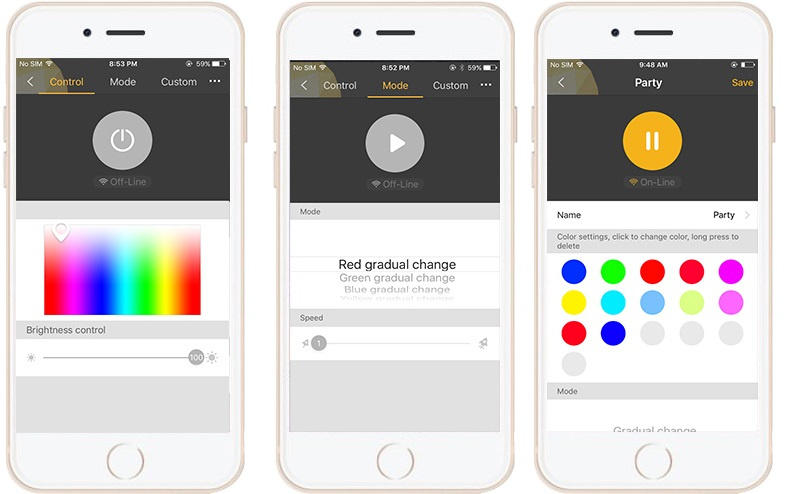

                                                                                                                                                                                                               APP interface:





                                                                                                       Cables connect ways:                                                             1. Input:DC5V, 12-24V(power adapter AC in,DC out)

2. Output:B/G/R/V+(DC5V,12-24V RGB LED Strip light,led module…)

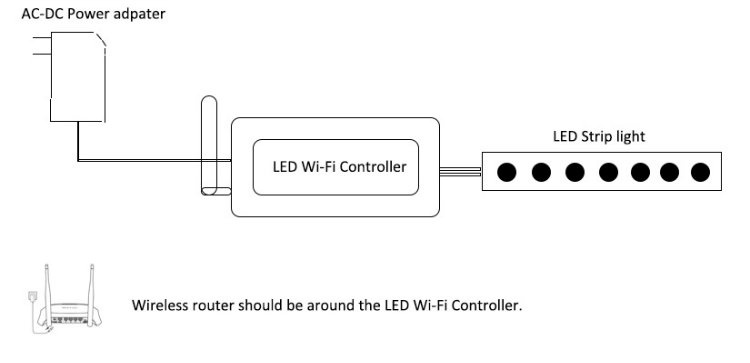

                                                                                                       Diagram



• Specifications                                                    work temperature:-20-60ºC
   input voltage:DC12~24V
   output:3CH
   Connect:Common anode
   Size:L85*W45*H23 mm
   NW:58g
   Static power consumption:<1W
   Output current:<4A/CH
   Output power:12V:<144W,  24V:<288W
   Control distance:No limit
  Distance between controller and router:100 meters in open area(Depends on the wireless router's signal transmission distance)

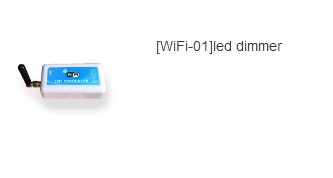

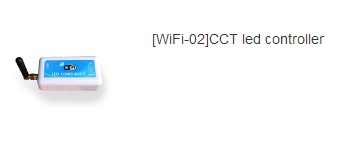

• Related products
