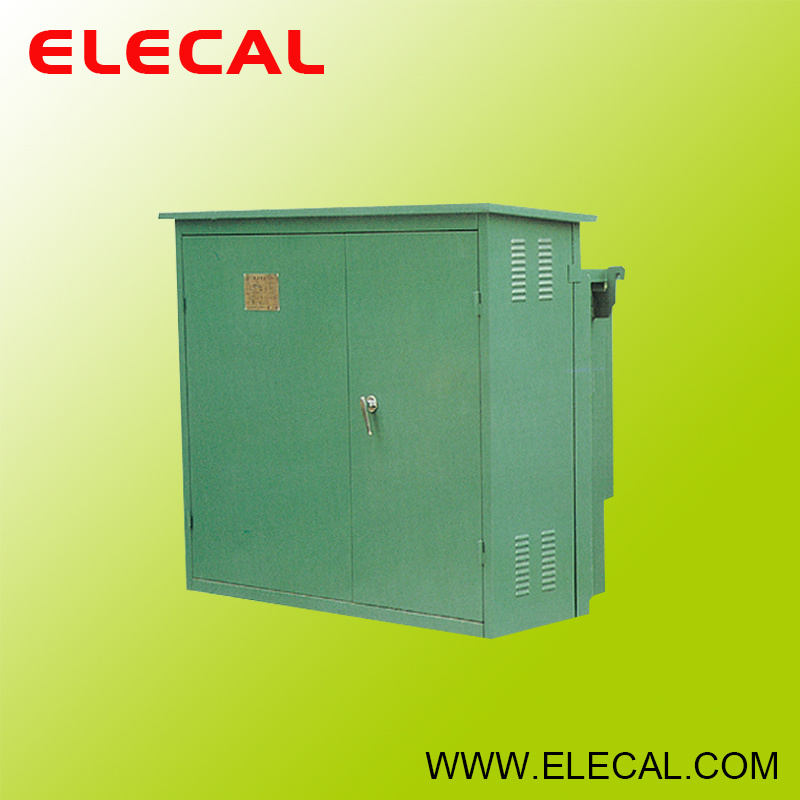

Zgs11 Series Combired Transformer

Prod Model:	ZGS11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power
Phase:	Three
Coil:	Amorphous Alloy Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Brand:	Elecal

Product Description

1.Summy
ZGS11 Combined transformer is one of the high-tech prodnets devel-oped by our company on the basis of bad-mounted Transformer. Rangeof capacity:200-1000KV/A. The produet is suitable for the reutral-pointdistribution system or small-resistance earthing system in a 10KV dis-tribution network, or the neutral-point solid grounding system of a three-phase four-wire system in a 400V distribution network, well-integrated,reliable in power supply, compact, light in weight, low noise, etc; It hastwo types of cable outlet s:ring net type and terminal type.The producet can be placed directly into the load center of 10KVnetwork, thus the line loss in reduced and power dis tribution reliabilityin increased.
2.Technical Specification

Type	Rated Capacity (KVA)	Voltage Schedule			Vector Group	Consumption(w)		No-load current (%)
		HV(KV)	Tapping	LV(KV)		No-load (KW)	load (KW)
ZGS9-H(Z)-100/10	100		±5%(±2×2.5%)	0.4	Dyn11	0.29	1.50	1.6
ZGS9-H(Z)-125/10	125					0.34	1.80	1.5
ZGS9-H(Z)-160/10	160					0.40	2.20	1.4
ZGS9-H(Z)-200/10	200					0.48	2.60	1.3
ZGS9-H(Z)-250/10	250					0.56	3.05	1.2
ZGS9-H(Z)-315/10	315					0.67	3.65	1.1
ZGS9-H(Z)-400/10	400					0.80	4.30	1
ZGS9-H(Z)-500/10	500					0.96	5.10	1
ZGS9-H(Z)-630/10	630					1.20	6.20	0.9
ZGS9-H(Z)-800/10	800					1.40	7.50	0.8
ZGS9-H(Z)-1000/10	1000					1.70	10.30	0.7
