1.8degree 20mm 2phase Hybrid Stepper with Small Motor Length

Name: 1.8degree 20mm 2phase Hybrid Stepper with Small Motor Length
Brand: all-electronics-online.com
SKU: 723514135
Availability: InStock
Rating: 4.5 (108 reviews)

Price:	US $ 6-15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK20HS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8 Degree
Phase:	2 Phase
Holding Torque:	160g.Cm-400g.Cm
Motor Weight:	0.05-0.08kg
Color:	Black or Silver
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	Three-Phase Six-Step
Type:	Electromechanical
Function:	Other
Number Of Poles:	4/6/8
Certification:	Ce and RoHS
Brand:	Jk

Product Description

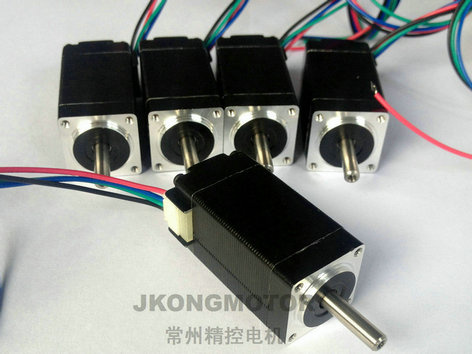

1.8 degree Size 20mm High Torque Hybrid stepper motor.
20mm size stepper motor ,
NEMA8 stepping motor,
Small stepping motors,
2 phase 20mm stepper motor
Stepper motor 20mm size

Applications:

Use for robots stepper motor,electronic automatic equipment stepping motor ,medical instrument stepping motor,
advertisement instrument stepper motor,lighting&audio equipment stepper motor ,printer stepper motor,textile machinery stepper motor.
Cnc router stepper motor.

Specifications:

Dimensions:
(Unit=mm)
About Our Factory and other Products:
WHY YOU CHOOSE US:

We are a professional manufacturer for Stepper motor , Stepper driver, BLDC motor and DC motor. we can supply OEM service. Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co.,Ltd
High quality .
Competitive price ,
Good Packing ,
Fast Delivery .
Timely after-sales service.
Believe that we will do our best!

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Motor Weight
Model No.	( °)	(L)mm	A	Ω	mH	g.cm	No.	Kg
JK20HS30-0604	1.8	30	0.6	6.5	1.7	180	4	0.06
JK20HS33-0604	1.8	33	0.6	6.5	1.7	180	4	0.06
JK20HS42-0804	1.8	42	0.8	5.4	1.5	300	4	0.08

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
