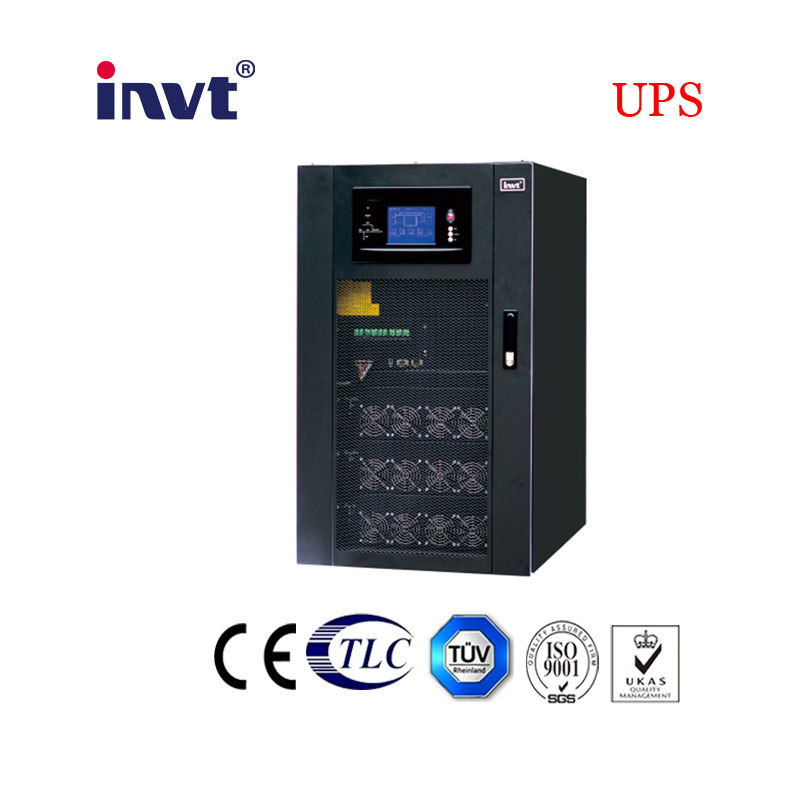

12kVA to 120kVA Modular Online UPS

Modular design

Up to 20 power modules in parallel, online hot-swappable, N+X redundancy

Independent charger

Independent charger for each module and intelligently control the whole charging process, prolong the life time of the battery

Battery cold start

UPS can be powered on from the battery without utility

Easy connection access

Top and bottom cable entry connection are supported, more convenient for site installation

High power density

120kVA with footprints of about 0.5sq.m, saving valuable data center space

Integrated IGBT design

Integrated IGBT in one module, less failure points with higher performance and reliability

Friendly interface

Touch LCD display with abundant information

Independent air channel

Cooling air run in isolated channel, keeping PCB free of dusts

MODEL		RML120/12	RML072/12	RML036/12

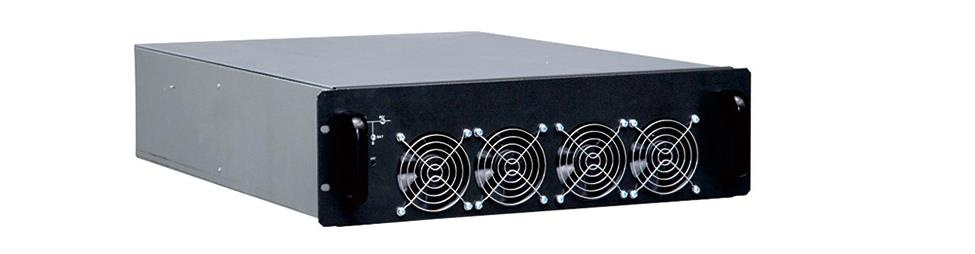

Power module		PML12 (12kVA)
INPUT
Phase		3 Phase + Neutral + Ground, 200V/208V/220V (line to line)
Voltage range		166-261Vac (line-line), full load; 166-125Vac (line-line), load derated from 100%-75% linearly
Frequency range		40Hz-70Hz
Power factor		>0.99
THDi		THDi<3% @ 100% linear load
OUTPUT
Voltage		200V/208V/220V
Voltage regulation		1.5%
Power factor		0.8
THDu		THD<1% (linear load), THD<5.5% (non-linear load)
Crest factor		3:1
Overload capability		110% for 1 hour; 125% for 10 min; 150% for 1 min; >150% for 200ms
BATTERY
Voltage		±120VDC
Charge power		20%*System Power
Charge voltage precision		±1%
SYSTEM
System efficiency		Normal mode:>92%; ECO mode:>98%; Battery mode:>92%
Display		LCD+LED, Touch Screen +Keyboard
IP class		IP20
Interface		Standard: RS232, RS485, Dry contacts; Optional: SNMP
Operation/Storage temperature		0-40ºC/-40-70ºC
Relative humidity		0-95% (non-condensing)
Noise		55dB @ (1 meter away)
PHYSICAL
Weight (kg)	Cabinet	179	145	105
	Power Module	22
Dimension (WDH) (mm)	Cabinet	6009002000	6009001600	6009001100
	Power Module	440590134

Prod Model:	RML
Power Module:	Pml12 (12kVA)
Frequency Range:	40Hz-70Hz
Voltage:	200V/208V/220V
Voltage Regulation:	1.5%
Power Factor:	0.8
Charge Power:	20%*System Power
IP Class:	IP20
Operation/Storage Temperature:	0-40ºC/-40-70ºC
Phase:	Three Phase
Type:	On-line
Protection:	Short Circuit
Brand:	Invt
