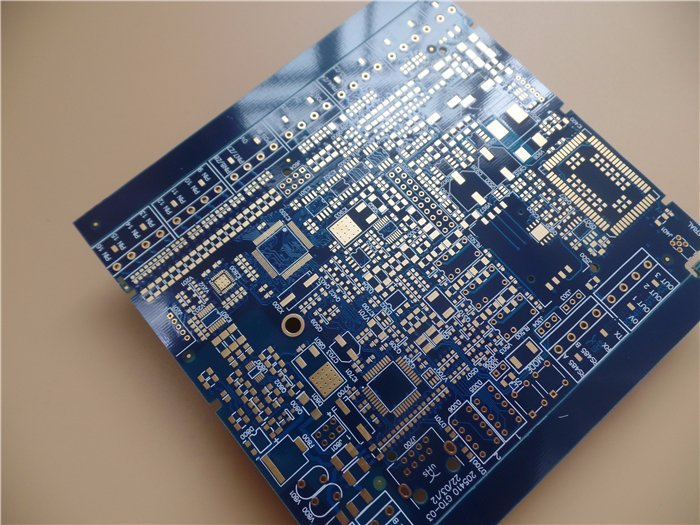

20 Layer PCB Blind Via Tacoinc Tly-5 PCB Circuit Board
| Price: |
US $ 1.02/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
BIC-626-V6.26 |
| Final Foil External: |
1.5 Oz |
| Final Height Of PCB: |
0.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Minimum Trace And Space: |
4 Mil/4 Mil |
| Minimum / Maximum Holes: |
0.3/0.5mm |
| Inner Copper Thick: |
0.5 Oz |
| Impedance Control: |
Differential Pairs,91 Ohm,Single Trace,49 Ohm |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4003c and Fr4 |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |

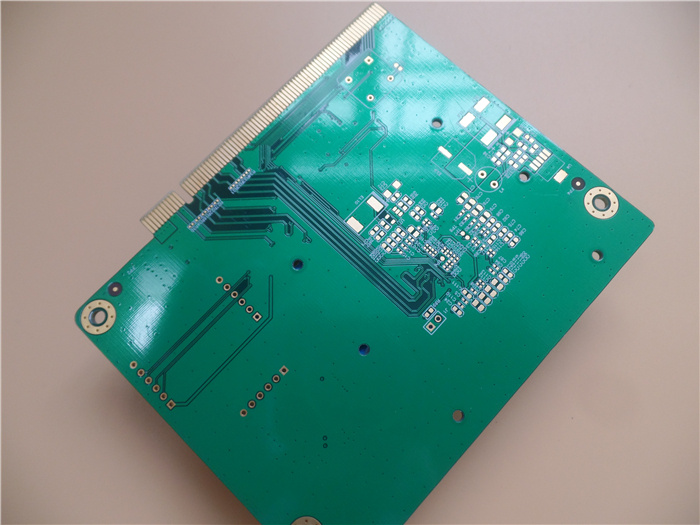

Product Description
Company Profile
You're benefit from following 5 types of 2 layer PCB's from Bicheng Enterprise Limited.
(1) FR-4 material (The most common used today)
Normal TG, High TG 170, High CTI 600V
Material (CCL) Brand: ITEQ, SHENGYI, KB
(2) High frequency material
RO4350B, RO4003C
PTFE (F4B series from China Brand)
(3) Insulated Metal Substrate (IMS) PCB, typical stack-up as follows
L1---Copper conductor
PP---dielectric material
L2---copper conductor
PP---dielectric material
AL---aluminum base
(4) Metal core PCB (MCPCB), typical stack-up as follows
L1---copper conductor
PP---dielectric material
AL---aluminum core
PP---dielectric material
L2---copper conductor

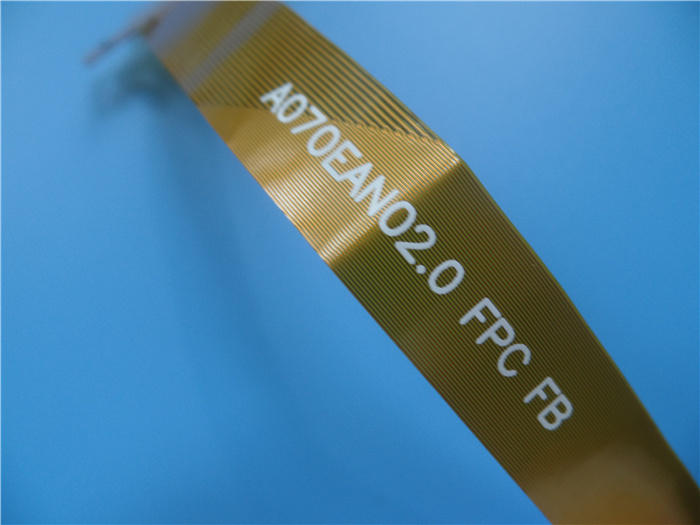

(5)Polyimide material (Flexible PCB)

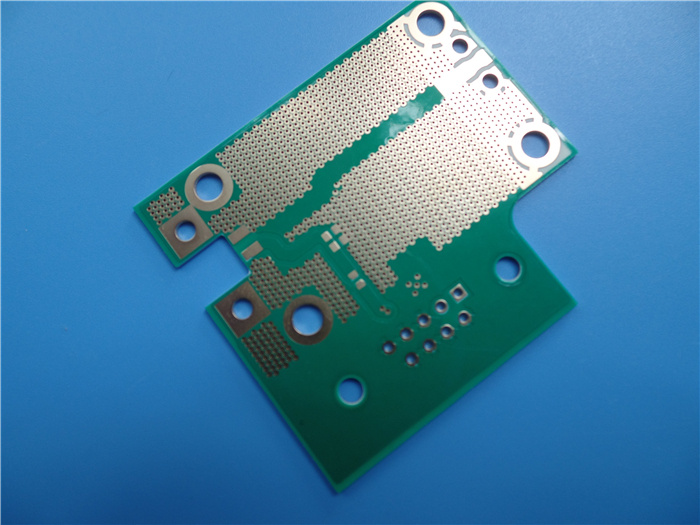

High Frequency PCB
Flexible Printed Circuit

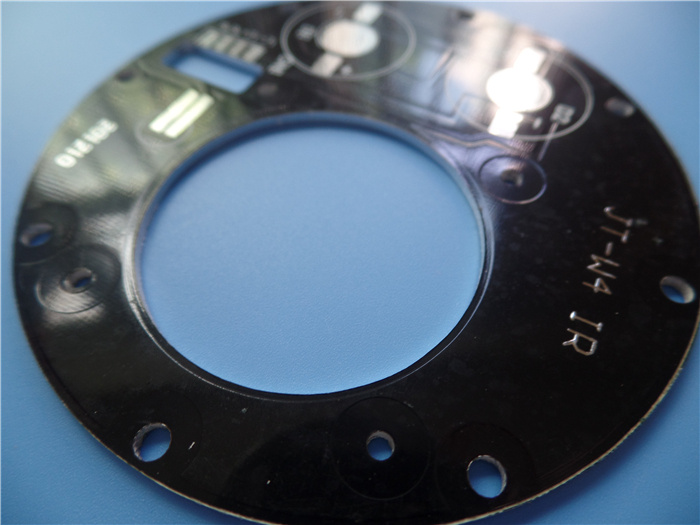

Metal Core PCB
PCB Board
Technology InformationRO4350B & RO4003C Data Sheets| Property | Typical Value | Direction | Units | Condition | Test Method |
| | RO4003C | RO4350B | | | | |
Dielectric
Constant,
εr Process | 3.38±0.05 | 3.48±0.05 | Z | - | 10 GHz/23ºC | IPC-TM-
650 2.5.5.5
Clampled
Stripline |
Dielectric
Constant,
εr Design | 3.55 | 3.66 | Z | - | 8 to 40
GHz | Differntial
Phase
Length
Method |
Dissipation
Factor Tan,
δ | 0.0027
0.0021 | 0.0037
0.0031 | Z | - | 10 GHz/23ºC
2.5 GHz/23ºC | IPC-TM
-650
2.5.5.5 |
Thermal
Coefficient
of εr | 40 | 50 | Z | ppm/ºC | minus 50ºC
to 150ºC | IPC-TM
-650
2.5.5.5 |
Volume
Resistivity | 1.7 x 10¹º | 1.2 x 10¹º | | MΩ·CM | COND A | IPC-TM
-650
2.5.17.1 |
Surface
Resistivity | 4.2 x 10^9 | 5.7 x 10^9 | | MΩ | COND A | IPC-TM
-650
2.5.17.1 |
Electrical
Strenghth | 31.8 (780) | 31.2 (780) | Z | KV/mm
(V/mil) | 0.51mm
(0.020") | IPC-TM
-650
2.5.6.2 |
Tensile
Modulus | 19650(2850)
19450(2821) | 16767 (2432)
14153 (2053) | X Y | Mpa(ksi) | RT | ASTM
D638 |
Tensile
Strength | 139(20.2)
100(14.5) | 203(29.5)
130(18.9) | X Y | Mpa(ksi) | RT | ASTM
D638 |
Flexural
Strength | 276 (40) | 255 (37) | | Mpa(kpsi) | | IPC-TM
-650
2.4.4 |
Dimensional
Stability | <0.3 | <0.5 | X,Y | mm/m
(mils/inch) | after etch
E2/150ºC | IPC-TM
-650
2.4.39A |
Coefficient
of Thermal
Expansion | 11 14 46 | 10 12 32 | X Y Z | ppm/ºC | minus 55ºC
to 288ºC | IPC-TM
-650
2.4.41 |
| Tg | >280 | >280 | | ºC TMA | A | IPC-TM
-650
2.4.24 |
| Td | 425 | 390 | | ºC TGA | | ASTM
D3850 |
Thermal
Conducvitity | 0.71 | 0.69 | | W/m/ºk | 80ºC | ASTM
C518 |
Moisture
Absorption | 0.06 | 0.06 | | % | 48 hrs
immersion
0.060"
sample
Temperature
50ºC | ASTM
D570 |
| Density | 1.79 | 1.86 | | gm/cm³ | 23ºC | ASTM
D792 |
Copper Peel
Strength | 1.05 (6.0) | 0.88 (5.0) | | N/mm
(pli) | after solder
float 1 oz.
EDC Foil | IPC-TM
-650
2.4.8 |
| Flammability | N/A | V-0 | | | | UL 94 |
Lead-Free
Process
Compatible | Yes | Yes | | | | |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
