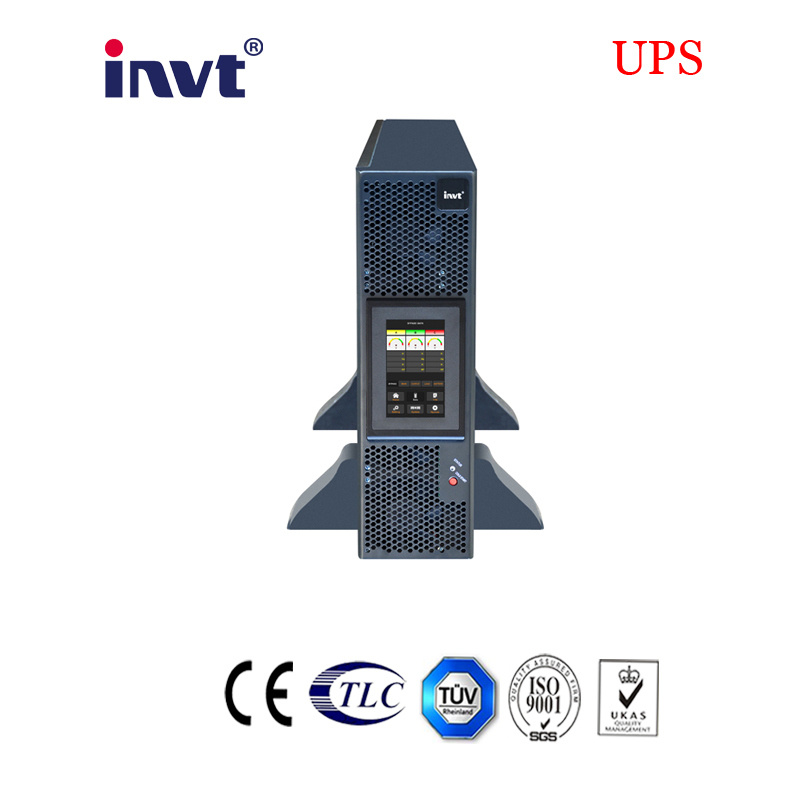

25kva 3 Phase Rack Online UPS

The HR33 Series Rack is double conversion online UPS with fully DSP controlled technology. With its flexible
configuration of 3/3 and 3/1, compact design, it's the ideal choice for modern data center.

Application
IDC(Internet Data Center), network servers and workstation, control system, communication system, office, PC etc

Features
Rack Design
Rack design, compatible with 19" standard rack cabinet, convenient to be integrated with servers
Friendly Interface
5.5" touch color LCD with graphic display, more information displayed and easier for customer to operate
Flexible configuration
The system can be configured to 3/3 and 3/1
Intelligent charging management
The system intelligently

MPDEL	HR33015C	HR33020C	HR33025C
Power Rating	15KVA/15KW	20KVA/20KW	25KVA/25KW
Main
Input	3 P + N+ PE
Rate Voltage	380/400/415VAC (line-ine)
Rate Frequency	50/60Hz
Input Voltage Range	304~478Vac (line-ine),full load 228V~304Vac (line-ine),full load; 228V~304Vac(line-ine),derate from 75% to 100% load
Input Frequency Range	40Hz~70Hz
Input PF	>0.99
Input THDi	<3% (100% Linear Load)
Bypass
Rate Voltage	380/400/415Vac (line-ine)
Rate Frequency	50/60Hz
Input Voltage Range	Selectable, -40%~+25%
Bypass Frequency Range	Selectable, ±1Hz, ±3Hz, ±5Hz
Bypass Overload	100%, Long time;125%,5mins;150%,1min;>150%,1s
Output
Rate Voltage	380/400/415Vac (line-ine)
Rate Frequency	50/60Hz
Output PF	1
Output THDu	<1%, Linear load;<6%, Non-linear load (IEC/EN62040-3)
Inverter Overload	110% for 1 hour;125% for 10 min;150% for 1min;>150% for 200ms
Battery
Battery number	±240VDC
Charger Accuracy	1%
Charger Capacity	up to 20% *Output power
Battery Cold Start	Yes
Efficiency
AC Mode	>96.0%
Battery Mode	>95.5%
System
Display	LED + LCD+Touch Screen
Interface	RS232, RS485, Programmable dry contact
Option	SNMP Card,Parallel,SPD
Environmental
Operation Temperature	0 ~ 40 ºC
Storage Temperature	-40 ~ 70 ºC
Relative Humidity	0 ~ 95% Non condencing
Noise (1 meter)	65dB @ 100% load, 62dB @ 45% load
Phisical data
Dimension WDH (mm)	438780130	438780130	438780130
Weigh (kg)	30	30	30

Prod Model:	HR33
Input:	3 P + N+ PE
Rate Voltage:	380/400/415VAC (Line-Ine)
Rate Frequency:	50/60Hz
Input Frequency Range:	40Hz-70Hz
Input PF:	1
Bypass Overload:	100%, Long Time;125%,5mins;150%,1min;>150%,1s
Battery Number:	±240VDC
Certification:	Ceiso9001/TUV/ISO9001:2008/ISO1400`:2004
Phase:	Three Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Invt
