3: 1 Phase Tower Online UPS for Computers

Name: 3: 1 Phase Tower Online UPS for Computers
Brand: all-electronics-online.com
SKU: 840406685
Availability: InStock
Rating: 4.8 (91 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	HT31
Capacity:	20kVA
Input PF:	0.95
Input Frequency Range:	40Hz-70Hz
Output PF:	0.9
Output Voltage:	220V/230V/240V
Battery Voltage:	192VDC
Display:	LED+LCD
Voltage Regulation:	1.5%
Battery Type/Number:	External
Phase:	Three Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Invt

Product Description

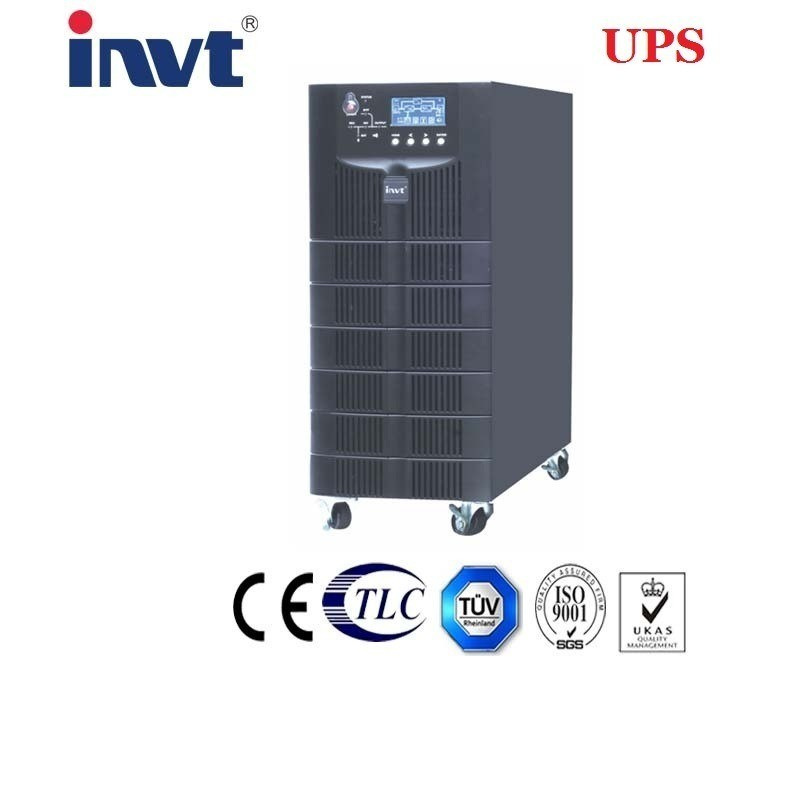

3: 1 Phase Tower Online UPS for Computers

HT31 series is online double-conversion UPS with fully DSP controlled technology. With high input and output power factor, self- adjusting output frequency and network management, HT31 is perfect choice for computers, telecommunication equipments and other sensitive devices.

Application
IDC(Internet Dater Center),network,servers and workstations,office etc

Features
Wide range of input voltage and high input power factor
Output PF of 0.9
Full protection of overvoltage, circuit short and over temperature
LCD display, monitoring all the operation status
Auto fan speed adjustment
Abundant interface:RS232,USB, SNMP, Intelligent Card

Specification

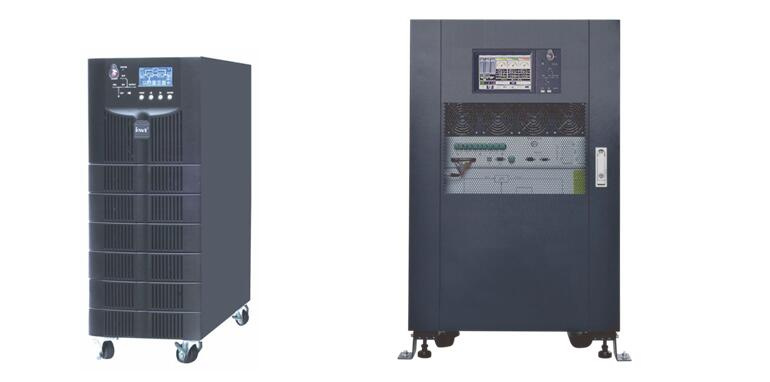

MODEL	HT3110S	HT3115L	HT3120L	HT3140L
	HT3110L
Capacity	10kVA	15kVA	20kVA	40kVA
Phase	Three phase in,Single phase out
Input voltage range	50%-125%(220VAC/230VAC/240VAC)
	100% load@80%-125%; 90% load@70%-80% 80% load@60%-70%; 65% load@50%-60%
Input PF	0.95			0.99
Input frequency range	40Hz-70Hz
Output PF	0.9
Output voltage	220V/230V/240V
Voltage regulation	1.5%
THDu	1% (full linear load ); 5%(non-linear load)
Battery voltage	192VDC			±240VDC
Battery type/number	12V,9Ah*16	External	External	External
	External
System efficiency	Normal :93.5%; ECO :98%; Battery:92%			Normal:95%; ECO:98%; Battery:95%
Noise(1 meter away)	<53dB@<70%load;66dB@>70%load			65dB @ 100%load, 62dB @ 45%load
Overload capability (Inverter mode)	110%:for 10 min ;130%:for 1 min ; 150%:for 30 sec (shut down the bypass after 1 min)
Overload capability (Battery mode)	110%: shut down after 10 min; 125%:shut down after 10 sec; >125%: shut down after 1 sec
Crest factor	3:1
Display	LED+LCD
Interface	Standard:RS232,EPO Optional: USB, SNMP, Dry contacts			Standard: RS232, RS485, USB, Dry contacts Optional: SNMP,AS/400, parallel kit, Battery cold start
WDH(mm)	250562770	250562650	250562710	600980950
	250562650
Weight(kg)	69	27	34	170

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
