4 Layer Hybrid PCB with RO4003c and Fr4 Combined
| Price: |
US $ 0.95/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-992-V9.92 |
| Final Foil External: |
1.0 Oz |
| Final Height Of PCB: |
1.1mm ±0.11 |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
None |
| Colour Of Component Legend: |
None |
| Minimum Trace And Space: |
5 Mil / 6 Mil |
| Minimum / Maximum Holes: |
0.3/5.5 mm |
| Final Foil Internal: |
1 Oz |
| Via: |
Via Open |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4003c and Fr4 |
| Material: |
Hydrocarbon/Woven Glass and Fiberglass Epoxy |
| Insulation Materials: |
Glass Reinforced Hydrocarbon and Epoxy Resin |
Product Description
1.1 General description

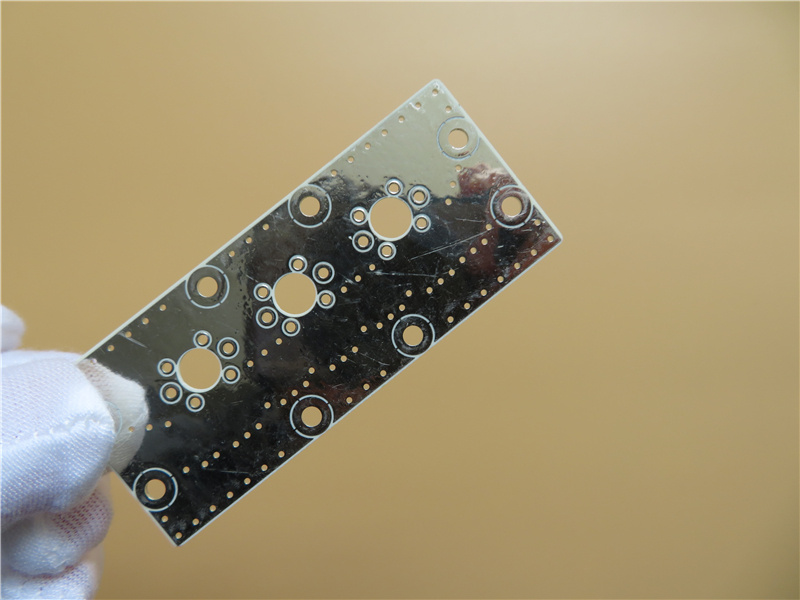

This is a type of high frequency PCB built on RO4003C and FR4 combined for the application
of analogue transmitter. It's a 4 layer RF PCB board at 1.1 mm thick. It's immersion gold finish with
solder mask and silkscreen. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each
20 boards are packed for shipment.
1.2 Features and benifits
a. The characteristic of low dielectric loss makes the signal loss at a lower level, which makes
the signal transmission of the whole equipment excellent.
b. Stable electrical coefficient of dielectric constant.
c. Delamination of copper foil will not be caused by the change of cold and heat due to the
consistency with the thermal expansion coefficient of copper foil.
d. Immersion gold has excellent surface planarity, particularly helpful for PCBs with BGA
packages or even CSP mounted components to reduce failure rate during assembly and
soldering.
e. PCB manufacturing strictly as per required specifications.
f. Meeting your printed circuit board needs from PCB prototyping to mass volume production.
g. Reduce manufacturing cost from advanced equipment import, worker training and technology
improvement and management.
h. International approvals
i. RoHS materials
1.3 Application
Uhf radio, Directional coupler, Analogue transmitter, Base station antenna
1.4 Parameter and data sheet | PCB SIZE | 70 x 28mm=1PCS |
| BOARD TYPE | Hybrid PCB |
| Number of Layers | Multilayer PCB, 4 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| RO4003C 0.203mm (8 mil) |
| copper ------- 35um(1oz) MidLayer 1 |
| FR-4 0.50 mm |
| copper ------- 35um(1oz) MidLayer 2 |
| FR-4 0.20 mm |
| copper ------- 17um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5 mil / 6 mil |
| Minimum / Maximum Holes: | 0.3/5.5 mm |
| Number of Different Holes: | 8 |
| Number of Drill Holes: | 97 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 1 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4003C 0.203 mm (8 mil) and FR-4 0.20 mm combined |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.1mm ±0.11 |
| PLATING AND COATING | |
| Surface Finish | HASL Lead free |
| Solder Mask Apply To: | N/A |
| Solder Mask Color: | N/A |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | N/A |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), via open |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
