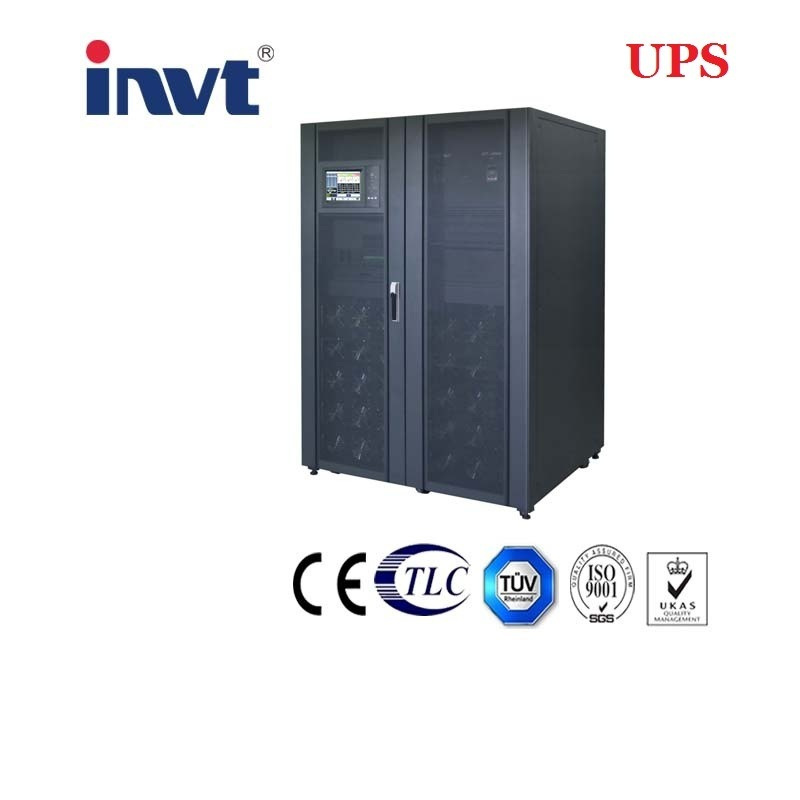

4 U Height 50kVA Power Module Online UPS
Price: |
Negotiable/Set |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Western Union |
4 U height 50kva Power Module Online UPS 40-500kVA (380V/400V/415V )
The RM series modular, online UPS ranging from 40kVA to 500kVA is designed to protect any critical load for medium and large data center achieving maximum availability. The RM series feature the latest technology of 3-level technology and PFC input control, which guarantees high efficiency of 96% and ultra-reliability. Its compact design ensures power density of 500kVA in one cabinet, 3 units can be paralleled for capacity or redundancy up to 1500kVA, making it an excellent choice for medium and large facilities.
Features
Compact design
500kVA in one cabinet, footprint less than 1.45m² ,saving valuable room space
High power density
50kVA power module in 4 U height, easy for capacity expansion
High efficiency
Advanced 3-level technology guarantees
high efficiency operating in double conversion mode up to 96%
Intelligent charging management
The system intelligently control the whole process of the charging and discharging,effectively improve the life time of the battery
High scalability
The system can be configured from 40kVA to 500kVA in one single cabinet,3 units in parallel for a capacity up to 1500kVA
Friendly HMI
10.4" touch color LCD with graphic display, independent LCD for each power module
Smart sleep function
System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiency
Multi communication interface
Provide RS232,RS485,USB,SNMP,AS400and programmable dry contacts MODEL | RM500/50X | RM400/40X |
Capacity | 500kVA/450kW | 400kVA/400kW |
Power module | PM50X(50kVA/45kW) | PM40X(40kVA/40kW) |
INPUT |
Phase | 3P+ N + G (380/400/415V) |
Voltage range | 304-478Vac (line-line),100% load; 304-228Vac, load derated from 100%-75% linearly |
Frequency range | 40Hz-70Hz |
Power factor | >0.99 |
THDi | THDi<3% @ 100% linear load |
OUTPUT |
Voltage | 380/400/415V |
Voltage regulation | 1.5% |
Power factor | 0.9 | 1.0 |
THDu | THD<1%(linear load ),THD<5.5%(None linear load) |
Crest ratio | 3:1 |
Overload capability | 110% for 1 hour; 125% for 10 minutes ;150% for1 minute; >150% for 200ms |
BATTERY |
Voltage | ±240VDC |
Charge power | 20%*System Power |
Charge voltage precision | ±1% |
SYSTEM |
System efficiency | Normal mode:96% ;Battery mode:96% |
Display | 10.4" Color touch screen LCD + LED + Keyboard |
IP class | IP20 |
Interface | Standard :RS232,RS485,USB,Dry contacts(programmable); Optional: SNMP ,AS400,Parallel kit, Battery cold start(standard for 250kVA and above), Lightning protection components, Dust filter, LBS |
Operation/Storage temperature | 0-40ºC/-25-70ºC |
Relative humidity | 0-95%(non-condensing) |
Noise | 72dB @ 100% load; 69dB @ 45% load (1 meter away) |
PHYSICAL |
Weight | Cabinet | 900kg |
Power module | 45kg 44kg |
Dimension (W*D*H) | Cabinet | 1300*1100*2000 mm |
Power module | 510*700*178 mm |
Prod Model: |
RM |
Output Power Factor: |
0.9/1.0 |
Output Voltage: |
380/400/415V |
Module Capacity: |
40kVA/50kVA |
UPS Power: |
500kVA |
Display: |
Touch LCD/LED/Keyboard/Screen |
Color: |
Black |
Frequency Range: |
40Hz-70Hz |
High Power Density: |
50kVA Power Module in 4 U Height |
Phase: |
Three Phase |
Type: |
On-line |
Protection: |
Overvoltage |
Brand: |
Invt |
As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.
The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.
INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
