5 Oz Copper Board 2 Layer PCB with 2.4mm Thick
| Price: |
US $ 0.79/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
BIC-207-V2.07 |
| Final Foil External: |
5 Oz |
| Final Height Of PCB: |
2.4mm |
| Surface Finish: |
Hot Air Soldering Leveling(HASL),Lead Free |
| Solder Mask Color: |
Blue |
| Colour Of Component Legend: |
White |
| Minimum Trace And Space: |
14 Mil/29 Mil |
| Minimum / Maximum Holes: |
0.55/40.0mm |
| Test: |
100% Electrical Test |
| Via: |
Plated Through Hole(Pth) |
| Board Plating: |
0.0030" |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

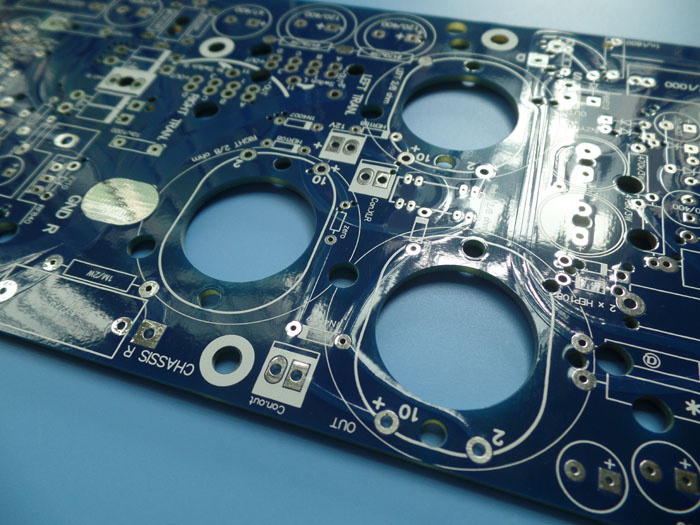

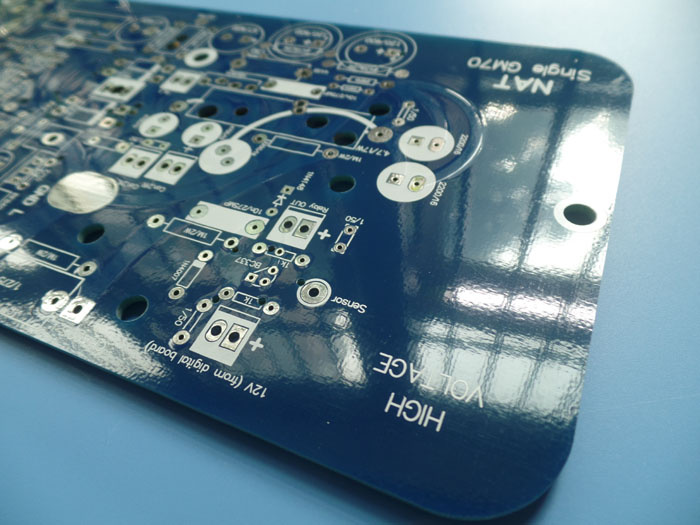

Heavy Copper 5oz PCB Board Fab 2.4mm Thick Double Sided With Blue Solder Mask Lead RoHS
compliance in UPS Power Supply
Commodity Introduction This is a type of FR-4 PCB for the application of UPS Power Supply. It's a 2 layer board at 2.4mm thick. The
base laminate is from ITEQ, Solder mask and silkscreen from Kuangshun and Taiyo. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 260 x 153mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB, 2 Layer PCB |
| Surface Mount Components | NO |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 175um(5oz)+plate TOP layer |
| FR-4 2.0mm |
| copper ------- 175um(5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 14mil/29mil |
| Minimum / Maximum Holes: | 0.55/40.0mm |
| Number of Different Holes: | 15 |
| Number of Drill Holes: | 684 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140 TG>135, er<5.4 |
| Final foil external: | 5oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 2.4mm ±0.24 |
| PLATING AND COATING | |
| Surface Finish | Hot air soldering leveling(HASL),lead free, Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Blue, KSM-6189BL04, Kuangshun supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Power Transformer
12 Volt Power Supply
Ac To Dc Converter
12V Inverter
Buck Converter
UPS Power Supply |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Learn PCB and Buy PCBFrequently used Unit Conversion in PCB industry 1 inch= 25.4mm1 inch= 1000mil1 foot = 12 inch=0.3048 meter 1mm = 39.37mil1mm = 1000µm1µm = 39.37 micro inch 1oz = 35µm = 1.4mil = 305g/m² 1inch² = 0.0645dm² = 6.4516cm² = 645.16mm²1ft² = 144 inch² = 0.09290304m² = 9.29dm²1m² = 1549.9969 inch²
