| Prod Model: |
RM |
| Output Power Factor: |
0.8/0.9 |
| Output Voltage: |
380V/400V/415V |
| Battery Voltage: |
240VDC |
| Frequency Range: |
From 40Hz to 70Hz |
| Display: |
LCD/LED/Touch Screen/Keyboard |
| Certification: |
Ce ISO9001/ISO14001/ISO18001 |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Invt |
Product Description

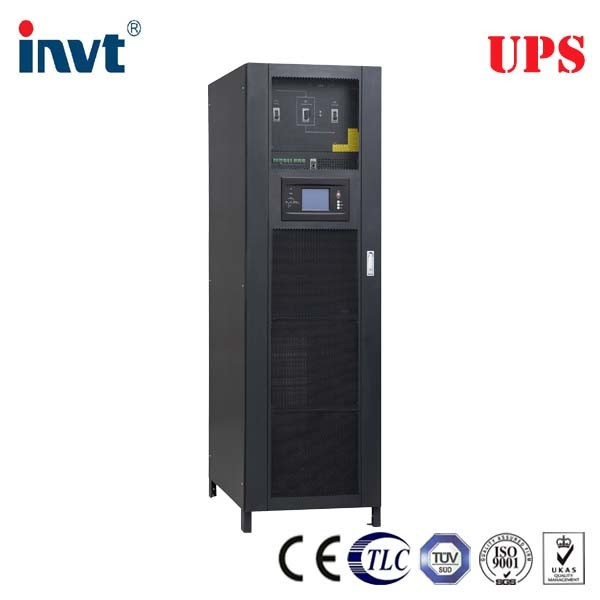

60kVA High Frequency Modular Online UPS20-200kVA (380V/400V/415V)RM series is modular online UPS for sensitive equipments. The single cabinet power rating covers from 20kVA to 200kVA. With the latest IGBT three-level and full DSP control technology, the RM series delivers the best of combination of reliability, hot-swappable and flexibility.

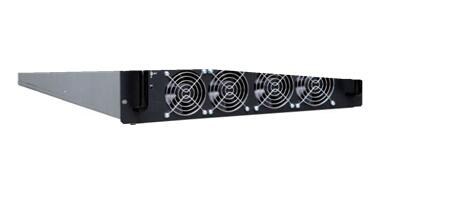

FeaturesModular designUp to 20 power modules in parallel online hot-swappable N+X redundancy Independent chargerIndependent charger for each module and intelligently control the whole charging process, prolong the life time of the
battery
Battery cold startUPS can be powered on from the battery without utility Easy connection accessTop and bottom cable entry connectionare supported, more convenient for site installation Modular design with transformerModular UPS up to 60kVA with in-built isolation transformer, meeting different requirement for customersHigh power density200kVA with footprints of about 0.5sq.m ,saving valuable data center space Integrated IGBT designIntegrated IGBT in one module, less failure points with higher performance and reliability Friendly interfaceTouch LCD display with abundant information Independent air channelCooling air runs in isolated channel, keeping PCB free of dust
MODEL |
RM200/20 |
RM120/20 |

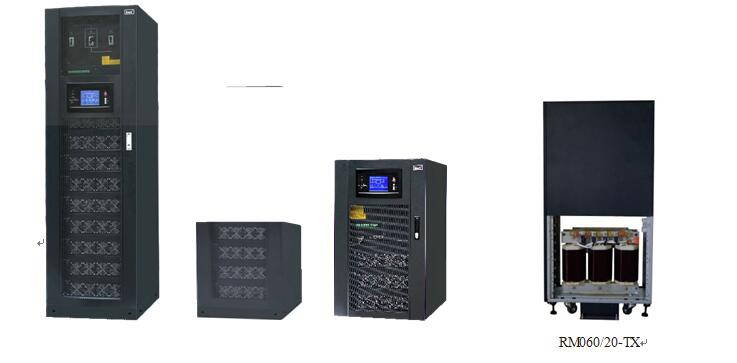

RM060/20 | RM060/20-TX
(In-built transformer) |
| | 200kVA/180kW | 120kVA/108kW | 60kVA/54kW | 60kVA/48kW |
| Power module | PM20(20kVA) |
| INPUT | |
| Phase | 3 Phase + Neutral + Ground,380V/400V/415V(line to line) |
Voltage range |
304-478Vac (line-line),full load;
228V-304Vac (line-line),load decrease linearly according to the min phase voltage |
| Frequency range | 40Hz-70Hz |
| Power factor | >0.99 |
| THDi | THDi<3% @ 100% linear load |
| OUTPUT |
| Voltage | 380V/400V/415V |
| Voltage regulation | 1.5% |
| Power factor | 0.9 | 0.8 |
| THDu | THD<1%(linear load ),THD<5.5%(non-linear load) |
| Crest factor | 3:1 |
| Overload capability | 110% for 1 hour; 125% for 10 min ;150% for 1 min; >150% for 200 ms |
| BATTERY |
| Voltage | ±240VDC |
| Charge power | 20%*System Power |
| Charge voltage precision | ±1% |
| SYSTEM |
| System efficiency | Normal mode:95% ;ECO mode:99% ;Battery mode:95% |
| Display | LCD+LED, Touch Screen +Keyboard |
| IP Class | IP20 |
Interface |
Standard:RS232,RS485,Dry contacts;
Optional: SNMP |
| Operation/Storage temperature |
0-40ºC/-40-70ºC |
| Relative humidity | 0-95%(non-condensing) |
| Noise | 55dB (1 meter away) |
| PHYSICAL |
Weight | Cabinet | 179kg | 145kg | 105kg | 400kg |
| Power Module | 22kg |
Dimension (W*D*H) | Cabinet | 600*900*2000(mm) | 600*900*1600(mm) | 600*900*1100(mm) | 600*900*1600(mm) |
| Power Module | 440*590*134(mm) |
As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.
The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.
INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
