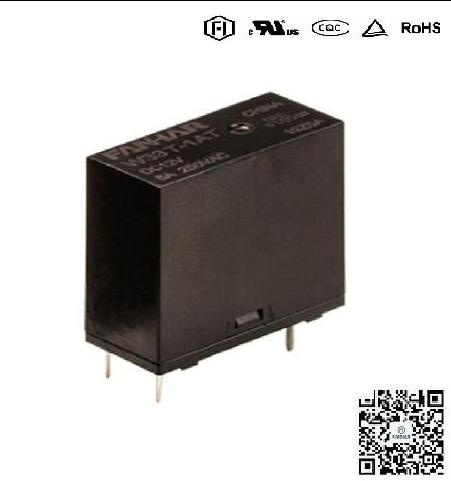

Agsno2 Power Relay for Energy Meter

Name: Agsno2 Power Relay for Energy Meter
Brand: all-electronics-online.com
SKU: 828006855
Availability: InStock
Rating: 4.7 (108 reviews)

Price:	US $ 0.3-0.36/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Basic Info

Model NO.: W33T
Contact Form: 1A = 1 OPEN CONTACTS
Load: Nil= Standard E = High Load(16A)
Contact material: T=AgSnO2
Insulation system: Nil: B level F: F level
Dimension: 23.8*10.5*24.5 MM
Weight: Approx 12g
Trademark: FANHAR
Origin: China

Product Description
1. 8A contact switching capability
2.Creepage distance and spacial distance are greater than 6mm
3. Normally open type has the UL certification of TV-5 125VAC, the impact current is 78A
4. UL Insulation class :F grade

Contact Data:

Contact Form	1A
Rated load	10A 250VAC/30VDC 16A 250VAC/30VDC
Max Switching Voltage	277VAC/30VDC
Max Switching Current	16A
Max Switching Capacity	1250VA/150W
Min allowing load	5VDC 100mA
Contact Resistance	100mΩ (at 6VDC 1A)
Insulation Resistance	1000MΩ (at 500VDC)

General Data:

Withstand Voltage Between open contacts	1000VAC 1min
Between coil and contacts	4000VAC 1min
Withstand impact voltage	Between coil and contacts 8KV(1.2x 50us)
Operate Time	Max.20ms
Release Time	Max.15ms
Mechanical life	5,000,000 ops ON/OFF = 0.1s/0.1s
Electrical life	16A 250VAC/30 VDC 50,000 ops ON/OFF=1s/9s 10A 250VAC/30 VDC 100,000 ops ON/OFF=1s/9s
Impact Resistance Misoperation Durability	100m/s² Approx10G 1000m/s² Approx100G
Vibration Resistance Misoperation Durability	10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude
Temperature Range	-40ºC to +85ºC
Humidity	5% to 90%
Installation type	PCB Mounting
Certification	UL/C-UL:E475405

Coil Data:
Standard:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 5V	Below 75% rated voltage (initial)	Above 5% rated voltage (initial	106mA	47Ω	530mW	90-130 % Rated voltage
DC 9V			58.8mA	153Ω
DC 12V			44.2mA	272Ω
DC 24V			22.1mA	1087Ω

Prod Model:	W33T
Certification:	UL TUV CQC
Contact Material:	Agsno2
Installation Type:	PCB
UL Insulation Class:	F
Operate Time:	Max.20ms
Release Time:	Max.15ms
Weight:	12g
Contact Form:	Open

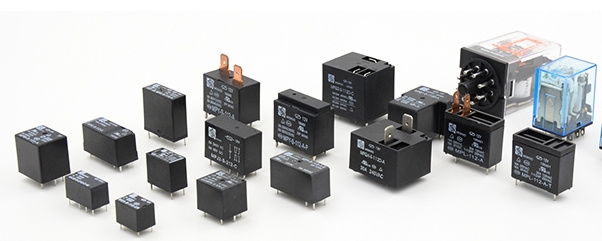

Zhejiang Fanhar Electronics Co., Ltd. is a National Hi-Tech enterprise specialized in research, development, production and sales of relays. With more than 30 series, hundreds of product specifications, our relays are widely used in power control, smart home, household appliances, electric vehicles and charging pile, industrial control and emerging energy fields.

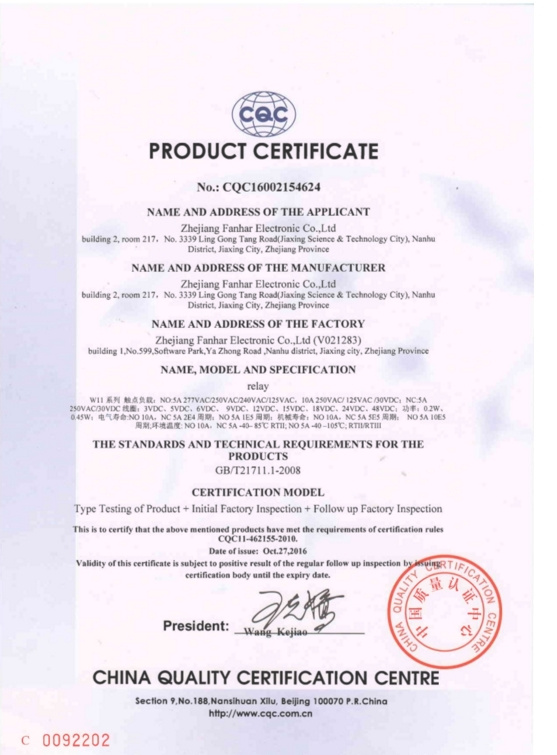

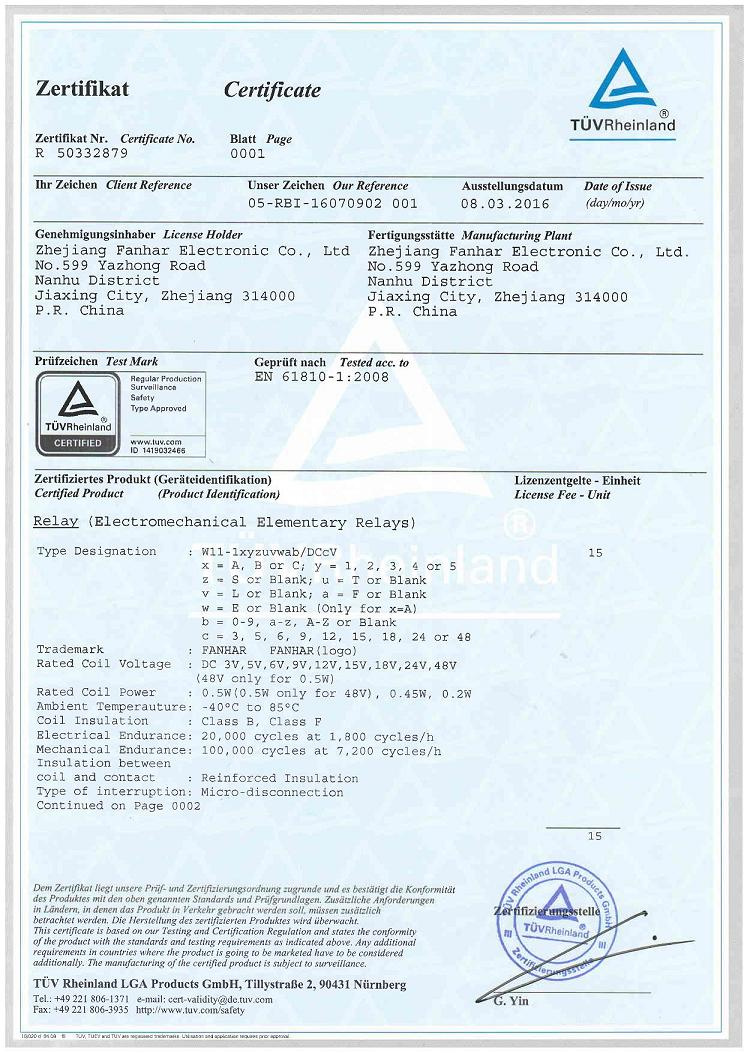

With a complete quality assurance system, Fanhar has passed the ISO9001 quality management system and ISO14001 environmental management system certification. Products possess UL, TUV and CQC certification, and meet the EU RoHS, REACH requirements. 'Fanhar Relay has become a worldwide 's best choice by offering reliable quality assurance system, meticulous technical services, worldwide sales network and the best cost-effective.

Company Development History

Year of 2016

Zhejiang Fanhar Electronics Co., Ltd was acquired the honor of "National High and newTech Enterprise"

Year of 2014

Zhejiang Fanhar Electronics Co., Ltd was founded, mainly engaged in electromagnetic relays and new energy relays.

Year of 2013

Zhejiang Great Electrical Co., Ltd cooperated with Panasonic Group, mainly engaged in Latching relays.

Year of 2011

The Chinese Communist Party Branch of Zhejiang Great Electrical Co., Ltd was founded.

Year of 2010

Zhejiang Great Electrical Co., Ltd removed to Jiashan Industry of Zhejiang who has a 12000m2 self- owned factory where is close to Shanghai, the sales amount of the year has a great breakthrough which is more than 100 Million RMB.

Year of 2007

Zhejiang Great Electrical Co., Ltd was Founded.

Year of 2005

Yueqing Great Electrical Co., Ltd upgraded to Wenzhou Great Electrical Co., Ltd, mainly engaged in Latching Relays.

Year of 2003

Yueqing Great Electrical Co., Ltd was established, mainly engaged in Latching Relays.
