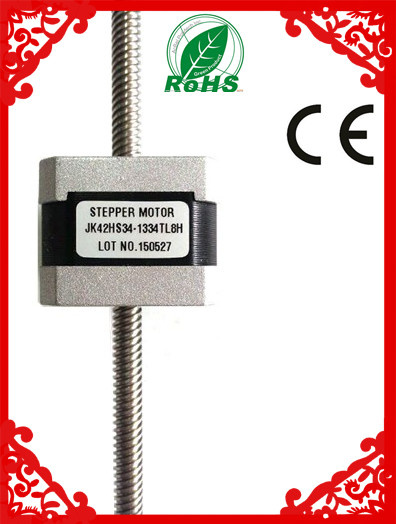

China Double Shaft Linear Stepper Motor/ Lead Screw Motor

Name: China Double Shaft Linear Stepper Motor/ Lead Screw Motor
Brand: all-electronics-online.com
SKU: 772097035
Availability: InStock
Rating: 4.5 (109 reviews)

Price:	US $ 16.5-21.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

General Specifications:

(ITEM)	(Specification)
Step angle	1.2°
Tempareture Rise	80ºC max
Ambient Temperature Range	-20ºC- +50ºC
Insulation Resistance	100MΩ Min., 500VDC
Dielectric Strength	500 VAC for 1s 3mA
Shaft Radial Play	0.02 Max.(450g-load)
Shaft Axial Play	0.08 Max.(450g-load)
Max. radial force	28N(20mm from the flange)
Max. axial force	10N

Electrical Specification:
42HS434-1334TL8H

Phase	2
Step angle	1.8	deg
Voltage	2.8	v
Current	2.8	A
Resistance	2.1	ohm
Inductance	2.5	m.H
Holding torque	2.6	kg.cm
Shaft length	270	mm

Applications:

Used for robots stepper motor,

Electronic automatic equipment stepping motor,

Medical instrument stepping motor,

Advertising instrument stepper motor,

Lighting& audio equipment stepper motor,

Printer stepper motor, textile machinery stepper motor.

Cnc router stepper motor.

Note: We can also manufacture products according to customer's requirements.

Prod Model:	JK42HS34-1334TL8H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	2.8V
Current:	1.33A
Lead Screw:	270mm
Holding Torque:	2.6kg.Cm
Resistance:	2.1ohm
Wires:	4
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Operate Mode:	Drip-Proof
Certification:	CE and RoHS
Brand:	Jkongmotor

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
