Clin Temperature&Humidity Controller Hh-1dg

Name: Clin Temperature&Humidity Controller Hh-1dg
Brand: all-electronics-online.com
SKU: 776402825
Availability: InStock
Rating: 4.4 (106 reviews)

Price:	US $ 11-22/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

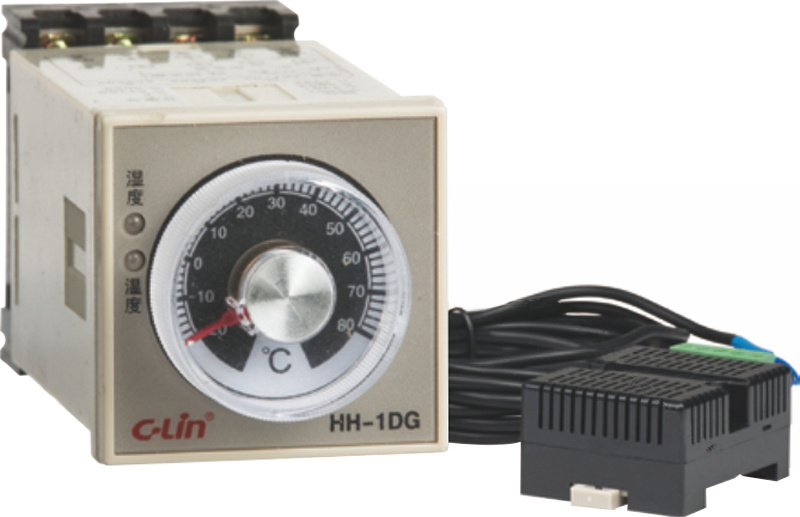

HH-1DG Temperature&Humidity Controller

Introduction

HH-1DG series temperature&humidity controller is mainly used in the electrical equipment
(such as outdoor terminal box, high and low voltage control cabinet, ring network switchgear, underground substation, box-type substation, circuit breaker mechanism box, meter box,
etc.), where it's humid or there is water vapor generated. The product can automatically
eliminate humidity, prevent the electrical equipments from kinds of accidents caused by the
condensation, and ensure the automated operations efficiently and safely.

Specification

Working power	AC220V power consumption≤2W
Control output	heating dehumidification or cooling dehumidification (optional)
Control range	ambient humidity≥93%RH, it starts dehumidification; when the ambient humidity≤75%RH, it stops. the temperature can be set by potentiometer(temperature difference 5ºC)
Contact capacity	5A AC220V(resistance)
Outline dimension	4848114mm
Hole dimension	45*45mm
Installation mode	panel type, guide rail type

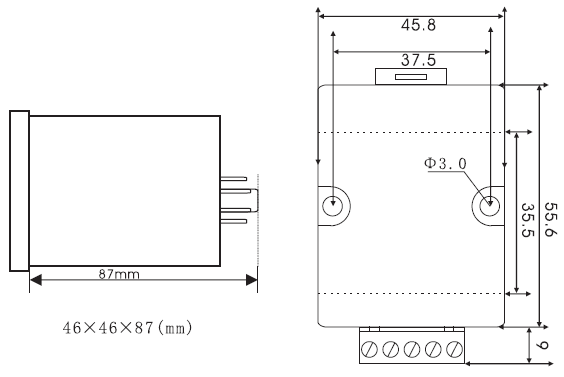

Outline Dimension

Prod Model:	HH-1DG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Power:	AC220V Power Consumption≤2W
Control Output:	Heating Dehumidification or Cooling Dehumidificati
Contact Capacity:	5A AC220V(Resistance)
Outline Dimension:	4848114mm
Hole Dimension:	45*45mm
Installation Mode:	Panel Type, Guide Rail Type
