Intelligent Temperature Controller (CMT-5000 Series)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
CMT-5000 Series intelligent digital temperature controller is with a new type
microprocessor as a core, extensive use of surface mount technology. The product, with advanced technology, reliable performance, excellent control accuracy, strong
disturbance immunity, can meet users various temperature control requirements.It is widely used for automatic control of machinery, chemicals, ceramics, light industry, metallurgy, petrochemical and heat treatment Main Features1) full-scale software zero adjustment, cold junction automatic compensation2) adopting industry and experts auto-tuning PID, self-adaptive technology.
3)LED digital window displays measured value and setting value respectively.Specification| Model | Panel size | Product type | Main control output | Alarm output | Input signal type |
| CMT1-5001 | 48×48mm | Intelligent temperature
controller | 2-digit relay output
(deviation adjustable) | no alarm function
| thermocouple E, K |
| CMT1-5002 | RTD Cu50, Pt100 |
| CMT1-5011 | 1 alarm(AL1) | thermocouple E, K |
| CMT1-5012 | RTD Cu50, Pt100 |
| CMT1-5201 | PID adjustment,
relay contact intermittent output | no alarm function | thermocouple E, K |
| CMT1-5202 | RTD Cu50, Pt100 |
| CMT1-5211 | 1 alarm(AL1) | thermocouple E, K |
| CMT1-5212 | RTD Cu50, Pt100 |
| CMT1-5501 | PID adjustment, drive solid state relay SSR
intermittent output | no alarm function | thermocouple E, K |
| CMT1-5502 | RTD Cu50, Pt100 |
| CMT1-5511 | 1 alarm(AL1) | thermocouple E, K |
| CMT1-5512 | RTD Cu50, Pt100 |
| Sampling cycle | 250ms |
| Alarm mode | 1 alarm, 6 alarm modes, setting workable |
| Alarm output | relay contact, AC250V 3A(resistive load) |
| Main control mode | PID control, (ON/OFF)digit control |
| Main control output | relay contact(volume:220V resistive load 3A); SSR drive level(DC12V;≤ 30mA) |
| Rated supply voltage | AC220V±10% 50Hz/60Hz;power consumption:≤ 3VA |

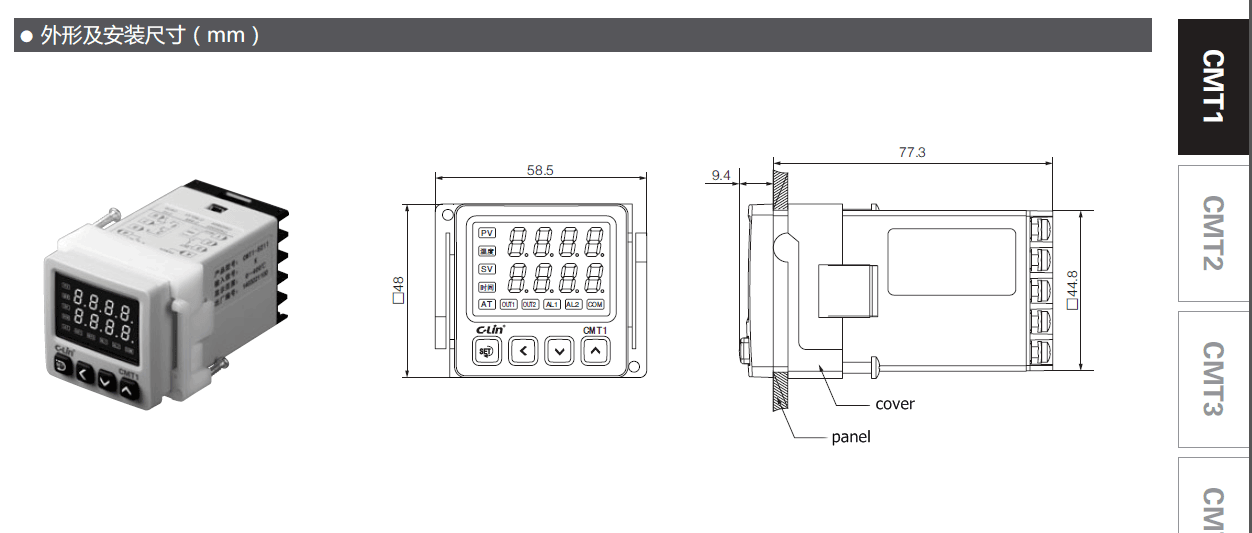

Outline Dimension

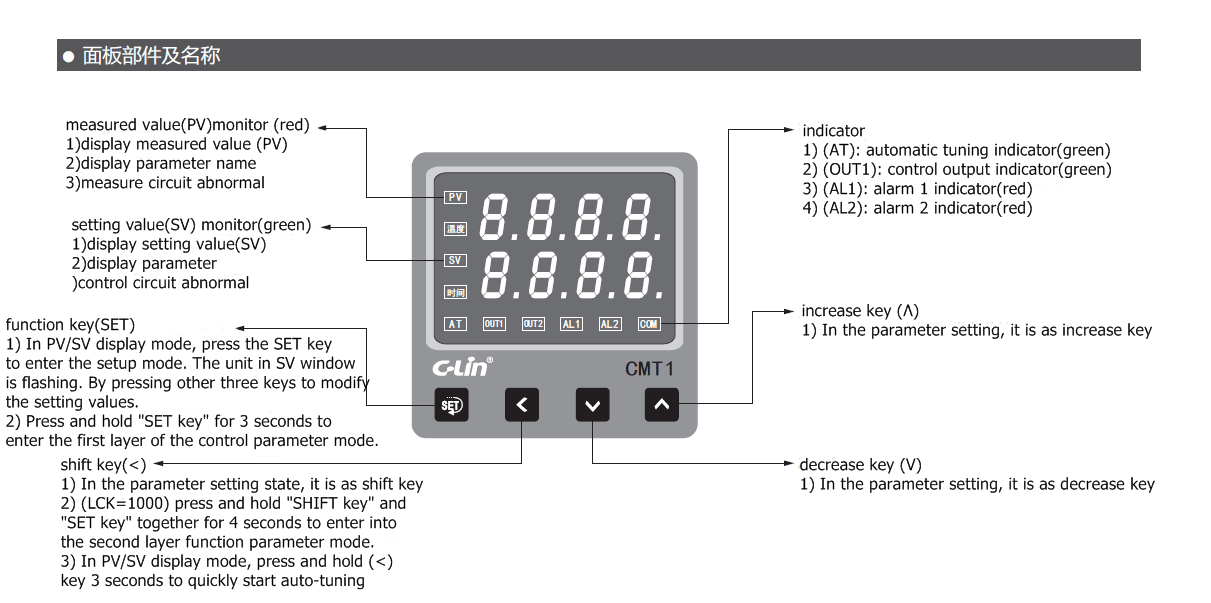

Panel Description
Note:Please choose the specific mode from the above table(e.g. CMT1-5001) when enquiry so that we can quota for you immediately for you.
| Prod Model: |
CMT1-5001, CMT1-5002 etc. |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Alarm Mode: |
1 Alarm, 6 Alarm Modes, Setting Workable |
| Input Signal: |
Thermocouple E, K; Rtd Cu50, PT100 |
| Alarm Output: |
Relay Contact, AC250V 3A(Resistive Load) |
| Main Control Mode: |
Pid Control, (on/off)Digit Control |
| Main Control Output: |
Relay Contact(Volume:220V Resistive Load 3A); SSR |
| Rated Supply Voltage: |
AC220V |
