Digital Temperature Controllers Xmtd-5000 Series 72X72X112mm

Name: Digital Temperature Controllers Xmtd-5000 Series 72X72X112mm
Brand: all-electronics-online.com
SKU: 694665455
Availability: InStock
Rating: 4.8 (37 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

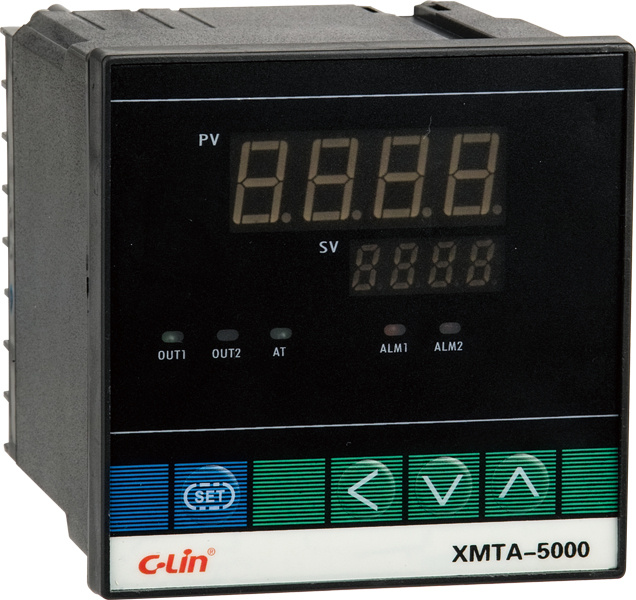

Intelligent Temperature Controller

XMT-5000 Series intelligent digital temperature controller whose core is a new micro-processor. With the advanced technology of the surface mounting and superb production processing, which makes the controller reliable performance and excellent control accuracy. The controller has a strong capability of anti-jamming and quick disturbance response, all the above functions can reach all kinds of temperature control requirements for our users. It can be widely used in the automatic control systems for the temperature, flow, pressure and liquid level of many industries such as mechanical, chemical, ceramics, light industry, metallurgy petrochemical, heat treatment, etc.

Connections
Specification

Model	XMTD-5000 Series
Input Signal	thermocouple:K,E,J
Input Signal	RTD:Pt100, Cu50
Control Mode	2-position relay on-off control
	PID adjust relay on-off control
	PID adjust drive SSR voltage control
Alarm Mode	1 alarm relay contact output
Alarm Mode	2 alarms relay contact output
Working Power	AC220V

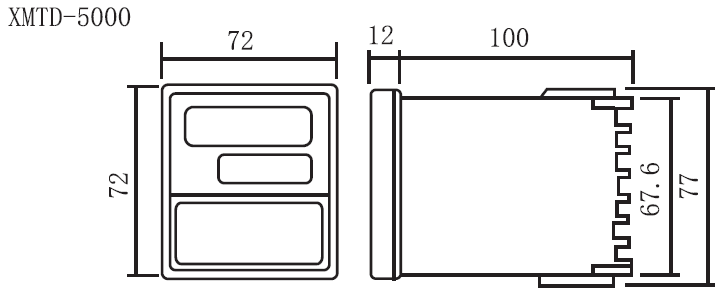

Outline Dimension	7272112mm
Hole Size	68*68mm
Installation Mode	Panel Mounting
Application	heating equipments such as drying box, oven, overtemperature protection, etc.

Prod Model:	XMTD-5000 72X72mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hole Size:	68*68mm
Mounting:	Panel
Demension Size:	72X72X112mm
Measured Signal:	Thermocouple:K, E, J; Rtd:PT100, Cu
Control Mode:	2-Position Relay Control; Pid Relay/SSR Control
Alarm Mode:	1 Alarm; 2 Alarms
Control Type:	Digital
Type:	Temperature Controller
Usage:	Control Temperature
Material:	Plactis Housing

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
