Intelligent Type Temperature&Humidity Controller Tdk0302

Name: Intelligent Type Temperature&Humidity Controller Tdk0302
Brand: all-electronics-online.com
SKU: 776017675
Availability: InStock
Rating: 4.8 (95 reviews)

Price:	US $ 25-50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

TDK0302 Intelligent Temperature&Humidity Controller

Technical Specification

Temperature setting	-40.0~120.0ºC
Humidity setting	0~99.9%RH
Measuring error	temperature(≤±0.5%FS)
Measuring error	humidity:(≤±4.5%FS)
Control mode	heating,humidification; heating dehumidification
Control mode	cooling humidification; cooling dehumidification
Control output	temperature humidity 2 groups relay contact. RS485 communication output or 2 groups transmission output can be matched.
Contact capacity	3A AC220V(resistance)
Working power	AC220V, AC380V
Outline dimension	727282mm
Hole dimension	68*68mm
Installation mode	panel type

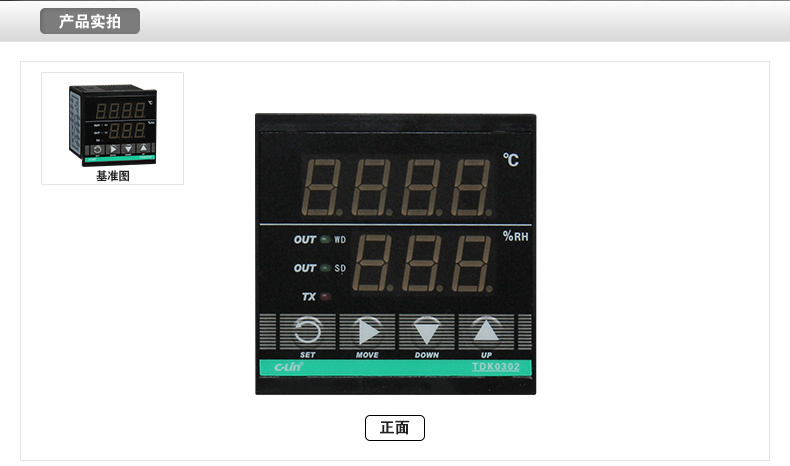

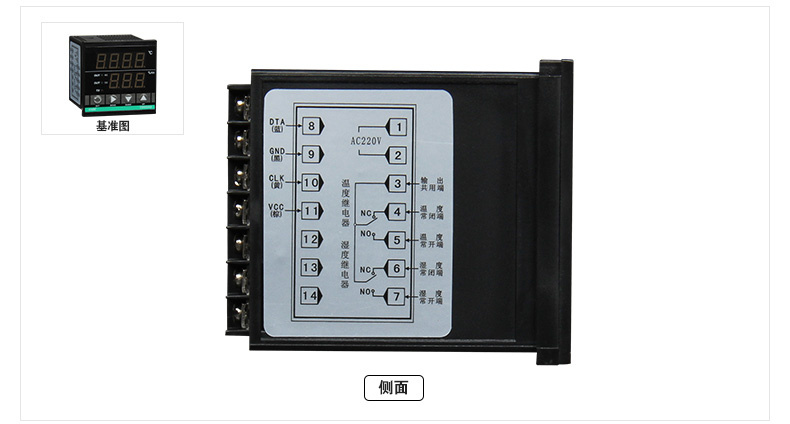

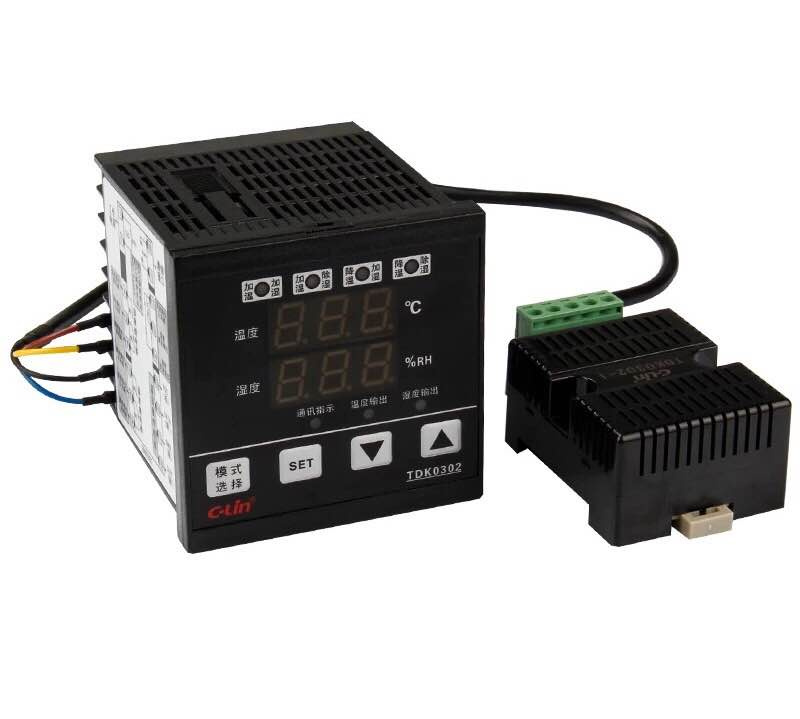

Product Display

Key Function

SET: Press SET key a time, the nixie tube is flickering. Press the other three keys to set temperature and humidity. Press SET key for 3 seconds to enter into control parameter setting mode.

MOVE: In the parameter setting state, it is shift key; press together with SET key to enter into function parameter setting mode.

DOWN: In the parameter setting mode, it is decrease key; in the temperature and humidity display mode it is used as temperature manually output.

UP: In the parameter setting mode, it is increase key; in the temperature and humidity display mode, it is used as humidity manually output.

Prod Model:	TDK0302
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Setting:	Minus 40 Centigrade to 120 Centigrade
Humidity Setting:	0~99.9%Rh
Measuring Error 1:	Temperature(≤±0.5%Fs)
Control Mode:	Heating, Humidification; Heating Dehumidification
Contact Capacity:	3A AC220V(Resistance)
Working Power:	AC220V, AC380V
Outline Dimension:	727282mm
Hole Dimension:	68*68mm
Installation Mode:	Panel Type
Usage:	Ventilation
