Intelligent Temperature Controllers Hb101 Series 48x48x74mm
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |

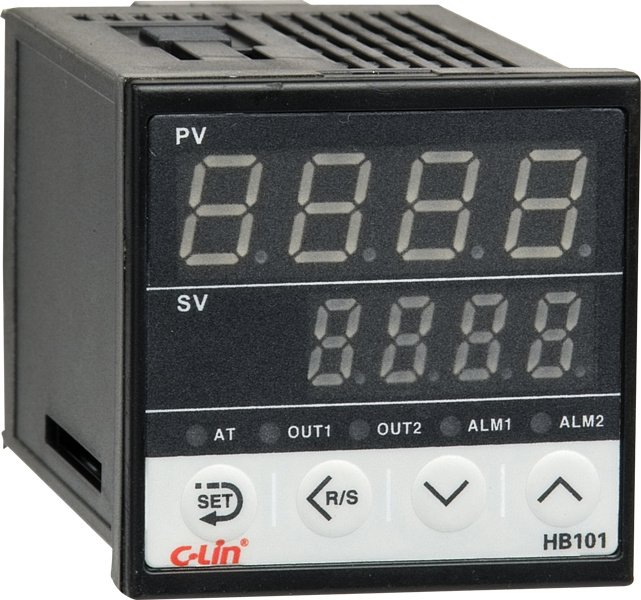

Intelligent Temperature Controller
HB series intelligent digital temperature controller is developed according to International DIN standard whose core is a new micro- processor. The advanced technology of the surface mounting and superb production processing makes the controller reliable performance and excellent control accuracy. The controller has a strong capability of anti-jamming and quick disturbance response. All the above functions can reach all kinds of temperature -control requirements for our users. It can be widely used in the automatic control systems for the temperature, flow, pressure and liquid level of many industries such as mechanical, chemical, ceramics, light industry, metallurgy petrochemical, heat treatment, etc.Main Features
(1)full-scale software zero adjustment, automatic cold junction compensation.
(2)adopting industry and experts self-tuning PID, self-adaptive technology. (3)four-digit two colors LED digital window displays measured value and setting

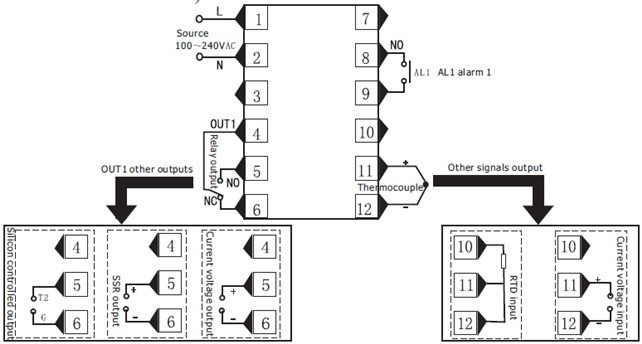

value respectively.Connections
|
Model |
HB101 |
|
Input Signal |
thermocouple:K,E,J |
|
RTD:Pt100, Cu50 |
|
Control Mode |
2-digit relay on-off control |
|
PID adjust relay on-off control |
|
PID adjust drive SSR voltage control |
|
Alarm Mode |
1 alarm relay contact output |
|
Working Power |
AC100-240V |
|
Outline Dimension |
48*48*74mm |
|
Hole Size |
45*45mm |
|
Installation Mode |
Panel Mounting |
|
Application |
places such as plastic extruding machine;reflow soldering;shoes machine, etc. |
| Prod Model: |
HB101 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hole Size: |
45+1x 45+1 |
| Application: |
Plastic Extruding, Reflow Oven, T Controller |
| Input Signal: |
K. E. J, PT100, Cu50. |
| Mounting: |
Panel |
| Power Supply: |
AC100-240V |
| Demension Size: |
48x48x74mm |
| Type: |
Temperature Controller |
| Control Type: |
Digital |
| Usage: |
Control Temperature |
| Material: |
Plactis Housing |
