Crane Scale S Typle Load Cell (QH-32C)

Name: Crane Scale S Typle Load Cell (QH-32C)
Brand: all-electronics-online.com
SKU: 773890025
Availability: InStock
Rating: 4.5 (89 reviews)

Price:	US $ 35-40/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	2/Piece
Pay Type:	T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-32C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	500 Kg to 1000 Kg
Safe Overload:	%Fs 150
Excitation Voltage:	9 ~ 12 VDC
Cable Length:	3 M
Material:	Alloy Steel

Product Description

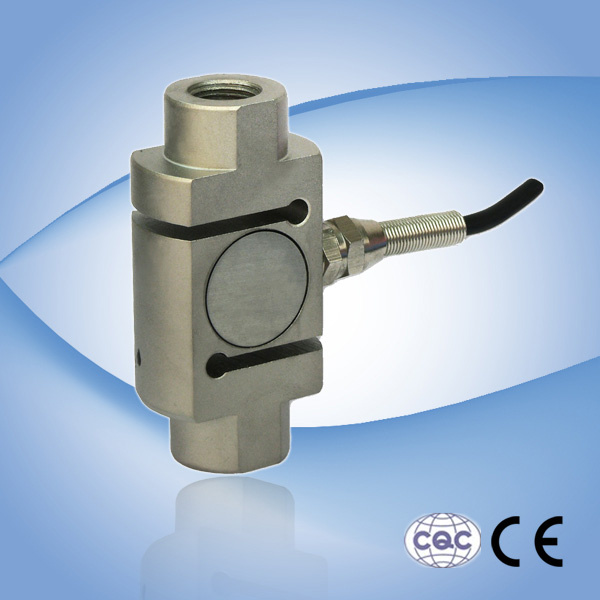

Crane Scale S Typle Load Cell (QH-32C)

Product Discription:

QH-32C load cells are available in the capacities from 500kg to 1000kg. Alloy steel material with S beam style. Silicon adhesive sealed inside, waterproof, anti-corrosion and suitable for all kinds of environment. S beam type structure design.Tension and/or compression loading.
Suitable for eletronic crane scale,hopper scale,mechanical conversion scale and other electronic weighing devices.

Features:

1.Capacity:500kg to 1000kg

2.Defend grade: IP66.

3.High accuracy,reliable performance
4.S beam type structure design,Tension and/or compression loading and easy installation.

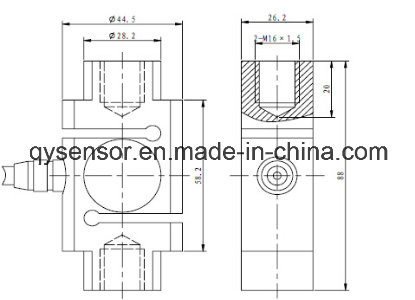

Electrical connection and Dimensions:

Technical Specifications

Specifications:
capacity	Kg	500~1000
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	2.0 ± 0.004
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.03
zero unbalance	%FS	± 1
non-linearity	%FS	± 0.03
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.02
creep	%FS/30min	± 0.03
input resistance	Ω	350 ± 5
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 100 Vdc
operating temperature range	°C	-20 ~ +55
compensated temperature range	°C	-10 ~ +40
temperature coefficient of SPAN	%FS/10°C	± 0.02
temperature coefficient of ZERO	%FS/10°C	± 0.03

Electrical connection:

1.Excitation+ red Excitation- black Signal+ green Signal- white
2.Four-core shielded cable with polyethylene.
3.Cable diameter :5mm
4.Cable length:3 m

The cable length could be chose by customer's application.

Ordering code: model(QH-alloy steel,QB-stainless steel)-range- rated output-accuracy-defend grade- the length of cable

Example: QH-32C-700kg-2.0mV/V-0.03%FS-IP66-3m
