| Prod Model: |
W35L |
| Certification: |
UL TUV CQC |
| Contact Material: |
Agsno2 |
| Installation Type: |
PCB |
| UL Insulation Class: |
F |
| Operate Time: |
Max.15ms |
| Release Time: |
Max.15ms |
| Weight: |
15g |
Product Description
Basic Info

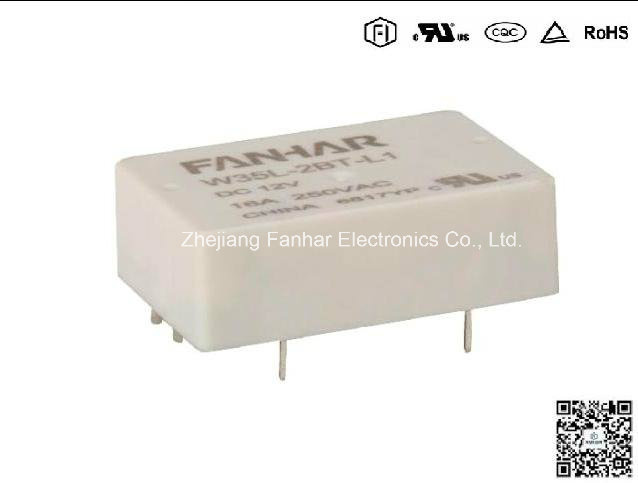

Model NO.: W35L
Contact Form: 2A = 2 OPEN CONTACTS 2B = 2 CLOSE CONTACTS
Product protective: Nil: Soldered S = Sealed
Contact material: T=AgSnO2
Insulation system: Nil: B level F: F level
Coil Type: L1 = Single Coil L2 = Double coil
Dimension: 30*20*10 MM
Weight: Approx 15g
Trademark: FANHAR
Origin: China
Product Description
1. Two sets of 20A contact switching capability.
2.Possess the UL certification of TV-8 125VAC, the impact current is 120A
3.The withstand voltage between coil and contact can reach 8KV
4. Ultra-flat installation
5. UL Insulation class :F grade
Contact Data:
| Contact Form | 2A 2B |
| Rated load | 16A 250VAC/30VDC |
| Max Switching Voltage | 277VAC/30VDC |
| Max Switching Current | 20A |
| Max Switching Capacity | 4000VA/480W |
| Min allowing load | 5VDC 100mA |
| Contact Resistance | 50mΩ (at 6VDC 1A) |
| Insulation Resistance | 1000MΩ (at 500VDC) |
General Data:
| Withstand Voltage Between open contacts | 1000VAC 1min |
| Between coil and contacts | 4000VAC 1min |
| Withstand impact voltage | Between coil and contacts 8KV(1.2x 50us) |
| Operate Time | Max.15ms |
| Release Time | Max.15ms |
| Mechanical life | 5,000,000 ops ON/OFF = 0.1s/0.1s |
| Electrical life | 16A 250VAC/30 VDC 100,000 ops ON/OFF=1s/9s |
Impact Resistance Misoperation
Durability | 100m/s² Approx10G
1000m/s² Approx100G |
Vibration Resistance Misoperation
Durability | 10 - 55 Hz 1.5mm Double Amplitude
10 - 55 Hz 1.5mm Double Amplitude |
| Temperature Range | -40ºC to +85ºC |
| Humidity | 5% to 90% |
| Installation type | PCB Mounting |
| Certification | UL/C-UL:E475405 |
Coil Data:
Single Coil:
| Coil rated voltage | Operating
voltage | Releasing
Voltage | Coil rated
Current
(±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
| DC 5V | Below 75%
rated voltage (initial) | Below 75%
rated voltage (initial) | 100mA | 12.5Ω | 1.0mW | 90-150 %
Rated voltage |
| DC 6V | 83.5mA | 72Ω |
| DC 9V | 55.5mA | 162Ω |
| DC 12V | 41.5mA | 288Ω |
| DC 24V | 20.8mA | 1152Ω |
