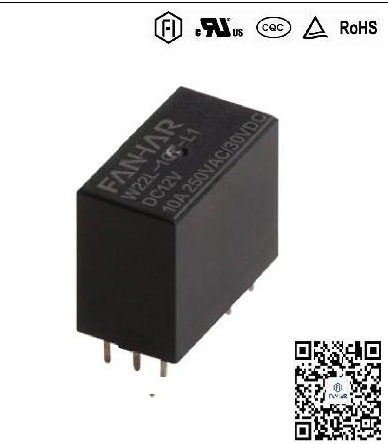

Model NO.: W22L
Contact Form: 1A = 1 OPEN 1B = 1 CLOSE
Product Protective: Nil: Soldered S: Sealed
Contact material: T=AgSnO2
Coil Type: L1= Single Coil L2 = Double Coil
Insulation Grade: Nil: B grade F: F grade
Dimension: 24.5*13*16.5 MM
Weight: Approx 12g
Trademark: FANHAR
Origin: China
Product Description
1. 20A contact switching capability
2. Be able to bear 750A short-circuit inrush current.
3.UL insulation class: F grade
Contact Data:
| Contact Form | 1A 1B |
| Rated load | 10A 250VAC/30VDC
16A 250VAC |
| Max Switching Voltage | 277VAC/30VDC |
| Max Switching Current | 20A |
| Max Switching Capacity | 4000VA/300W |
| Min Allowing load | 5VDC 100mA |
| Contact Resistance | 50mΩ (at 6VDC 1A) |
| Insulation Resistance | 100MΩ (at 500VDC) |
General Data:
| Withstand Voltage Between open contacts | 1000VAC 1min |
| Between coil and contacts | 4000VAC 1min |
| Withstand impact voltage | Between coil and contacts 10kv(1.2X50us) |
| Operate Time | Max.15ms |
| Release Time | Max.15ms |
| Mechanical life | 1,000,000 ops ON/OFF = 0.1s/0.1s |
| Electrical life | 10A 250VAC/30VDC 100,000 ops ON/OFF=1s/9s
16A 250VAC 50,000 ops ON/OFF=1s/9s |
Impact Resistance Misoperation
Durability | 98m/s² Approx10G
1000m/s² Approx100G |
Vibration Resistance Misoperation
Durability | 10 - 55 Hz 1.5mm Double Amplitude
10 - 55 Hz 1.5mm Double Amplitude |
| Temperature Range | -40ºC to +85ºC |
| Humidity | 5% to 90% |
| Installation type | PCB Mounting |
| Certification | UL/C-UL:E340054 |
Coil Data:
Single Coil:
| Coil rated voltage | Operating
voltage | Releasing
Voltage | Coil rated
Current
(±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
| DC 5V | Below 75%
rated voltage (initial) | Below 75%
rated voltage (initial) | 100mA | 50Ω | 500mW | 90-150 %
Rated voltage |
| DC 6V | 83mA | 72Ω |
| DC 9V | 55.6mA | 162Ω |
| DC 12V | 41.7mA | 288Ω |
| DC 24V | 20.8mA | 1152Ω |
Double Coil:
| Coil rated voltage | Operating
voltage | Releasing
Voltage | Coil rated
Current
(±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
| DC 5V |
Below 75%
rated voltage (initial) |
Below 75%
rated voltage (initial) | 200/200mA | 25/25Ω | | |
| DC 6V | 167/167mA | 36/36Ω |
100mW |
90-150 %
Rated voltage |
| DC 9V | 111/111mA | 81/81Ω |
| DC 12V | 83/83mA | 144/144Ω |
| DC 24V | 41.6/41.6mA | 576/576Ω |
