| Prod Model: |
cat5 |
| Model No: |
Cat5 |
| Conductortype: |
Solid |
| Sheath Material: |
PVC |
| Insulation Material: |
PE |
| Range Of Application: |
Network |
| Brand: |
Dongsheng |
| Rated Voltage: |
300V |
| Color: |
as Requirement |
| Operating Temperature: |
0 to 90 Temperature Degree |
| Usage: |
Computer |
| Certification: |
VDE |
Product Description

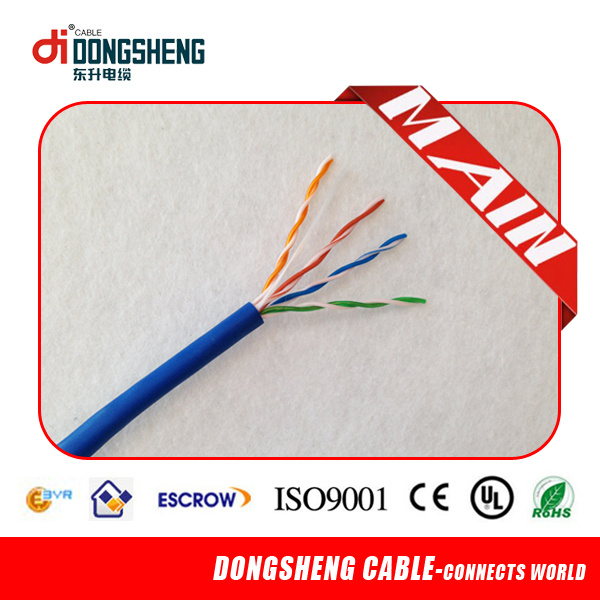

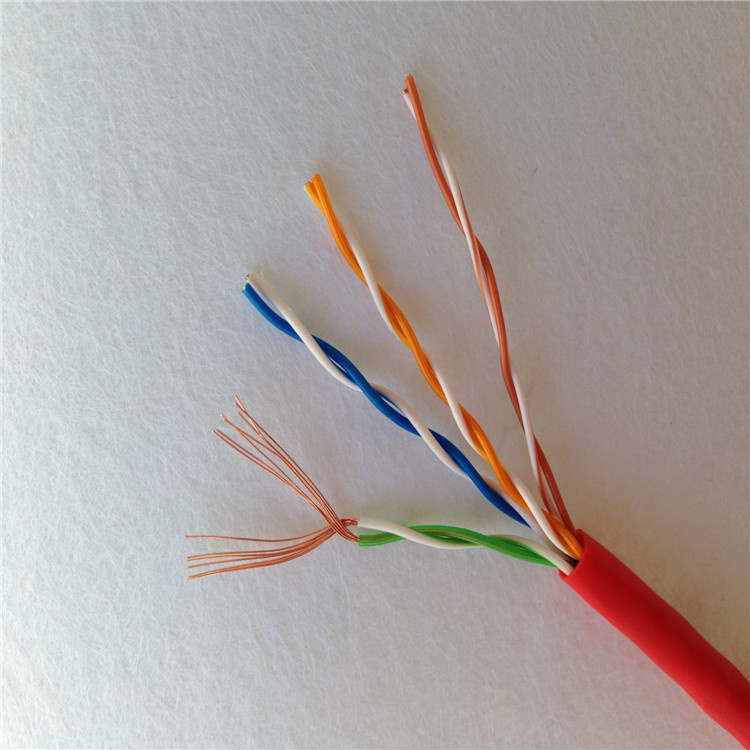

Factory price utp cat5 networking ethernet cable
Conductor: 0.51mm BC/CCA Insulation: 0.91MM HDPE/PE/PVC
Shield: 5.1mm PE,PVC,RoHS, flame retardant,LSOH Certificate: CE, Rohs, UL, ETL
Color: As requirement Test: Fluke DTX1800
Application: network system(10 Base-T/100 Base-TX /100VG-AnyLan /1000 Base-T(Gigabit Ethernet) /155/622 Mbps ATM /)

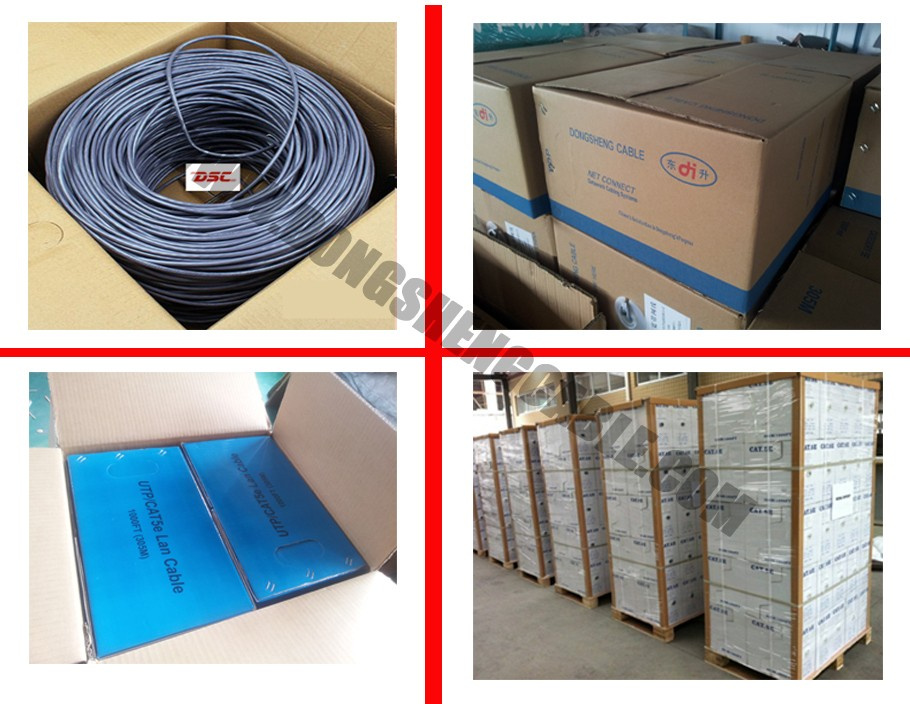

Packaging & Shipping 1)305m/pull out box,2 boxes/carton
2)100m, 200m per roll
3)305m/wooden reel, 500wooden reel
4)Customer's other requirement also be welcomed
| Delivery Time | within two weeks |
|---|

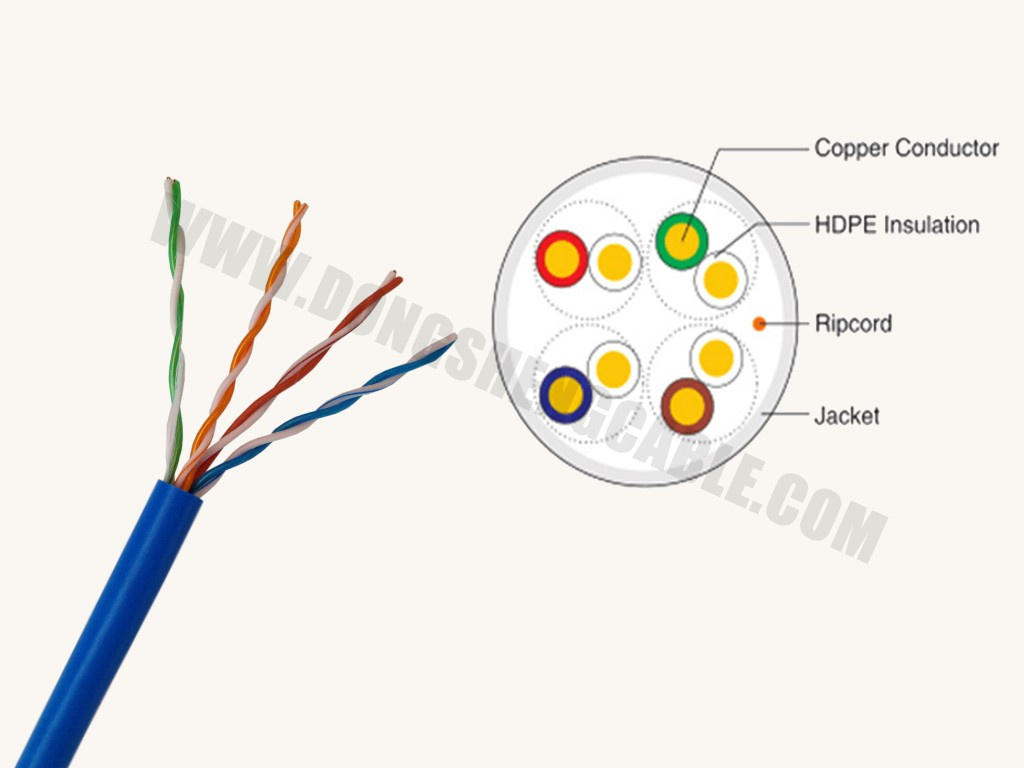

Cat5e Lan Network Cable Construction:
Item | Conductor | NO. Of Pairs | Shielding | Drain Wire | O.D. |
Cat UTP | 0.51mm | 4 | Non | Non | 5.1mm |
Cat5e FTP | 0.51mm | 4 | Aluminum Foil | Yes | 5.8mm |
Cat5e SFTP | 0.51mm | 4 | Aluminum Foil + Alloy Braiding | Yes | 6.2mm |
Cat5e UTP outdoor | 0.51mm | 4 | Non | Non | 6.2mm |
Cat5e UTP Messenger | 0.51mm | 4 | Aluminum Foil | Yes | 6.0mm |
Cat5e Network Cable Technical Performance(100m)
| Frequency MHz | RL ≥dB | Attenuation ≤dB/100m | NEXT ≥dB/100m | PHASE DELAY≤ ns | ELFEXT ≥dB/100m | PS NEXT ≥dB/100m | PS ELFEXT ≥dB/100m |
| 1 | 20.0 | 2.0 | 65.3 | 570 | 63.8 | 62.3 | 60.8 |
| 4 | 23.0 | 4.1 | 56.3 | 552 | 51.7 | 53.3 | 48.8 |
| 8 | 24.5 | 5.8 | 51.8 | 546.73 | 45.7 | 48.8 | 42.7 |
| 10 | 25.0 | 6.5 | 50.3 | 545.38 | 43.8 | 47.3 | 40.8 |
| 16 | 25.0 | 8.2 | 47.3 | 543 | 39.7 | 44.2 | 36.7 |
| 20 | 25.0 | 9.3 | 48.5 | 542.05 | 37.7 | 42.8 | 34.7 |
| 25 | 24.3 | 10.4 | 44.3 | 541.2 | 35.8 | 41.3 | 32.8 |
| 31.25 | 23.6 | 11.6 | 42.9 | 540.44 | 33.9 | 39.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 538.55 | 27.8 | 35.4 | 24.8 |
| 100 | 20.1 | 22.0 | 35.3 | 537.6 | 23.8 | 32.3 | 20.8 |
Cat6 Lan Network Cable Construction:
Item | Conductor | NO. Of Pairs | Shielding | Drain Wire | O.D. |
Cat6 UTP | 0.57mm | 4 | Non | Non | 6.1mm |
Cat6 FTP | 0.57mm | 4 | Aluminum Foil | Yes | 6.8mm |
Cat6 SFTP | 0.57mm | 4 | Aluminum Foil + Alloy Braiding | Yes | 7.2mm |
Cat6e UTP outdoor | 0.57mm | 4 | Non | Non | 6.2mm |
Cat6e UTP Messenger | 0.57mm | 4 | Aluminum Foil | Yes | 6.0mm |

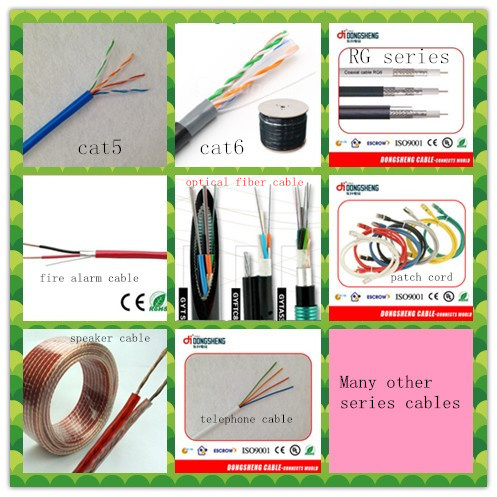

Other Cables:
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV Receiver
DSC Located at the city of Lin'an, Hangzhou, Hangzhou Lin'an Dongsheng Cable Co., Ltd. is 28km away from Hangzhou City, covering an area of 30000 square meters, with beautiful landscape and convenient communication facilities.
Since 1991, 24 year cable experience, our rapid development helps us to be the industry leader. Our company has passed ISO9001 quality system certification & UL certification, and had foreign trade license. Our company is on the top with comprehensive strength.
Main products in our company cover LAN Network Cables Cat5e CAT6 Cat3, Coaxial CCTV/CATV Cable RG6 RG59 RG11 RG59-2C QR500 RG58 RG213 LMR400 KX6 19VATC CT100 SAT703 ect. Telephone Cable, Alarm Cable and Cable Accessories
Our motto is "Keeping pace with the time, and going up like the sun", just as our company's name, Dongsheng, suggests. We are looking forward to establishing long term & mutually beneficial business relationship with you.
