Green Soldermask PCB Circuit Double Sided Board with Immersion Gold
| Price: |
US $ 0.65/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |

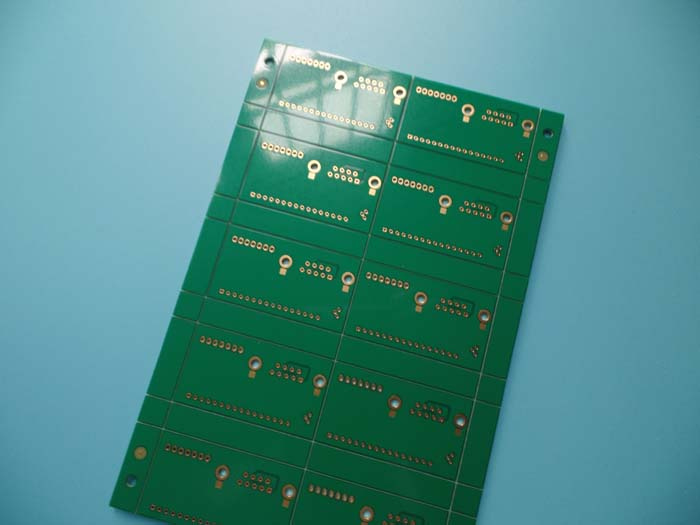

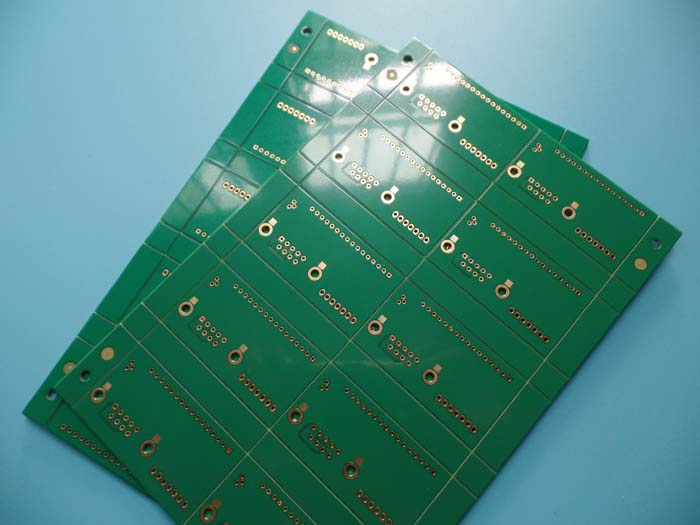

Green Soldermask PCB circuit Double sided board with Immersion Gold 1.6mm thickness
board
Commodity IntroductionThis is a type of FR-4 PCB for the application of CODEC. It's a 2 layer board at 1.66mm thick. The
base laminate is from ITEQ, Solder mask and silkscreen from Taiyo and Nanya. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 TG170 | FR-4 TG170 |
| Supplier | ITEQ | ITEQ |
| Board thickness | 1.60±10%mm | 1.66-1.67mm |
| Outer copper foil | >=35um | 43.32um |
| Inner copper foil | / | / |
| Warp-twist | <= 0.75% | 0.48% |
| Legend | Type | Taiyo S-380W | Taiyo S-380W |
| Color | White | White |
| Location | CS & SS | CS & SS |
| Marking | Co.logo | YES | OK |
| UL.logo | YES | OK |
| Date code | WWYY | 1217 |
| Marking form | NA | NA |
| Location | CS | CS |
| Min line width (mil) | 8 | 8.2 |
| Min line spacing (mil) | 8 | 7.8 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | Nanya LP-4G G-05 | Nanya LP-4G G-05 |
| Color | Green | Green |
| Thickness | >=10 um | 14 um |
| Pencil Test | 6H OR ABOVE | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface Treament | Immersion Gold | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | V-cut | OK |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012C | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
Quality Policy
Bicheng has developed series of management procedures and approaches to assure that PCBs
are in compliance with the customers' requirements, inclusive of selection of the vendors, work
in progress (WIP) inspection, outgoing delivery inspection and customer service etc.
Evaluation and Audit of Suppliers
Suppliers have to be evaluated by Bicheng. In addition, Bicheng will appraise and rank suppliers
every year to guarantee the materials supplied are meeting Bicheng's requirements. Furthermore,
Bicheng continuously develop suppliers and supervise them to improve their quality and
environment management basing on the systems of ISO9001 & ISO14001.
Contract Evaluation
Bicheng shall review and verify customer's requirements to make sure that we have the capability
to satisfy customers' requirements including specifications, delivery and other demands prior to
accepting an order.
Making, audit and control of manufacturing data
When customers' design data and specifications are provided to our market department, Bicheng
has to verify all the requirements. Then, convert the design data into manufacturing data by CAM.
Finally, a manufacturing instruction (MI) is generated according to the real manufacturing process
and technologies for manufacturing department as the basis for actual fabrication. MI must be
reviewed by independent engineers and QA engineers before issue.
Incoming Material Quality Control
All materials have to be inspected before warehousing. We established a series of strict inspection
procedure and instruction to control the incoming materials. Furthermore, various precise
inspecting instruments and apparatus guarantee the capability to judge the material good or not.
We issue material with first in first out principle, and give out "alarm" for the material that will reach
the shelf life to ensure the materials are used up before expiry.
| Prod Model: |
BIC-386-V3.86 |
| Board Thick: |
1.66mm |
| Surface Finish: |
Immersion Gold |
| Outer Copper Foil: |
43.32 Um |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Min Line Width (Mil): |
8.2 Mil |
| Min Line Spacing(Mil): |
7.8 Mil |
| Visual Inspection: |
Ipc-a-600h&Ipc-6012c |
| Solderability Test: |
245ºC 5s 1 Cycle |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
