Halogen Free PCB Board 8 Layer Stamp Holes with Enig
| Price: |
US $ 0.89/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |

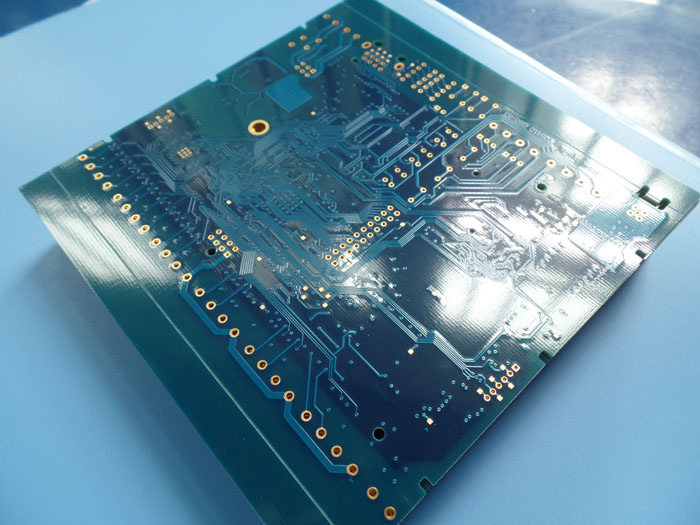

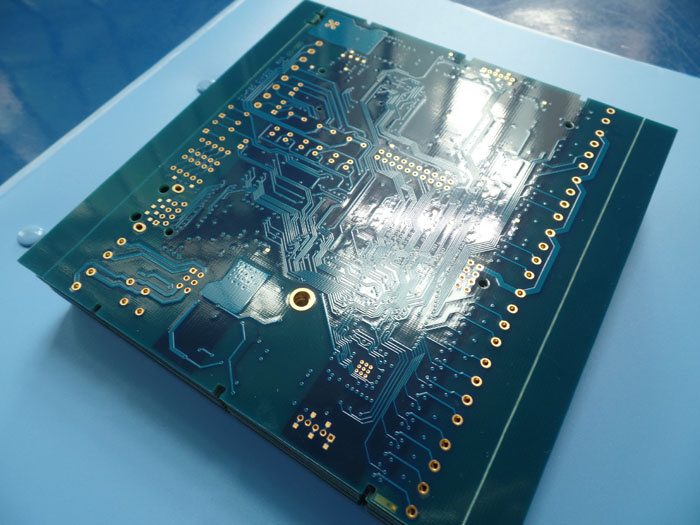

Impedance controlled Multilayer PCB 8 Layer PCB Single Trace Impedance With Blue Solder
Mask Applied in DC DC Converter
Commodity IntroductionThis is a type of FR-4 PCB for the application of DC DC Converter. It's an 8 layer board
at 1.6mm thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo.

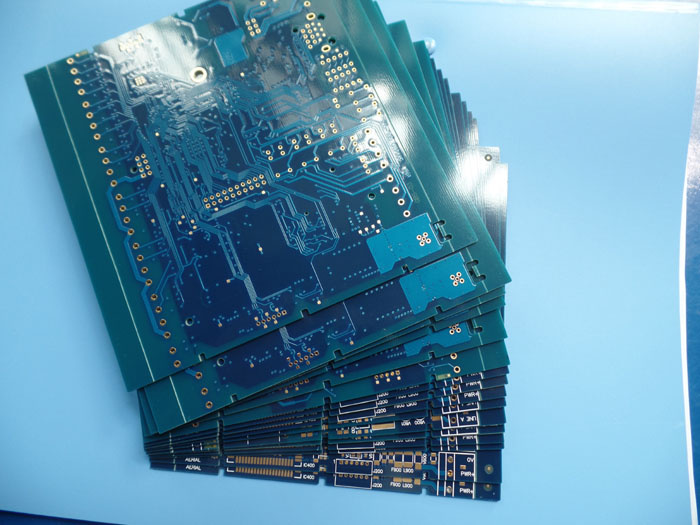

It's fabricated per IPC 6012Class 2 using supplied Gerber data. Each 10 boards or panels
are packed separately.
Parameters & Data Sheet| PCB SIZE | 99 x 93mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 8 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| Prepreg 7628 0.195mm |
| copper ------- 35um(1oz) MidLayer 1 |
| FR-4 0.2mm |
| copper ------- 35um(1oz) MidLayer 2 |
| Prepreg 7628 0.195mm |
| copper ------- 35um(1oz) MidLayer 3 |
| FR-4 0.2mm |
| copper ------- 35um(1oz) MidLayer 4 |
| Prepreg 7628 0.195mm |
| copper ------- 35um(1oz) MidLayer 5 |
| FR-4 0.2mm |
| copper ------- 35um(1oz) MidLayer 6 |
| Prepreg 7628 0.195mm |
| copper ------- 18um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4mil/4mil |
| Minimum / Maximum Holes: | 0.3/5.0mm |
| Number of Different Holes: | 21 |
| Number of Drill Holes: | 5612 |
| Number of Milled Slots: | 2 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | Single trace Impedance control, L1-L8, 4mil 50 ohm +/-10%, Differential pairs impedance
control L1-L3-L4-L7-L8, 4.6mil/8mil, 90 ohm+/-10% |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 TG170ºC, er<5.4.IT-180, ITEQ Supplied |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold (9.1% ) 0.05µm over 3µm nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Blue, ONSTATIC supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, stamp holes. |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and \leged FREE AREA |
| VIA | plated through hole(PTH), minimum size 0.3mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Isolated DC DC Converter
Embedded Technology
PCB Electronics
DC DC Step UP Converter
Micro PLC, PC Power Supplies |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Printed circuit boards - Bicheng PCB
Bicheng Enterprise company offers single sided / double sided and multilayer circuit boards. We
have been serving PCB electronics industry in Shenzhen, China since 2003.
Our advantages
* Your satisfied source to buy printed circuit boards (PCBs)
* All PCBs are 100% tested (flying probe or fixture test)
* Free panelizing
* Special price for partners
* On time delivery
* No minimum order quantity
* Worldwide shipping, door to door service
Our products
* PCB Prototypes and PCB Production
* Rigid PCB Fabrication
* Flexible PCB (FPC)
* PCB up to 32 layers
* RoHS complaint, Lead free PCBs
* Material: FR-4, High Tg (Tg170, Tg180), RO4350B, RO4003C, Polyimide
* Controlled Impedance
* Surface finish: HASL, HASL lead free, Immersion tin, Immersion silver, Immersion gold, gold
finger
* Blind vias
* 3 days to 4 weeks lead time
| Prod Model: |
BIC-164-V1.64 |
| Final Foil External: |
1 Oz |
| Final Foil Internal: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Impedance Control: |
Single Trace, 4 Mil 50 Ohm |
| Impedance Control.: |
Differential Pairs, 4.6mil/8mil, 90 Ohm |
| Solder Mask Color: |
Blue, Onstatic Supplied |
| Colour Of Component Legend: |
White, S-380W, Taiyo Supplied. |
| Minimum Trace And Space: |
4 Mil/4 Mil |
| Minimum / Maximum Holes: |
0.3/5.0mm |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
