High Frequency PCB on 1.6mm RO4350b with Immersion Gold
| Price: |
US $ 0.39/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-802-V8.02 |
| Final Foil External: |
1.5oz |
| Final Height Of PCB: |
1.6 mm ±10% |
| Surface Finish: |
Immersion Gold (31%) |
| Solder Mask Color: |
None |
| Colour Of Component Legend: |
Black |
| Minimum Trace And Space: |
20 Mil / 20 Mil |
| Minimum / Maximum Holes: |
0.5mm |
| Via: |
N/a |
| Final Foil Internal: |
N/a |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4350b |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description
1.1 General description

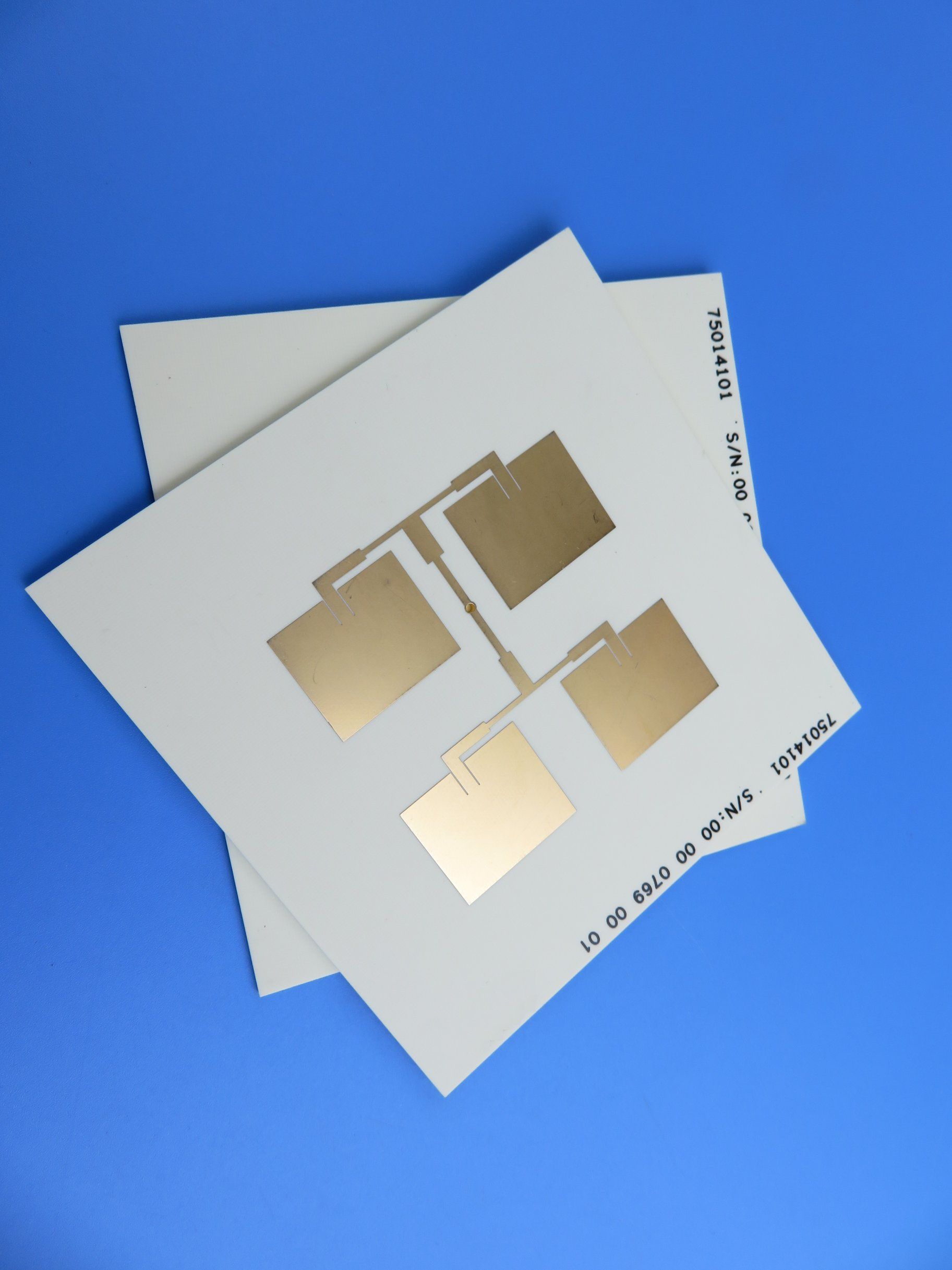

This is a type of double sided high frequency PCB built on RO4350B substrate with Tg 280°C
for the application of WiFi Booster. It's 1.60 mm thick without solder mask; Black silkscreen is
directly on the substrate and immersion gold is on pads for soldering. The base material is
used from Rogers Corp., entire board supplying 1 up. They're fabricated per IPC 6012 Class
2 using supplied Gerber data. Each 25 boards are packed for shipment.
1.2 Features and benifits
A. Stable electrical coefficient of dielectric constant;
B. Excellent dimensional stability;
C. Good high temperature and low temperature resistance(-192ºC-260ºC);
D. Engineering design prevents problems from occurring in pre production;
E. ISO9001, ISO14001, UL certified manufacturing factory;
F. No quality complaint is meant to save money;
G. No MOQ, low cost for prototypes and small runs quantity;
H. Free stencil shim sent for new user;
I. ISO9001, ISO14001, TS16949, UL Certified;
1.3 Application
Rf transmitter, Acoustic detection sensors, Digital transmitter, Power amplifier
1.4 Parameter and data sheet| PCB SIZE | 100 x 90mm=1PCS |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1 oz)+plate TOP layer |
| RO4350B 1.524mm |
| copper ------- 35um(1oz) + plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 20 mil / 20 mil |
| Minimum / Maximum Holes: | 0.5mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 1 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B Tg280ºC, er<3.48, Rogers Corp. |
| Final foil external: | 1.5 oz |
| Final foil internal: | N/A |
| Final height of PCB: | 1.6 mm ±10% |
| PLATING AND COATING | |
| Surface Finish | Immersion gold (31%) |
| Solder Mask Apply To: | NO |
| Solder Mask Color: | N/A |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | Top Side |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
legend FREE AREA |
| VIA | N/A |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
