High Frequency PCB Spacer with Nothing on The Substrate
| Price: |
US $ 0.40/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-803-V8.03 |
| Final Foil External: |
N/a |
| Final Height Of PCB: |
1.6 mm ±10% |
| Surface Finish: |
N/a |
| Solder Mask Color: |
N/a |
| Colour Of Component Legend: |
N/a |
| Minimum Trace And Space: |
N/a |
| Minimum / Maximum Holes: |
N/a |
| Via: |
N/a |
| Final Foil Internal: |
N/a |
| Test: |
N/a |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
| Dielectric: |
RO4350b |
Product Description
1.1 General description

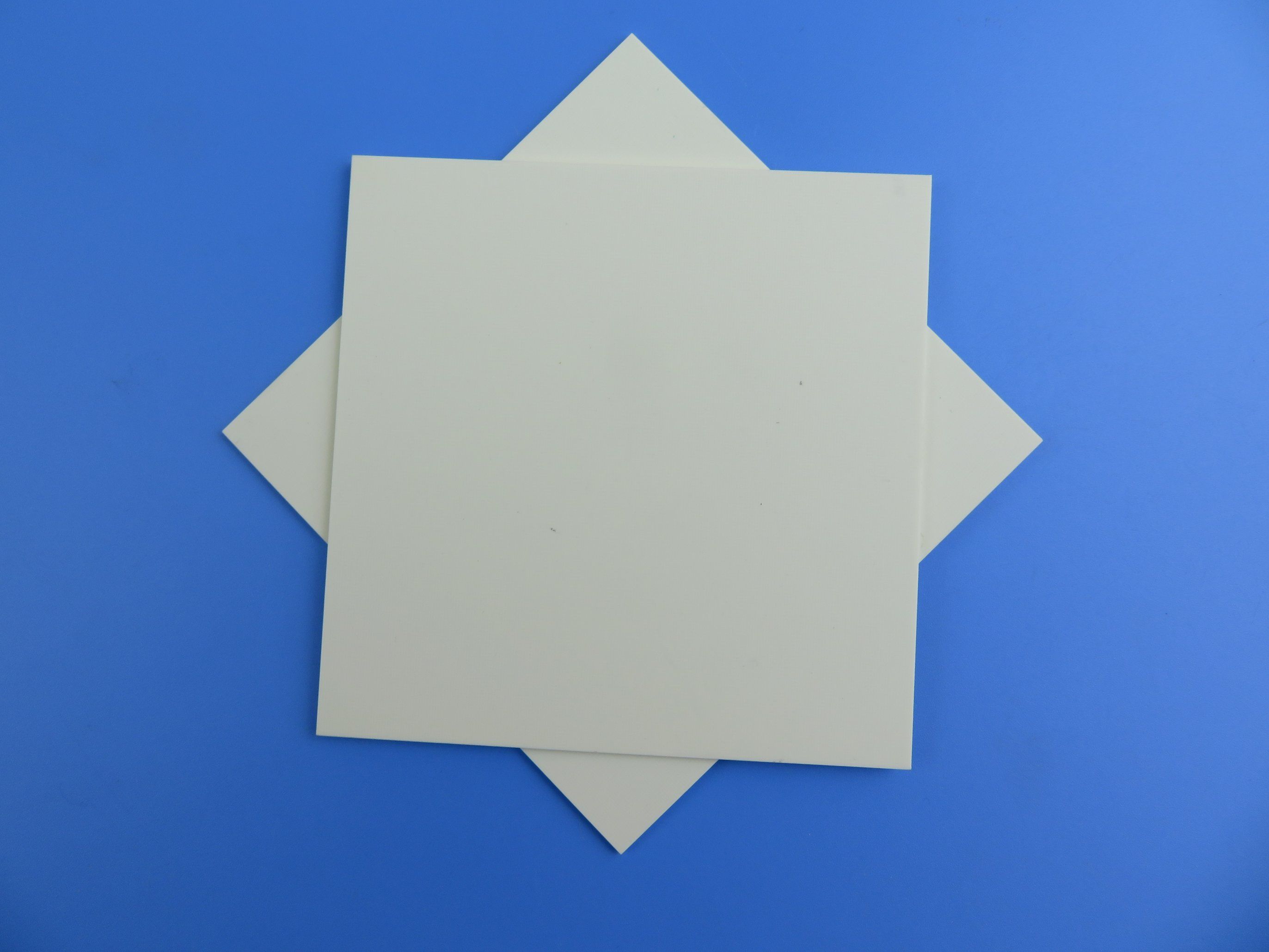

This is a type of double sided high frequency PCB spacer built on RO4350B substrate with
Tg 280°C for the application of mixer. It's 1.50 mm thick without solder mask, without silksc
-reen and without surface finish. The base material is used from Rogers Corp., entire board
supplying 1 up. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each
25 boards are packed for shipment.
1.2 Features and benifits
A. No corrosion in acids, alkali and aqua regia;
B. Tg > 280 ºC;
C. Stable electrical properties verus frequency;
D. Engineering design prevents problems from occurring in pre production;
E. Electrical test and high voltage test;
F. Impedance control test and solder-ability test;
G. International approvals;
H. Great customer service;
I. Diversified shipping method;
1.3 Application
Mixer, Radar data acquisition converter, Radio frequency, RF transceiver
1.4 Parameter and data sheet| PCB SIZE | 100 x 100mm=1PCS |
| BOARD TYPE | Blank Substrate |
| Number of Layers | 0 layers |
| Surface Mount Components | NO |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 0 um(0 oz) |
| RO4350B 1.524mm |
| copper ------- 0 um(0 oz) |
| TECHNOLOGY | |
| Minimum Trace and Space: | N/A |
| Minimum / Maximum Holes: | N/A |
| Number of Different Holes: | N/A |
| Number of Drill Holes: | N/A |
| Number of Milled Slots: | N/A |
| Number of Internal Cutouts: | N/A |
| Impedance Control: | N/A |
| Number of Gold finger: | N/A |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B Tg280ºC, er<3.48, Rogers Corp. |
| Final foil external: | N/A |
| Final foil internal: | N/A |
| Final height of PCB: | 1.6 mm ±10% |
| PLATING AND COATING | |
| Surface Finish | N/A |
| Solder Mask Apply To: | N/A |
| Solder Mask Color: | N/A |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | N/A |
| Manufacturer Name or Logo: | N/A |
| VIA | N/A |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | N/A |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
