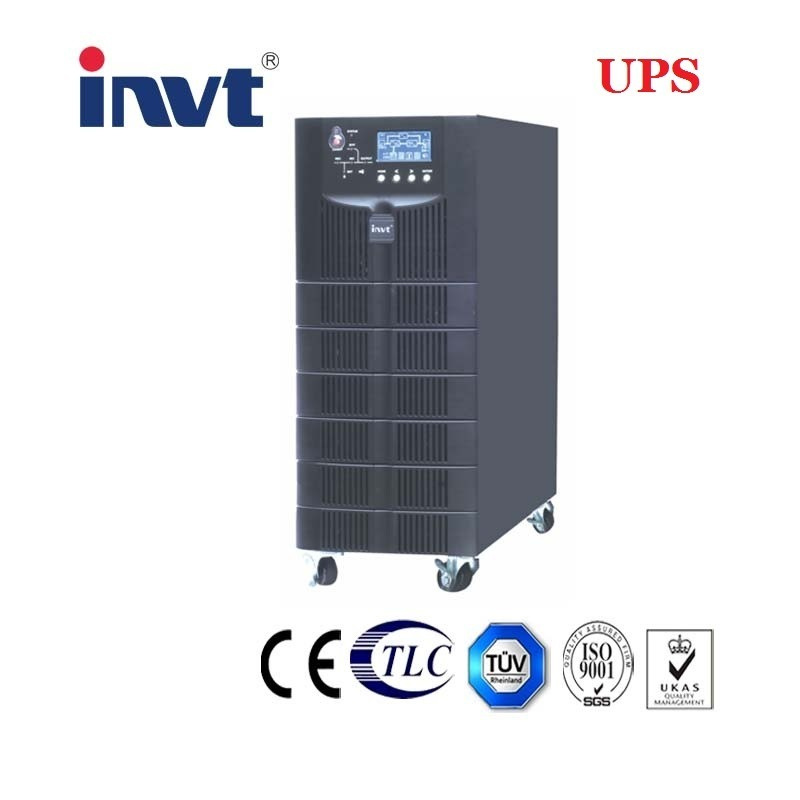

Prod Model: |
HT1110L-TX |
Capacity: |
10kVA |
Input Voltage Range: |
From 50% to 125% |
Input PF: |
0.99 |
Input Frequency Range: |
From 40Hz to 70Hz |
Output PF: |
0.8 |
Output Voltage: |
110/220VAC |
Voltage Regulation: |
1% |
Battery Voltage: |
192VDC |
Display: |
LED+LCD |
Phase: |
Single Phase |
Type: |
On-line |
Protection: |
Short Circuit |
Brand: |
Invt |
Product Description

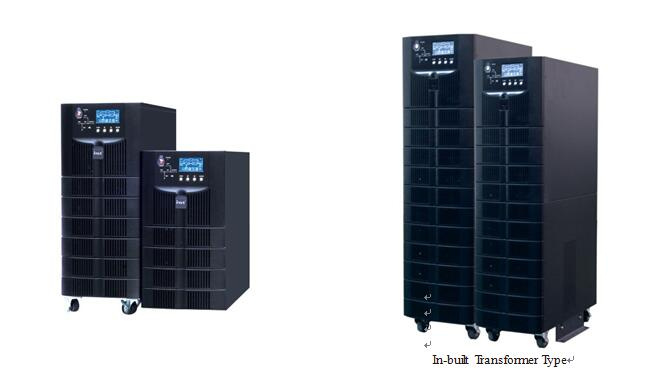

HT11 series, ranging from 6kVA to 20kVA, is online double-conversion UPS with fully DSP controlled technology. For 6kVA and 10kVA, the UPS has inbuilt output transformer for different application.
With high input and output power factor, self-adjusting output frequency and network management, HT11 is perfect choice for computers, telecommunication equipments and other sensitive devices.Application
IDC(Internet Dater Center),network,servers and workstations,office etc
Features
Wide range of input voltage and high input power factor
Output PF of 0.9
Full protection of overvoltage, circuit short and over temperature
LCD display, monitoring all the operation status
Auto fan speed adjustment
Abundant interface:RS232,USB, SNMP, Intelligent Card
Inbuilt output transformer
Specification
MODEL | HT1106S HT1106L | HT1110S HT1110L | HT1115L | HT1120L | HT1106S-TX HT1106L-TX | HT1110L-TX |
Capacity | 6kVA | 10kVA | 15kVA | 20kVA | 6kVA | 10kVA |
Phase | Single phase in,Single phase out | Two phase in, two phase out |
Input Voltage Range | 50%-125%(220VAC/230VAC/240VAC) |
100% load@80%-125%; 90% load@70%-80% 80% load@60%-70%; 65% load@50%-60% |
Input PF | ≥0.99 | ≥0.98 | ≥0.99 |
Input Frequency Range | 40Hz-70Hz |
Output PF | 0.9 | 0.8 |
Output Voltage | 220V/230V/240V | 110/220VAC |
Voltage Regulation | ±1% | ±2% |
THDu | ≤1%(full linear load) ; ≤5% (none-linear load) | ≤1%(full linear load) ;≤5%(none-linear load) |
Battery Voltage | 192VDC |
Battery Type/Number | 12V,7Ah*16 | 12V,9Ah*16 | External | External | 12V,7Ah*16 | External |
External | External | External |
System Efficiency | Normal mode:93%; ECO mode:98%; Battery mode:92% | Normal mode:93.5%; ECO mode:98%; Battery mode:92% | Normal mode:88%; ECO mode:93%; Battery mode:87% |
Noise(1 meter away) | <48dB@<70%load; <58dB@>70%load | <48dB@<70%; load;60dB@>70%load | <48dB@<70%load; <60dB@>70%load |
Overload Capability (Inverter mode) | 110%:for 10 min ; 130%:for 1min ; 150%:for 30 sec (shut down the bypass after 1 min) |
Overload Capability (Battery mode) | 110%: Shutdown after 10mins; 125%:Shutdown after 10s; >125%: Shutdown after 1s |
Crest Ratio | 3:1 |
Display | LED+LCD |
Interface | Standard:RS232,EPO Optional: SNMP, USB, Dry Contactor(AS400),Parallel Kit, ECO Kit, External Battery Cable(standard model), Maintenance Bypass, Maintenance Bypass Detecting Kit |
W*D*H(mm) | 250*562*650 250*504*480 | 250*562*650 250*504*480 | 250*562*650 | 250*562*710 | 250*504*945 250*504*945 | 250*504*885 |
Net Weight(Kg) | 59 | 65 | 27 | 34 | 104 | 78 |
18 | 20 | 65 |
As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.
The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.
INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
