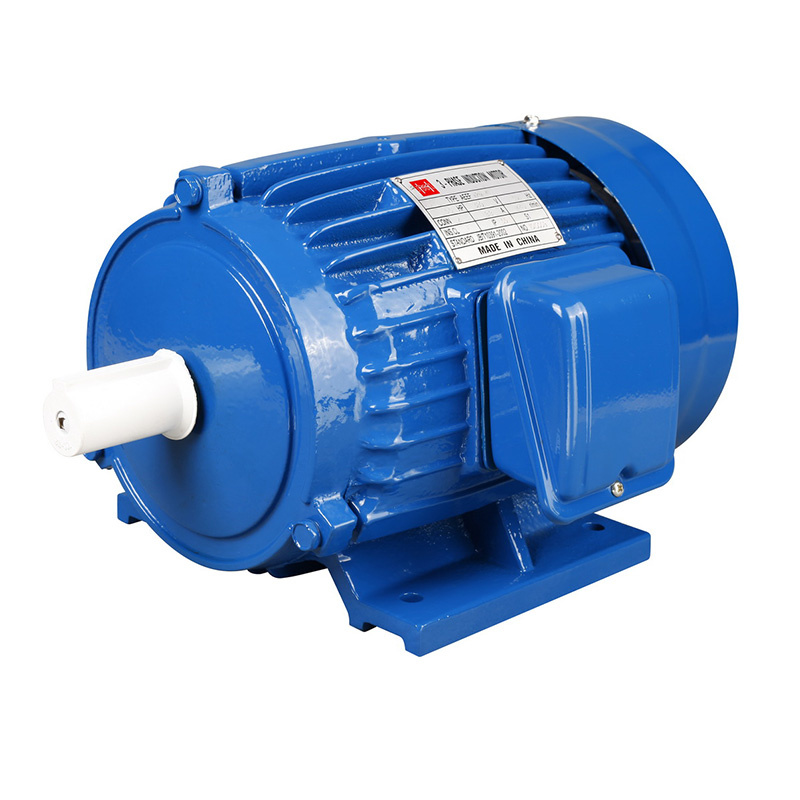

IEC Standard Three-Phase Induction Motor

Name: IEC Standard Three-Phase Induction Motor
Brand: all-electronics-online.com
SKU: 801666995
Availability: InStock
Rating: 4.8 (38 reviews)

Price:	US $ 58/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Installation size and overall dimension:

OUtput(HP)			Frame No.	Fig.No.	A	AA	AB	AC	AD	B	BB	C	D	E	ED	F	G	GA	H	HA	HD	K	L
2P	4P	6P	Frame No.	Fig.No.	A	AA	AB	AC	AD	B	BB	C	D	E	ED	F	G	GA	H	HA	HD	K	L
1/4	1/4	-	63	1	100	28.0	120	144	134	80	100	40	11	23	10	4	8.5	12.5	63	8.0	135	7	209
1/2	1/2	1/4	71		112	35.5	140	160	142	90	115	45	14	30	14	5	11.0	16.0	71	8.0	151	7	239
1	1	1/2	80		125	35.5	155	175	163	100	130	50	19	40	25	6	15.5	21.5	80	9.0	168	10	272
2 3	2	1	90L		140	35.5	170	194	173	125	150	56	24	50	32	8	20.0	27.0	90	10.0	187	10	322
-	3	2	100L	2	160	45.0	195	210	187	140	175	63	28	60	40	8	24.0	31.0	100	12.5	243	12	363
5	5	3	112M		190	45.0	224	230	205	140	175	70	28	60	40	8	24.0	31.0	112	14.0	265	12	382
7½ 10	7 ½	5	132S		216	45.0	250	266	223	140	175	89	38	80	56	10	33.0	41.0	132	16.0	310	12	446
-	10	7½	132M		216	45.0	250	266	223	178	212	89	38	80	56	10	33.0	41.0	132	16.0	310	12	484
15 20	15	10	160M	3	254	50.0	300	324	265	210	250	108	42	110	80	12	37.0	45.0	160	18.0	377	15	604
25	20	15	160L		254	50.0	300	324	265	254	300	108	42	110	80	12	37.0	45.0	160	18.0	377	15	648
30	-	-	180M		279	75.0	355	360	301	241	297	121	48	110	80	14	42.5	51.5	180	20.0	421	15	687
-	25 30	20	180M	4	279	75.0	355	360	301	241	297	121	48	110	80	14	42.5	51.5	180	20.0	421	15	687
40	-	-	180L	3	279	75.0	355	360	301	279	335	121	55	110	80	16	49.0	59.0	180	20.0	421	15	725
-	40	25 30	180L	4	279	75.0	355	360	301	279	335	121	55	110	80	16	49.0	59.0	180	20.0	421	15	725
50 60	-	-	200L		318	80.0	400	400	334	305	365	133	55	110	80	16	49.0	59.0	200	25.0	469	19	798
-	50 60	40 50	200L		318	80.0	400	400	334	305	365	133	60	140	110	18	53.0	64.0	200	25.0	469	19	798
75	-	-	225S		356	90.0	450	458	382	286	375	149	55	110	80	16	49.0	59.0	225	30.0	524	19	806
-	75	60	225S		356	90.0	450	458	382	286	375	149	65	140	110	18	58.0	69.0	225	30.0	524	19	806

Note: 1 .Tolerance of shaft end diameter D:Φ11 - Φ28:j6,Φ38- 48:K6,Φ55-Φ95:m6 2.Tolerance of shaft center height H:^0_-0.5

OUtput(HP)			Frame No.	Fig. No.	Shaft Extension
2P	4P	6P	Frame No.	Fig. No.	AC	AD	L	M	N	P	S	T	D	E	ED	F	G	GA
1/4	1/4	-	63	1	144	134	2S8	130	110	160	10	3.5	11	23	10	4	8.5	12.5
1/2	1/2	1/4	71	1	160	142	266	130	110	160	10	3.5	14	30	14	5	11.0	16.0
1	1	1/2	80	2	175	163	272	165	130	200	12	3.5	19	40	25	6	15.5	21.5
2 3	2	1	90L	1	194	173	361	165	130	200	12	3.5	24	50	32	8	20.2	27.0
-	3	2	100L	2	210	187	363	215	180	250	15	4	28	60	40	8	24.0	31.0
5	5	3	112M	3	230	205	422	215	180	250	15	4	28	60	40	8	24.0	31.0
7½ 10	7 ½	5	132S	2	266	223	446	265	230	300	15	4	38	80	56	10	33.0	41.0
-	10	7½	132M	2	266	223	484	265	230	300	15	4	38	80	56	10	33.0	41.0
15 20	15	10	160M	4	S24	265	604	300	250	350	19	5	42	110	80	12	37.0	45.0
25	20	15	160L		324	265	648	300	250	350	19	5	42	110	80	12	37.0	45.0
30	-	-	180M		360	S01	687	350	300	400	19	5	48	110	80	14	42.5	51.5
-	25 30	20	180M		360	301	687	350	300	400	19	5	48	110	80	14	42.5	51.5
40	-	-	180L	5	360	S01	725	350	300	400	19	5	55	110	80	16	49.0	59.0
-	40	25 30	180L	5	360	301	725	350	300	400	19	5	55	110	80	16	49.0	59.0
50 60	-	-	200L	6	400	S34	798	400	350	450	19	5	55	110	80	16	49.0	59.0
-	50 60	40 50	200L		400	334	798	400	350	450	19	5	60	110	110	18	53.0	64.0
75	-	-	225S		458	S82	806	500	450	550	19	5	55	110	80	16	49.0	59.0
-	75	60	225S		458	382	836	500	450	550	19	5	65	140	110	18	58.0	69.0

Prod Model:	AEEF
Rated Frequency:	50Hz, 60Hz
Rated Voltage:	380V or Any Voltage Between 220V-760V
Protection Class:	IP44, IP54, IP55
Cooling Method:	IC0141
Duty:	S1(Continuous)
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Variable Frequency Starting
Species:	Induction Motor
Number Of Poles:	2, 4, 6
Brand:	Tongbo
