| Prod Model: |
JY |
| Frequency: |
50Hz |
| Protection Class: |
IP44 |
| Cooling Method: |
IC0141 |
| Duty: |
S1(Continuous) |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Single-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Variable Frequency Starting |
| Brand: |
Tongbo |
| Species: |
Jy Series |
Product Description

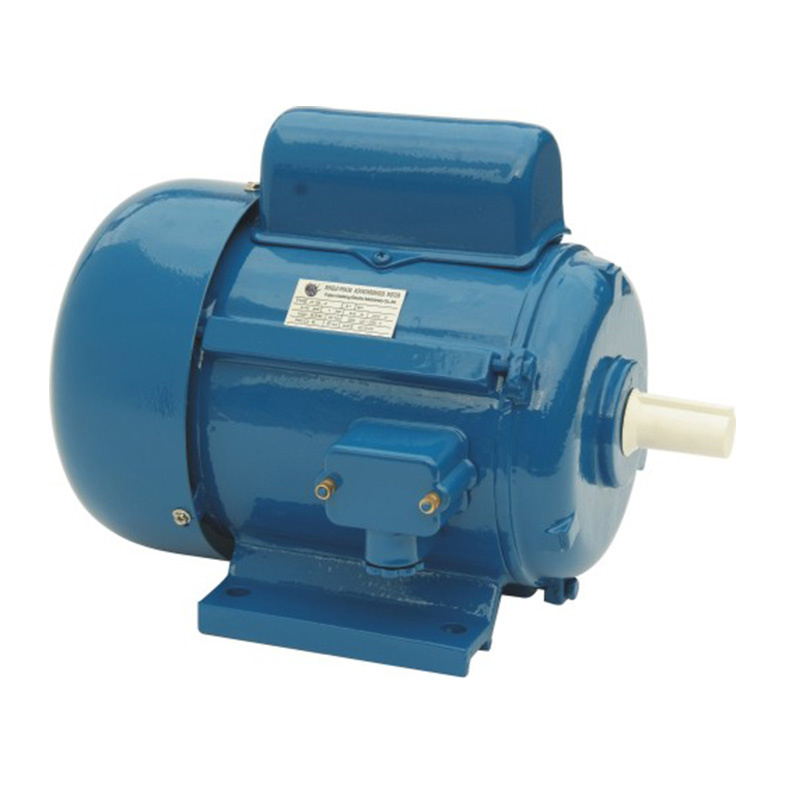

Introduction:JY series single-phase capacitor start asynchronous motor, suitable for the occasion where have a large starting torque, but also have certain restrictions on the starting current, can be widely used in air compressor, refrigerator, medical equipment and various needs of full load starting small machinery
This series motors are totally enclosed fan cooled, 09, 1, 2 and three seat no.. According to the need can be made of cast aluminum or cast iron two.
Protection type:IP44
Insulation calss:B
Cooling type:Ic0141
Rated frequency:50Hz
Operating conditions:Ambient temperature:-15
ºC<
θ<40ºC
Altitude: not exceed 1000mRated voltage:110V,115V,120V,220V,230V,240VRated frequency: 50Hz or 60HzProtection class:IP44,IP54Insulation class: B,FCooling method: IC0141Duty:S1(continuous)Installation size and overall dimension:| Frame Size | Mounting Dimensions(mm) | Frame Dimensions(mm) |
| A | B | c | D | E | F | G | H | K | M | N | P | R | s | T | AB | AC | AD | HD | L |
| 09 | 125 | 100 | 50 | 14 | 30 | 4 | 11.5 | 80 | 10 | 85 | 70 | 105 | 0 | M8 | 3 | 156 | 156 | 108 | 190 | 258 |
| 1 | 140 | 100 | 56 | 16 | 40 | 5 | 13 | 90 | 10 | 100 | 80 | 120 | 0 | M8 | 3 | 176 | 176 | 121 | 220 | 286 |
| 2 | 160 | 112 | 63 | 19 | 40 | 6 | 15.5 | 100 | 12 | 115 | 95 | 140 | 0 | M8 | 3 | 190 | 190 | 128 | 246 | 330 |
Technical date:| Frame Size | Model | Output | Speed(r.p.m) | Eff.(%) | Power factor (cos CD) | Tst/Tn | |
| KW | HP |
| 9 | JY09A-2 | 0.25 | 1/3 | 2800 | 63 | 0.72 | 2.5 | 1.8 |
| JY09B-2 | 0.18 | 1/4 | 2800 | 60 | 0.72 | 2.5 | 1.8 |
| JY09A-4 | 0.18 | 1/4 | 1400 | 56 | 0.62 | 2.5 | 1.8 |
| 1 | JY1A-2 | 0.55 | 3/4 | 2800 | 66 | 0.72 | 2.5 | 1.8 |
| JY1B-2 | 0.37 | 1/2 | 2800 | 66 | 0.72 | 2.5 | 1.8 |
| JY1A-4 | 0.37 | 1/2 | 1400 | 64 | 0.62 | 2.5 | 1.8 |
| JY1B-4 | 0.25 | 1/3 | 1400 | 60 | 0.62 | 2.5 | 1.8 |
| 2 | JY2A-2 | 1.1 | 1.5 | 2850 | 71 | 0.77 | 2.5 | 1.8 |
| JY2A-4 | 0.75 | 1 | 1400 | 69 | 0.68 | 2.5 | 1.8 |
| JY2B-2 | 0.75 | 1 | 2850 | 70 | 0.75 | 2.5 | 1.8 |
| JY2B-4 | 0.55 | 3/4 | 1400 | 67 | 0.68 | 2.5 | 1.8 |
